Features
(3) Support H.265/HEVC, H.264/AVC, AVS, AVS+, AVS2 (optional) encoding
(4) Support MPEG-1 layer 2, MPEG-1 layer 3, LC-AAC, HE-AAC, AC3, EAC3 audio encoding format
(5) Support 10GBE or 25GBE SFP fiber interface input
(6) Support SMPTE ST2110 standard protocol input, including SMPTE ST2110-10/20/30/40
(7) Support SPTS, MPTS over UDP, FLV over RTMP, HLS over HTTP transmission stream IP input
(8) Support UDP, RTP, RTSP, RTMP, HTTP, SRT network protocol output
(9) Support the output video stream delay settings, delay time 0-120 seconds custom
(10) Support internal multiplexer, which can multiplex SPTS program stream after multiplexing and transcoding into MPTS program stream
(11) Support two gigabit ethernet ports, can be flexible configuration of IP program input and output physical channels
(12) Support 10bit HDR
(13) Support picture, caption overlay, multi-screen splicing and other software functions customization
(14) Support GOP length, GOP structure and bit rate control buffer settings
(15) Support CBR, VBR rate control mode
(16) Stable operation of the equipment, supporting 7x24 hours uninterrupted work
Introduction

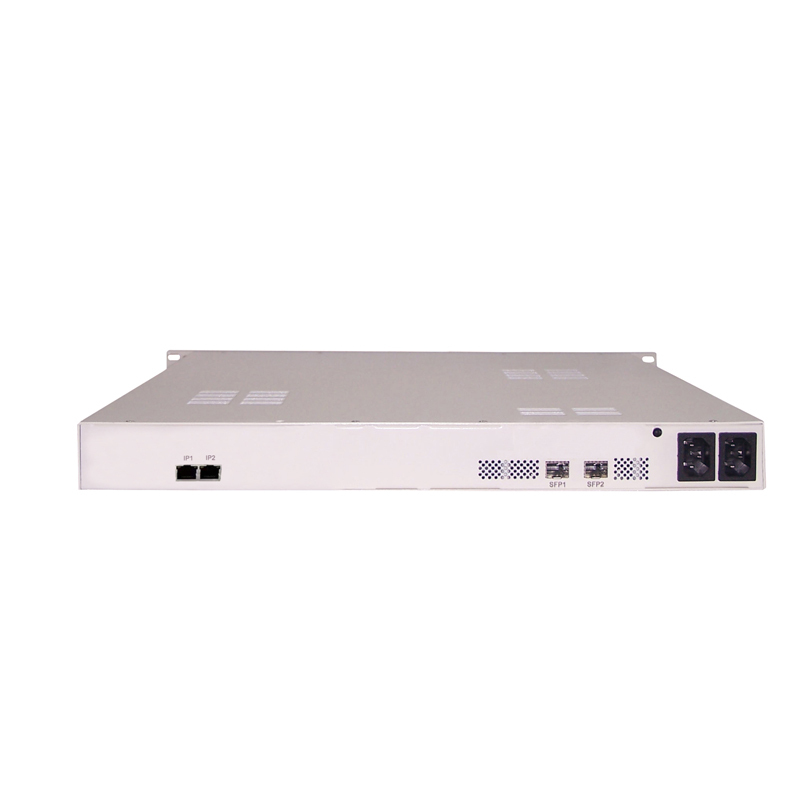

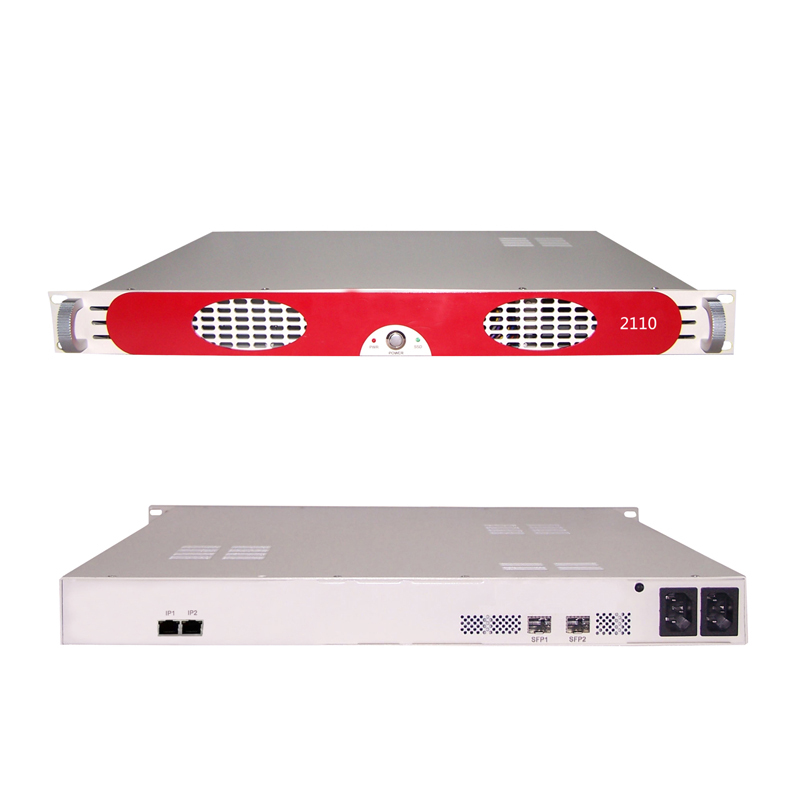

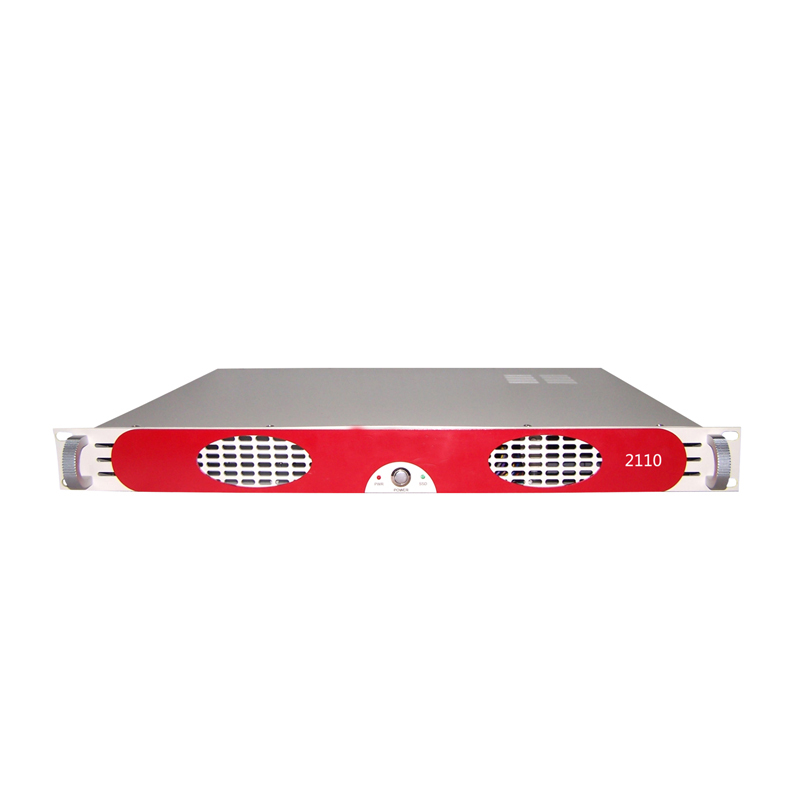

YDSENC2110 Series ST2110 H.265 8CH HD Video Encoder Transcoder adopts standard 1U chassis structure, is a high quality broadcast audio and video real-time encoder transcoder product. This product not only has the traditional H.264/AVC video encoding and transcoding ability, but also supports the latest international video standard H.265/HEVC and China's independent intellectual property rights video standard AVS+, AVS, AVS2 (optional) encoding format.
ST2110 H.265 8CH HD Video Encoder Transcoder can compress the uncompressed IP stream of ST2110 protocol into any of the above video encoding formats in real time through the powerful CPU+GPU cocoding module, and can also convert 8-channel HD IP stream, or 8-channel SD IP stream in real time.
Technical Specifications
| IP input | |
| Standard | ST2110 |
| Channel | 8-channel HD uncompressed IP stream |
| Resolution | 1080p60/50/30/25 1080i60/50 720p60/50/30 576p25, 480p30 576i50, 480i60 |
| Interface | 10GBE or 25GBE SFP fiber optic interface |
| Video encoding | |
| Video encoding format | H.265/HEVC, H.264/AVC, AVS+, AVS, AVS2 (optional) |
| Bit rate | 1.0Mbps~200.0Mbps |
| Rate control | CBR, VBR |
| Video pretreatment | De-interleaving |
| Audio encoding | |
| Audio encoding format | MPEG-1 layer 2, MPEG-1 layer 3, LC-AAC, HE-AAC, AC3, EAC3 |
| Sampling rate | 48KHz, 44.1KHz, 32KHz |
| Channel | Mono, stereo, 5.1, 7.1 surrounding stereo sound |
| Bit rate | 64Kbps~1024Kbps |
| IP stream input | |
| Input interface | RJ45 |
| Rate | 1000Mbps |
| Stream encoding format | H.265/HEVC, H.264/AVC, AVS, AVS+, AVS2 (optional) |
| Network protocol | UDP, RTP, RTSP, RTMP, HTTP, SRT |
| Transport stream format | SPTS, MPTS, FLV, HLS |
| IP stream output | |
| Output interface | RJ45 |
| Rate | 1000Mbps |
| Stream encoding format | H.265/HEVC, H.264/AVC, AVS, AVS+, AVS2 (optional) |
| Network protocol | UDP, RTP, RTSP, RTMP, HTTP, SRT |
| Transport stream format | SPTS, MPTS, FLV, HLS |
| Control | |
| Management | Web-based remote network management software |
| Physical | |
| Dimension(H×W×D, mm) | 44×433×498(mm) |
| Operation temperature | 0-50℃ |
| Relative humidity | 0-95%, non-condensing |
| Power supply | 130-260VAC, 50/60Hz |
