With the development of wide band and popularization of intellectualized service, digital TV service becomes diversified day by day with integrating live programs, entertainment, games, travel and business in one system. Hospitals, hotels and operators can only increase their brand visibility and customer satisfaction by providing more multimedia service and more enjoyable experience.

KUNUOMAGIC IPTV hotel Hospital system is open, compatible and easy to dock with the original hotel system. It provides the Live TV, VOD, room Service, Food and Beverage Service and other value-added services. KUNUOMAGIC can also design system as per customers’ special requirements.

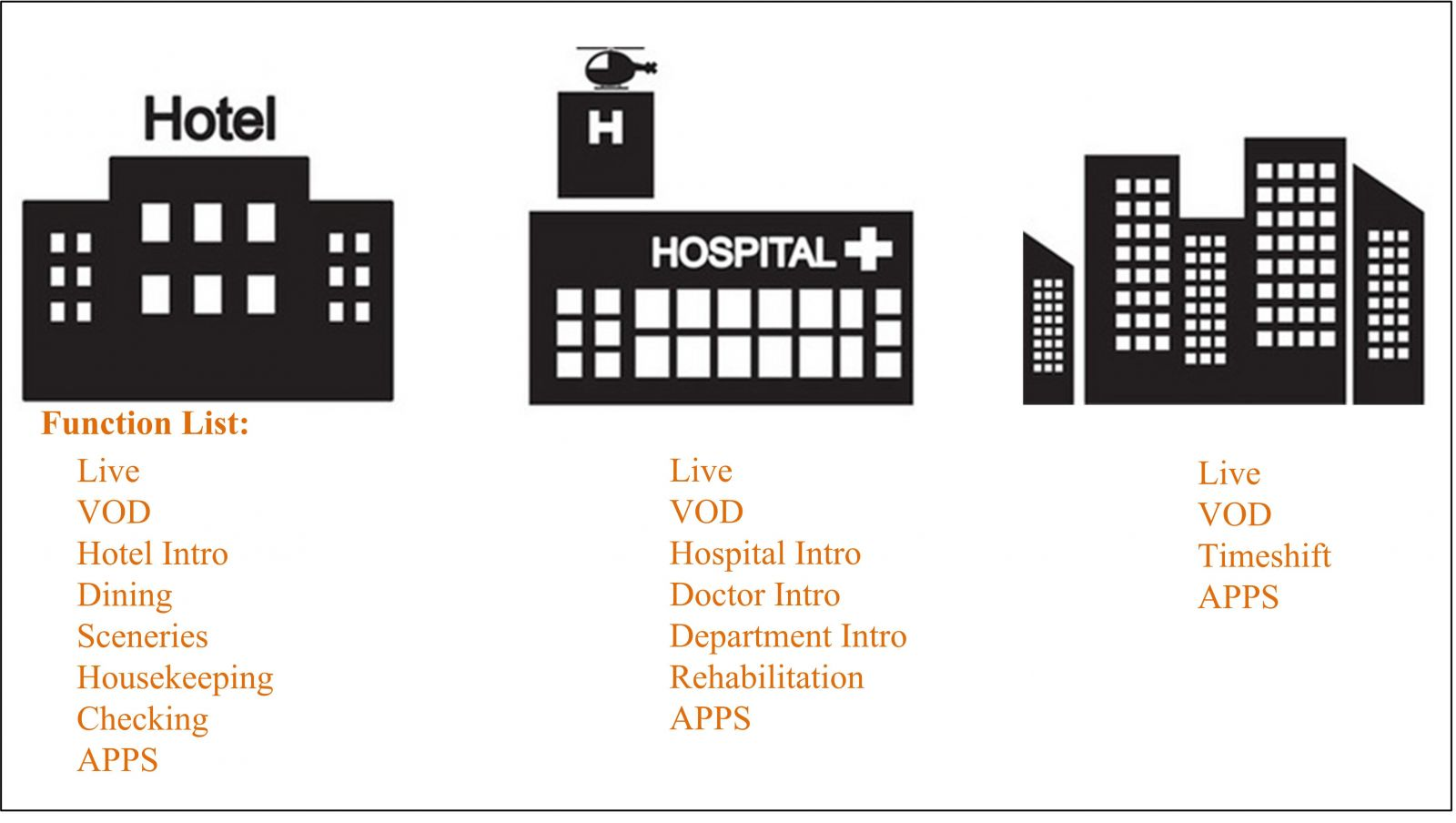

Functions

Advantages

Live Channel/Playback

Support HD/SD cable channel, satellite channel and hotel self-made channel broadcast
Support playback shifted live channel, shifting duration can be customized

VOD

Support up to 1080P/60Hz full HD video
Support hardware decoding, play HD videos smoothly
Classify movie files, convenient for selecting

Advertisement System—Value added Services

Hotel or hospital owners can set up advertisement business to increase revenues.
Ad modes include booting ad, VOD ad, pictures and text ad etc

Mass HD Programs

Support 1080P/60Hz full HD video
Mass resource of Video on Demand including movies, entertainments, factual shows and etc

CAS (Conditional Access System)

Our conditional access system gives the customer choice over pay channels and which prevent unauthorized access.

PMS integration

Support IPTV system integrate with hotel hospital PMS

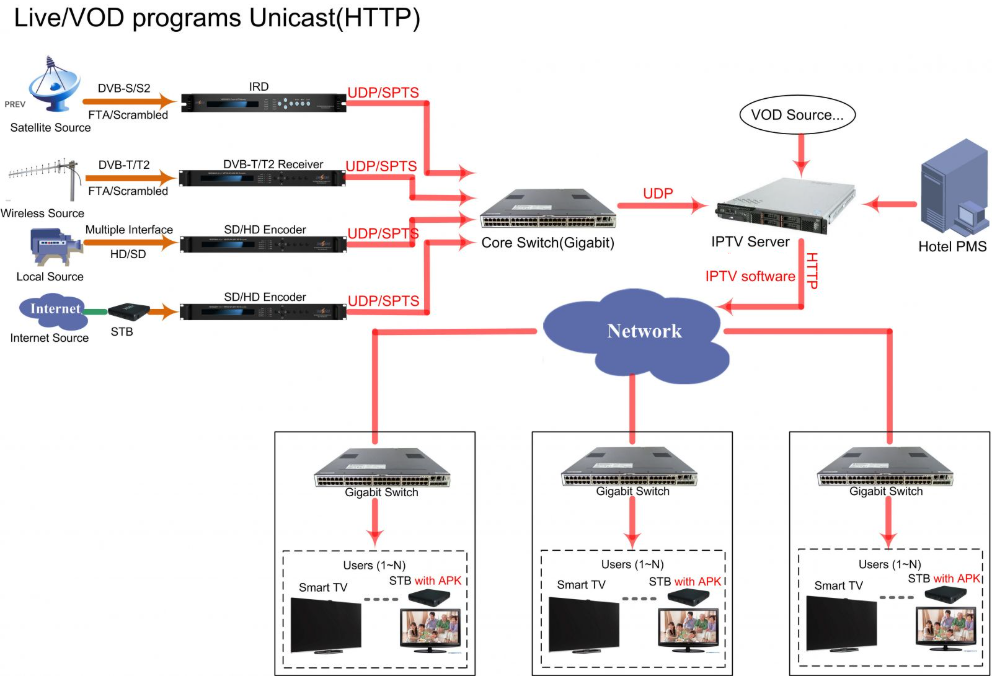

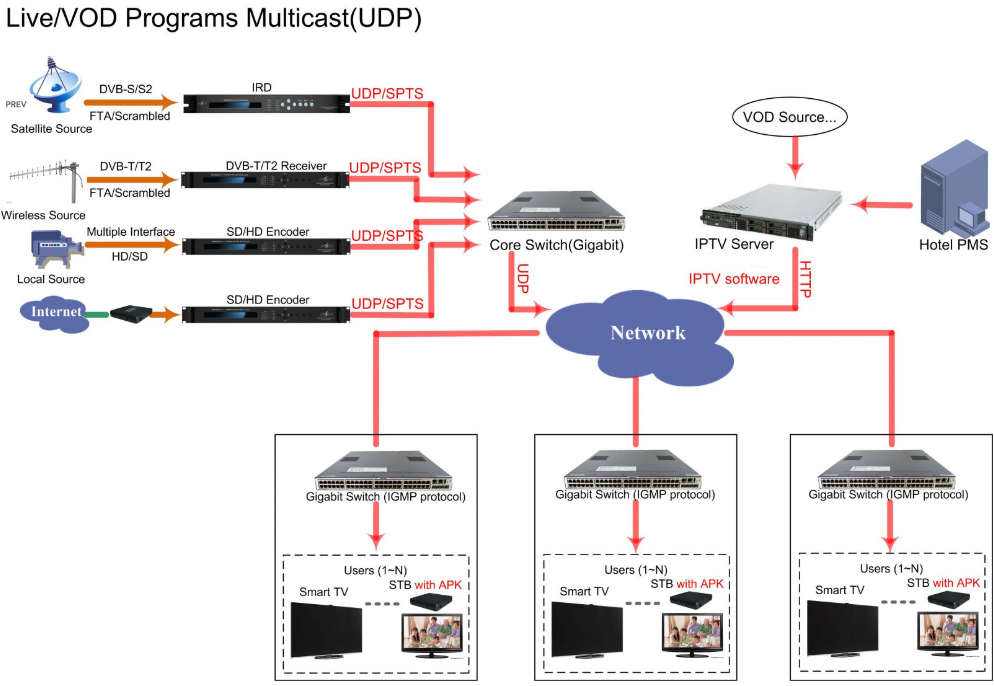

Solution Map

IPTV Server Recommended configuration

Number of STB	Server Configuration			Switch	Remarks
300≤	IPTV Server：Dell730	CPU: Xeon E5-2609 v3 Memory:16G Network: Four-port Gigabit NIC Storage：configure as needed (suggest 1T above)	1 set	Gigabit	If the UDP protocol is adopted in live services, switches of access layer should support IGMP protocol.
500≤	IPTV Server：Dell730	CPU: Xeon E5-2640 v4 Memory:32G Network: Four port Gigabit NIC Storage：configure as needed (suggest 1T above)	1 set	Gigabit	(1) If the system has high requirements for VOD services and video playback services, like online VOD is with over 300 terminals, it is strongly suggested to configure a storage server. (2) If the UDP protocol is adopted in Live services, Switches of Access Layer should support IGMP protocol.
500≤	IPTV Storage Server：OceanStor S2200T	Cache：16G Storage：configure as needed	1 set (Optional)	Gigabit
＞500	IPTV Server：Dell730	CPU: Xeon E5-2640 v4 Memory:32G Network: Four port Gigabit NIC Storage：configure as r needed (suggest 1T above)	1 set	Gigabit Switches and Switches of Access Layer should support IGMP protocol	If the system has high requirements for VOD services and video playback services, like online VOD is with over 300 terminals, it is strongly suggested to configure a storage server. The specific model should consult storage server supplier.
＞500	IPTV Storage Server	Storage：configure as needed	1 set (Optional)
