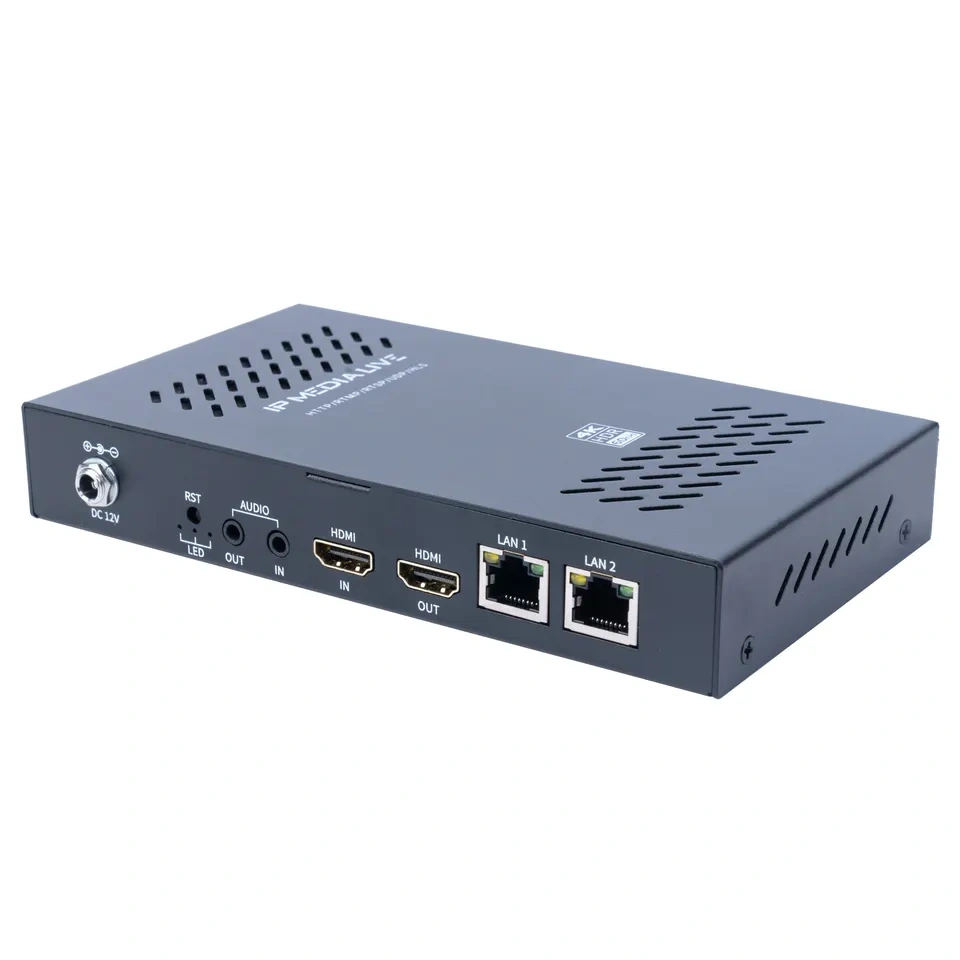

1channel up to 4K-4096*2160 60fps HDMI input, 1channel audio input.1 channel audio output
2channels IP output（Lan2 for data,Lan1 for MGR）
Dual streams output:4K 60FPS +1080 60FPS
Support HDMI 2.0,HDCP 2.2,HDR
H.265/ H.264 format, Audio: MP3, AAC, G711 format.
Configuration could be freely adjusted according to the need.
Support SRT/HTTP / RTSP / RTP/ TCP / RTMP / RTMPS/ UDP / ONVIF / HLS protocols.
Red indicator: power. Yellow: Streaming status. Green: Network

Key features

Resolution:4096*2160/3840*2160/2560*1600/2560*1440/2048*1152/1920x1080/1680*1056/1280x720/720*576/640*480
Supports WINDOWS ,LINUX and MAC OS
Support SRT/ RTSP/ RTP/ RTMP/ RTMPS/ HTTP/ ONVIF/ HLS/ UDP unicast and multicast protocol
Support Main TS stream and the sub TS stream use in different protocol.
Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )
Coding Standard: Base line profile/ main profile/high profile（LEVEL 5.1）, H.265 main profile LEVEL 5.0
Audio: MP3, AAC, G.711, sampling rate: 32000,44100, 320000 etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
Video bitrate Control: CBR / VBR 16KBIT/S ~ 50MBIT / S
Video packaging: A mode: FFMPEG, B mode: VLC
Transmission: TCP, UDP, 100M for configuration. 1000M for transmission (RJ45 Duplex network port)
Support Text/ image OSD, images superimposing.
Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
Support encoding without video signal;
Low power consumption design.
