With optical input AGC function，AGC range -5~-15dBm Anti-high frequency surge protection GaAs amplifier tube. Low-power design, high-efficiency switching power supply ensures high reliability and high stability of the power supply. The overall power con

GET A QUOTE

Description

High quality plastic shell, through hole design on both sides, with good heat dissipation.

RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception.
With optical input AGC function，AGC range -5~-15dBm
Anti-high frequency surge protection GaAs amplifier tube.
Low-power design, high-efficiency switching power supply ensures high reliability and high stability of the power supply. The overall power consumption is only 2W, with optical detection circuit.
SC/APC & SC/PC&FC/APC&FC/PC optical connectors, custom male or fe-male RF connector;
Multi-stage lightning protection device (TVS transient suppression diode), lightning protection system is tight, ensuring the safe operation of the equipment;

nApplications

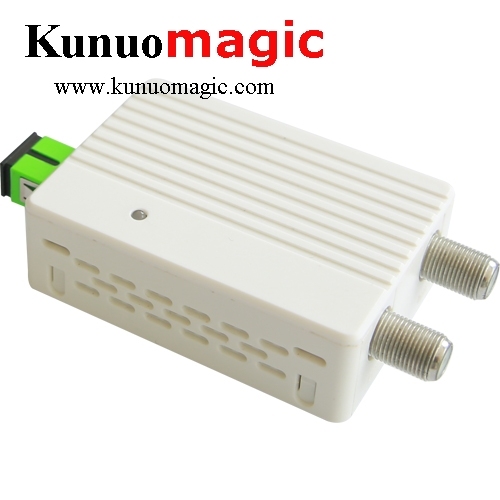

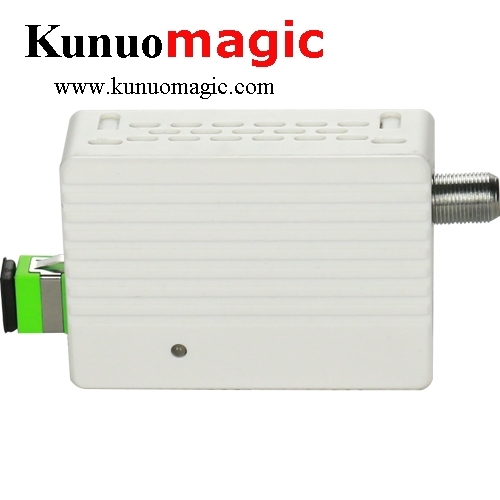

The FTTH-YDS18B series optical terminal is a home-use optical receiver for FTTH (Fiber to the Home) network optical fiber access terminals to enable analog or digital signals to enter the home. The machine uses low-power photodetectors, GaAs and optical AGC technology to meet the fiber-to-the-home CATV reception needs.

Technical parameters

Technical parameters	FTTH-YDS18B
Wavelength	1100~1600nm&1550nm
Optical input power	+2dBm~-18dBm
Return loss	＞45 dBm
Optical connector	SC/APC&SC/PC
Bandwidth	47~1006MHz
Flatness	±1@47~1006MHz
RF output loss	≥16dB@47~550MHz ≥14dB@550~1006MHz
Output level Pin@0dBm	≥77dBuV(1 port)	≥73dBuV(2 ports)
RF Output port	1 port or 2 ports
Output impedance	75Ω
AGC range	-5dBm~-15dBm
Carrier to noise ratio(note 1)	≥51dB
CTB(note 1)	≥65dB
CSO(note 1)	≥62dB
Equipment voltage	DC5V±0.5
Adapter voltage	AC220V or AC110V or customized
Inner feedback voltage	DC5V±0.5
Working temperature	-25℃~+45℃
Consumption	＜2W
Size	917924mm
Carton gross weight	1.2kgs(10pcs)

Note 1: 59 PAL-D analog television channel signals are allocated in 550 MHz and full-band digital modulation signals are transmitted in 550 MHz-862 MHz every 2 MHz under the specified link loss. The digital modulation signal level is

10 dB lower than the analog modulation signal level, and the optical receiver input optical power is -1 dBm. The test results will be different according to the different amplification modules of the optical receiver configuration.

nModel guide

FTTH-Series models - Into the optical connector form - RF mouth + RF connector form - Photoelectric tube type

FTTH- - - -

PIN type（5：only 1550nm，Normal type is not displayed） Output ports+Connectors（1 / 2 口 output ports optional，Male M / Female F optional）
Input connectors（SA: SC/APC; FA: FC/APC; SP: SC/PC; FP: FC/PC, customized）
FTTH-YDS18B
Example: FTTH-YDS18B-SA-2M-5
Explanation of the example: This device is FTTH-YDS18B series FTTH, the optical connector is SC/APC, 2 output, metric connector, only receive 1550
