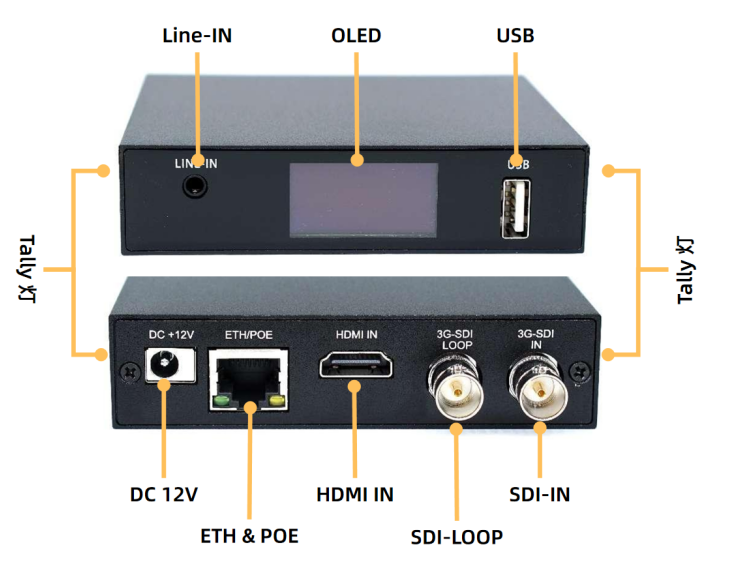

| HDMI IN: | HDMI 1.4 supports up to 4K30p, including audio. |
| SDI IN: | 3G-SDI supports up to 1080P resolution, including audio. |
| SDI Loop: | Out of loop, same as SDI IN |
| Line-IN: | 3.5mm, 48K stereo |
| USB: | USB 2.0, expandable with headsets, serial ports, etc. |
| ETH: | 10/100/1000M wired network, supports PoE |
| NDI version: | NDI 5, backward compatible |
| NDI mode: | NDI (Full NDI) |
| Encoded frame rate: | 25~60 adjustable |
| Encoding quality: | Automatic, Manual |
| Volume gain: | -12DB~+12DB |
| PTZ control: | support |
| Network protocols: | Discovery, RUDP, TCP, unicast, multicast |
| OLED: | Working status display (NDI name, IP address, resolution, etc.) |
| Tally lights: | Two-way LED red and green dual-color high brightness |
| Integrated calling: | It can make full-duplex calls with the entire LinkPi encoder product line. |
| power supply: | DC 12V 1A |
| Average power consumption: | <5W |
| Operating temperature: | -20℃~50℃ |
| size: | 100x94x24mm (excluding SDI length) |
NDI® (Network Device Interface) is an open protocol and standard developed by NewTek for connecting video devices over a network.
NDI® is mainly divided into two types: High Bandwidth NDI® (commonly known as Full NDI in China) and NDI®|HX. Both can transmit high-quality video over IP. High Bandwidth NDI® is characterized by achieving high-quality video transmission with low latency over IP, while NDI®|HX is characterized by supporting efficient video transmission under limited bandwidth.
