YNS-3004D is Kunuomagic newest professional Multi-channel ProVideo Streaming Decoder developed based on an embedded hardware platform. It integrates 4 Channel HD video decoding modules through a card-type structure. The output supports dual SDI & HDMI int

GET A QUOTE

Description

Overview:

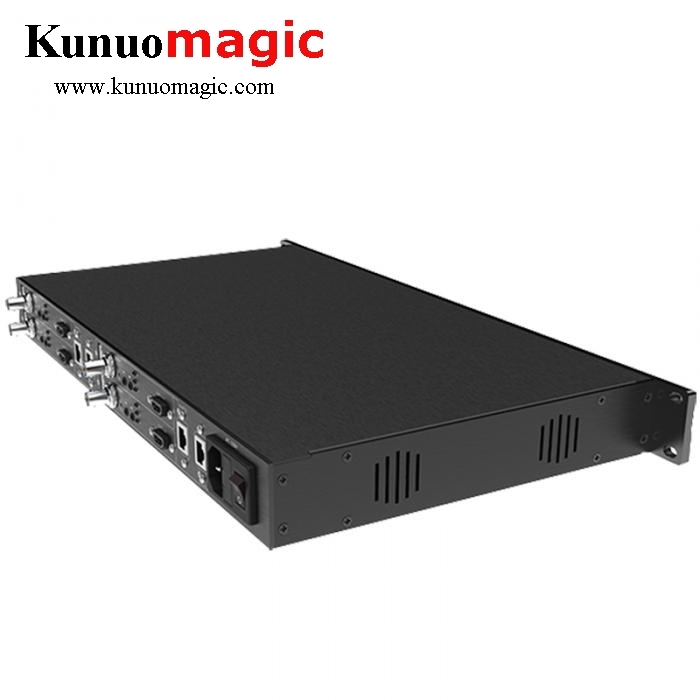

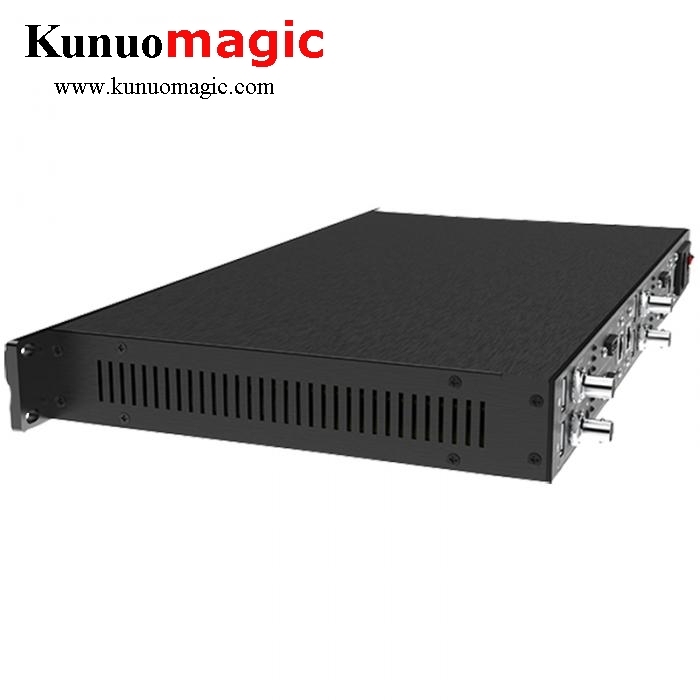

YNS-3004D is Kunuomagic newest professional Multi-channel ProVideo Streaming Decoder developed based on an embedded hardware platform. It integrates 4 Channel HD video decoding modules through a card-type structure. The output supports dual SDI & HDMI interfaces, and both interfaces can output the same content simultaneously.

YNS-3004D professional Multi-channel ProVideo Streaming Decoder can decode multiple IP streams into SDI & HDMI signal output and supports audio de-embedding output.

YNS-3004D professional Multi-channel ProVideo Streaming Decoder can provides the features of stability, reliability, excellent network agility, which makes it a new generation HD network media terminal. Besides that, with Rack-mounted designing makes this device widely used in variety of field such as Hotel IPTV system, health care, remote education, news interview etc.

Key Features:

Embedded hardware, modular structure and more stable working.

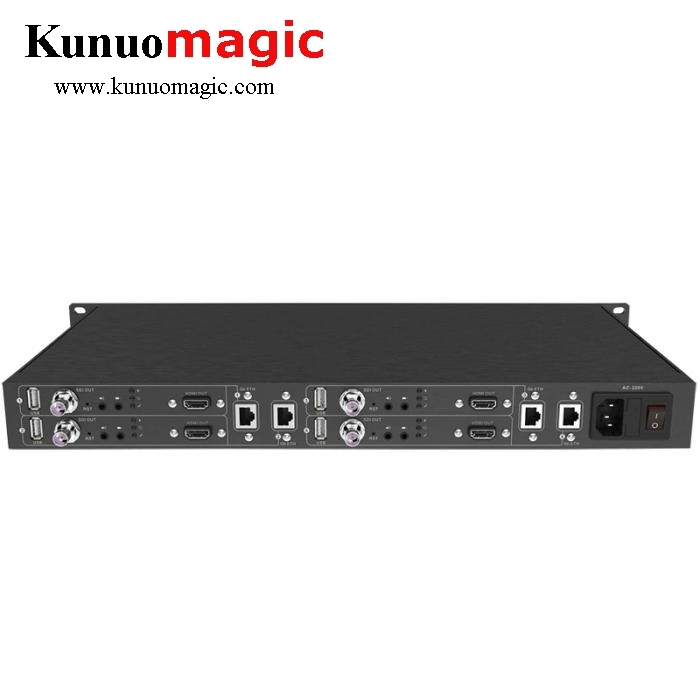

Card-type structure, each decoding module includes a network port, an SDI and an HDMI interface, a USB port, a pair of 3.5mm audio input and output ports. The modules are independent of each other and have a high error tolerance rate.

Embedded hardware decoding, no need to rely on computer decoding.

4Channel module consumes only 20W at full load, low power consumption and low heat dissipation.

High compatibility, suitable for various network transmission protocols to decoding SDI/HDMI

The input supports protocols such as RTMP/HLS/TS over UDP/RTP/RTSP/HLS, and is compatible with a variety of front-end encoding products, streaming media servers, network cameras, etc.

SRT supported to ensure secure and reliable transmission.

The output supports dual SDI/HDMI interfaces, and both interfaces can output the same content simultaneously.

The input end supports 1080P60 HD resolution, which is backward compatible, and the output end resolution is adjustable.

Sound can be output with HDMI/SDI, or independently from 3.5mm audio port.

Powerful decoding ability, it can output HD smooth image for low bit rate video and network packet loss video.

Adopting Kunuomagic proprietary image enhancement and error tolerance technology, it has strong anti-error capability, and can output clearly and without distortion for low-bit-rate encoded video and about 10% network packet loss video;

Low decoding latency, less than 200ms decoding delay in typical network environment, and the delay can be adjusted according to the network environment. Supported global live video platform (tested): YouTube, UStream, Twitch and so on.

Image scaling/frame rate conversion

Technical Specifications:

Item	Description
Video Decoding
Input: 4RJ45 Video Output:4SDI + 4HDMI 1SD/HD/3G SDI,1*DVI-I (compatible with HDMI/DVI and VGA) Video decoding: H.264/AVC
Video resolution	SDI/HDMI: Up to 1080P60Hz SDI: 1080P60/50, 1080P30/25/24, 1080I60/50, 720P60/50, 570I50, 480I60. HDMI: 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50 compatible with VESA standard format.
Delay	<200ms
Audio Decoding
SDI/HDMI embedded or 3.5mm audio output
Audio encoding: AAC/G.711
Other Functions
Working mode: 24H
Decoding ability: Up to 4CH
Management
Configuration Interface: web-based UI
Upgraded: via network
Connector: RJ45
Media protocols: SRT/RTMP/HLS/TS over UDP/RTP/RTSP
The Working Environment
Dimension	44027050mm
Power consumption	20W
Operating Temperature	0 to 45(For working), -20 to 80(For storing)
Input Voltage	AC 220V10%,50/60Hz

Applications:
Organizations, Conferences and Worship
Remote Video Conference, Internet TV
IPTV/OTT system, Live Streaming
Government, Education and Music
Video Monitoring, multimedia projects
