Overview:

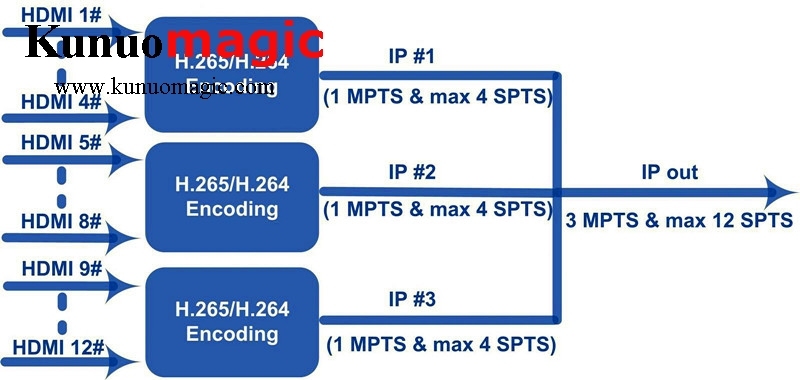

YNS-3224VH Multi-channel HD HDMI H.264/H.265 HEVC Encoder can provide up to 4/8/12 channels (each module support 4 channel, currently, max. support 3 modules) of superior quality constant bitrate CBR/VBR/AVBR/FIXQP/QPMAP HEVC/H.265, MPEG-4 AVC (H.264) with AAC(optional), AC3 Bypass and MPEG-1 L2 audio.
Very flexible configurable the number of channels inputs to plug-in HDMI board. It support 1 MPTS and 4/812 SPTS via GbE IP Port output (Unicast/multicast) Mutual mirror output. This HDMI Video encoder supports H.265 encoding, which is ideal choice for customers who need lower bit rate video transfer over LAN networks, whilst maintaining high quality video.
YNS-3224VH Multi-channel HD HDMI H.264/H.265 HEVC Encoder used to stream video and audio across any IP network, can be widely used in DTV, OTT/IPTV, Mobile TV multi-screen applications, CATV systems, monitoring systems and etc...
With it's powerful program processing capabilities and leading technology advantages, YNS-3224VH Multi-channel HDMI H.265 HEVC Encoder meets the market demands such as broadcasting, VOD, education, medical care, health center, live broadcast and so on, help to save bandwidth resources for operators, and while also providing users with a better viewing experience.
Key Features:
Video Encoding: HEVC/H.265 & MPEG 4 AVC/H.264
Audio Encoding: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough
Ultra Low Bit Rate: Save 75% Bandwidth
Enhance Picture Quality: Advanced Compressing Algorithm
Advanced Pretreatment: De-interlacing, Noise Reduction, Sharpening
OSD (Logo, QR Code) insertion—Optional as per order
Logo: support jpg/jpeg/bmp/gif/png file; drag to any position
QR code: creat QR code quickly; Add text/logo; Custom size; drag to any position
Network interface adopts 100/1000M adaptive mode
