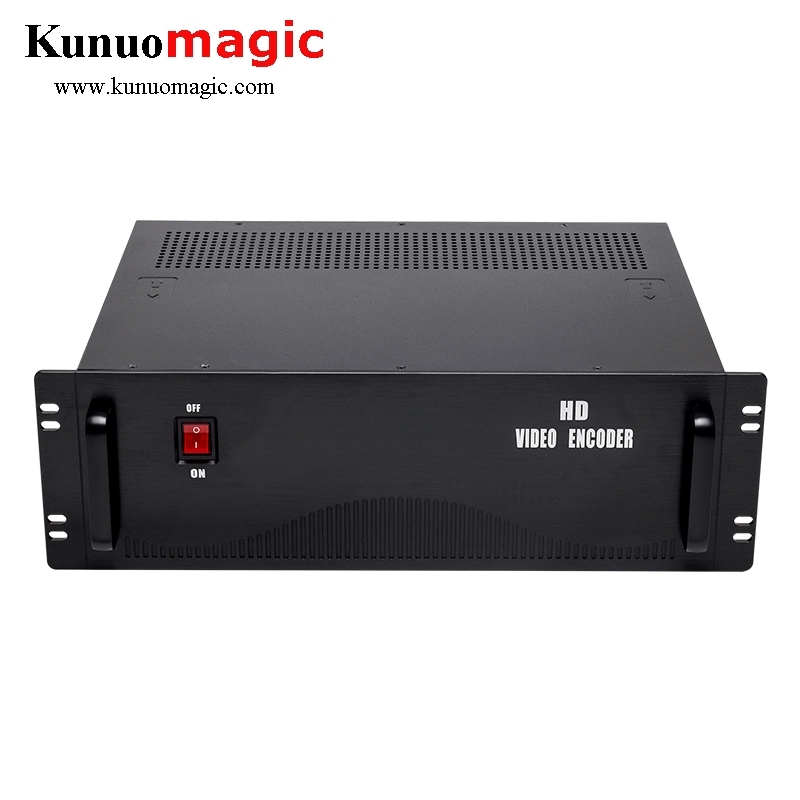

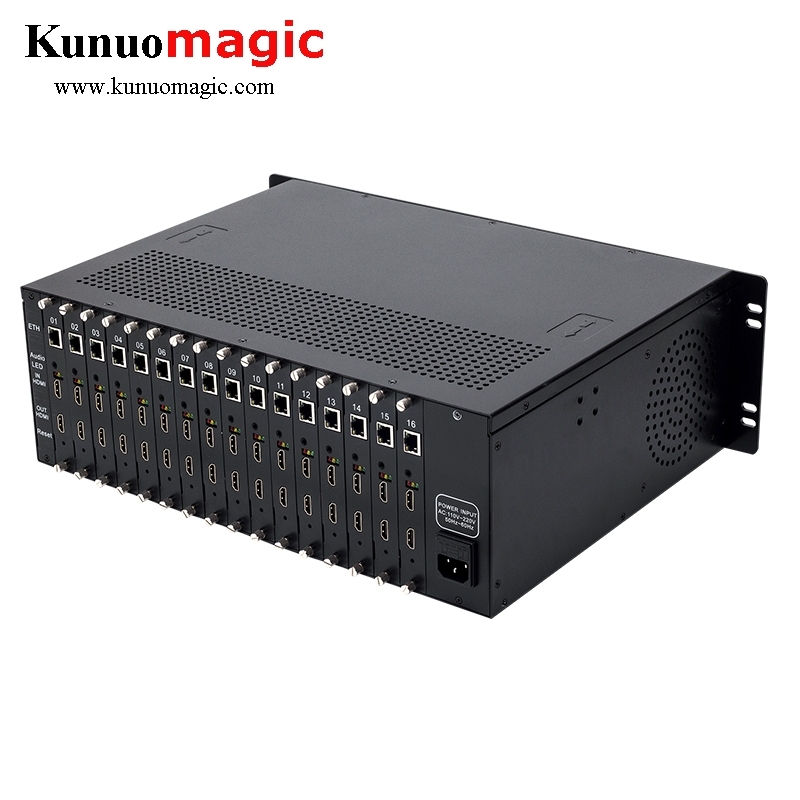

MPEG4 3U 16 Channels HDMI To IP Live Stream Encoder H.264 16 In 1 RTMP Video Encoder H.265 HDMI Encoder IPTV HLS HTTP RTSP UDP

FEATURES

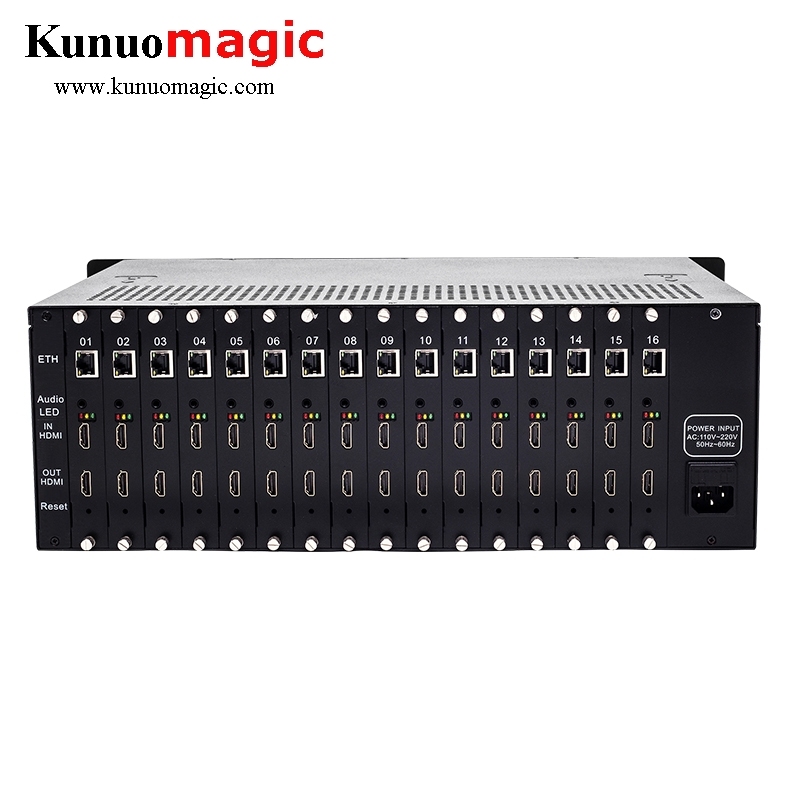

1. Input: 16*HDMI(HDCP）,3.5mm Audio

2. Bitrate mode: CBR/VBR16Kbit/s~12Mbit/s

3. Support streaming resolution settings up to 720P, 1080P HD video input

4. GOP frame rate settings supported

5. Insertable of logo and Scroll Caption; Adjustable of audio gain;

6. Capable of image parameter settings

7. Video Output: Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications

8. Switchable of audio output mode: Left, right and Stereo

9. Configurable of Multi-rate, Multi-resolution, Multi-protocol

10. Providing SRT/RTSP/HTTP/UDP or RTMP/HLS/M3U8 protocol

11. Support ONVIF Network Video Protocol

12. Support multiple equipments display at the same time on a computer

13. System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

14. Web-based management

15. Full-duplex mode 1000M


APPLICATIONS

1. Digital TV Broadcasting System

2. Digital TV Programs Transmission

3. Hotel TV System

4. Head-end system of Digital TV branch network

5. CATV Broadcasting system

6. Edge side of Digital TV backbone network

7. IPTV and OTT headend system
