Product Overview

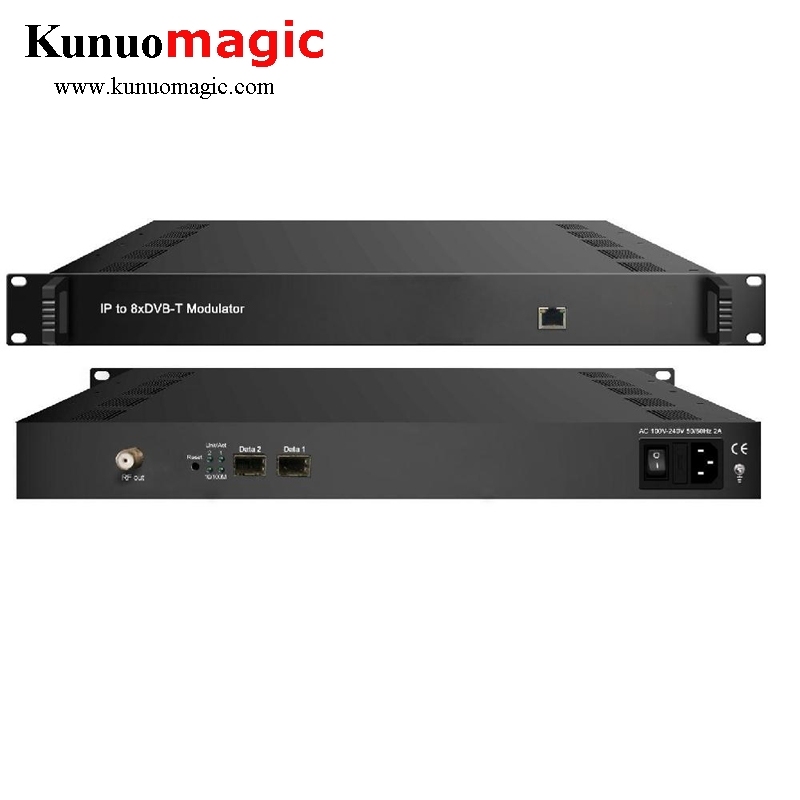

YNS-3308T IP to DVB-T modulator is an all-in-one device developed by Kunuomagic. It has 8 multiplexing channels and 8 DVB-T modulating channels, and supports maximum 1024 IP input through the GE port and 8 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.
Key Features
2 GE input, Date1 and Data2
Supports up to 1024 channels TS over UDP/RTP, unicast and multicast, IGMP v2v3
Max 840Mbps for each input
Supports accurate PCR adjusting
Supports PID remapping and PSI/SI editing
Supports up to 180 PIDs remapping per channel
Support 8 multiplexed TS over UDP/RTP/RTSP output
8 DVB-T non-adjacent carriers output, compliant to ETSI EN300 744 standard
Supports RS (204,188) encoding
Support Web-based Network management

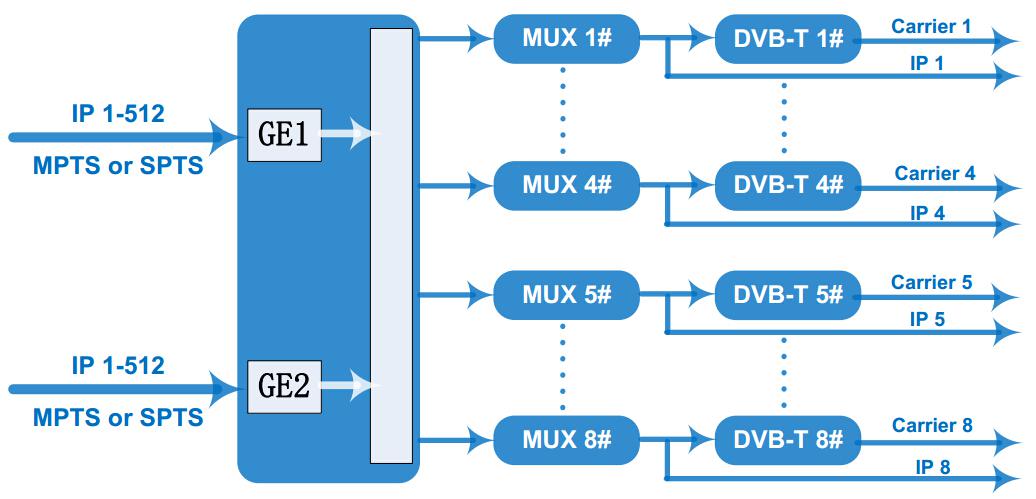

Inner Principle Chart
