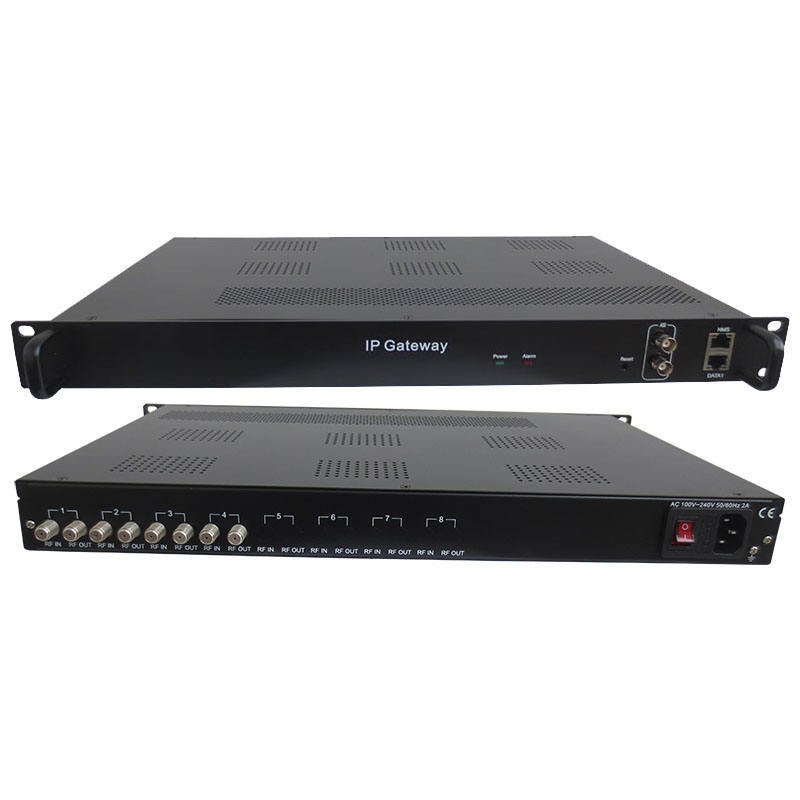

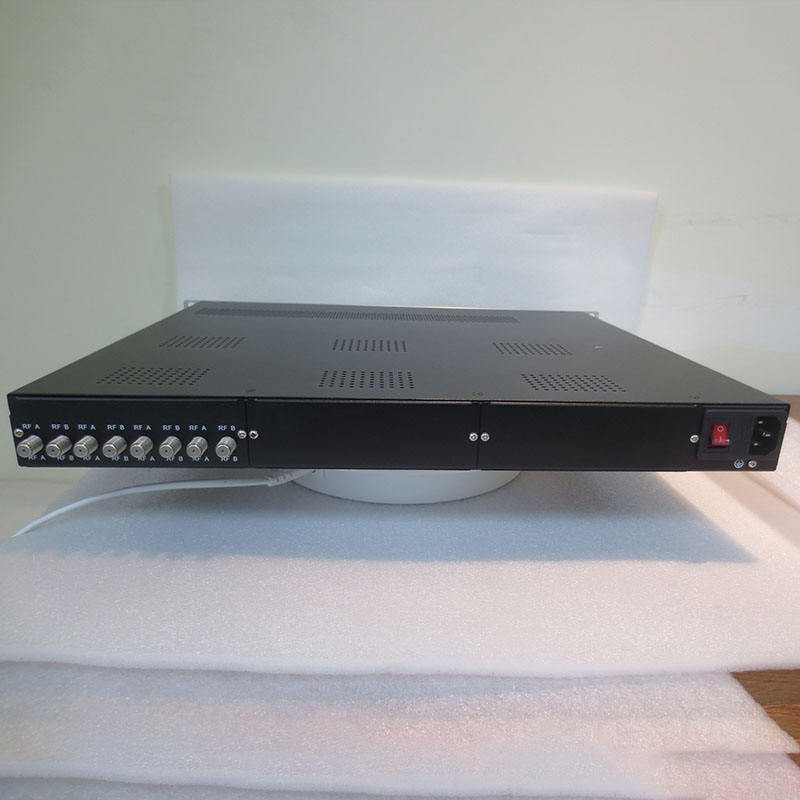

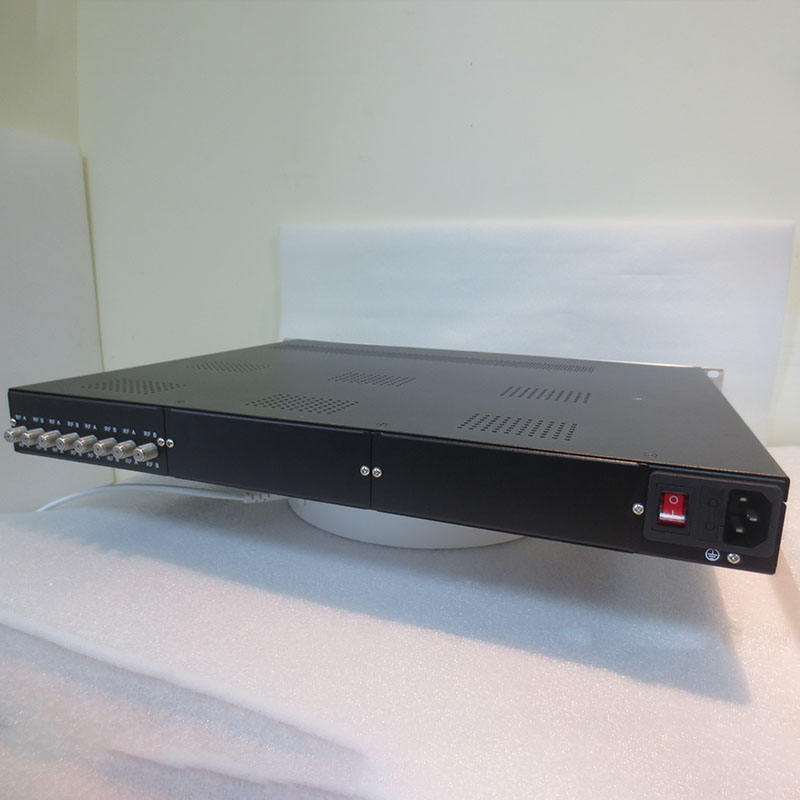

YDS8804A Series Multi-channels Tuner to IP Gateway Professional Receiver, support 4/8 Independent Satellite DVB S/S2 input to IP TS SPTS multicast or unicast outputs. It is integrated with tuner demodulation, which can demodulates from 4/ 8 channel tuners, then output the IP package through different IP address and ports.
The tuners support DVB-S/S2/T/T2/C/ISDB-T/ATSC optional input, demodulate to TS and encapsulated output IP packet, IP output port by 128* UDP/RTP SPTS/MPTS for mapping tuner input. It is an ideal solution for environments where not many air channels, and widely used in IPTV system, hotel, entertainment facilities, education broadcasting systems at schools and government buildings or any kinds of source signals convert to Cable TV Broadcast System, largely cost down the source gathering of Digital TV Broadcasting System and IPTV/OTT system which based on IP construction. Being the ideal multi-channel professional receiver used for less channels FTA (free to air) IP signal source capture from digital tuner.
HighLights
* Input: 4/8 FTA Tuners input . * Different Tuner standard option from DVB-S/S2,DVB-T/T2,DVB-C,ISDB-T,ATSC without different tuner standard mixed input function DVB-T/T2,DVB-C,ISDB-T,ATSC is customization(Extra cost) *Operation via Web Management * GigE DATA port can be used for input and output * IP stream output: 4*MPTS +128 SPTS IP protocol UDP/RTP * Low cost headend receiver for IPTV/OTT System * LCD screen display for option, ASI multiplexing for option * Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≥ 50000 Hours * No BISS function. * ASI option(Extra cost),LED screen option(extra cost) * Highly compact, High-Integrate 24*7 hours working stable, broadcasting quality
Application
IPTV/OTT Headend System Solution
Our IPTV encoder series widely used for IPTV/OTT solution for Hotel, community, hospital, GYM,Bar,Resort,Vessel .....all application need watch the video on screens IPTV encoder as the headend devices ,encoding and compression the HDMI/SDI/VGA/CVBS signal and transmission the video source by IP to USS-9000 ,ISS-9000 Streaming Server , terminals receiving the programs by the android set top box which built-in our IPTV APK .
