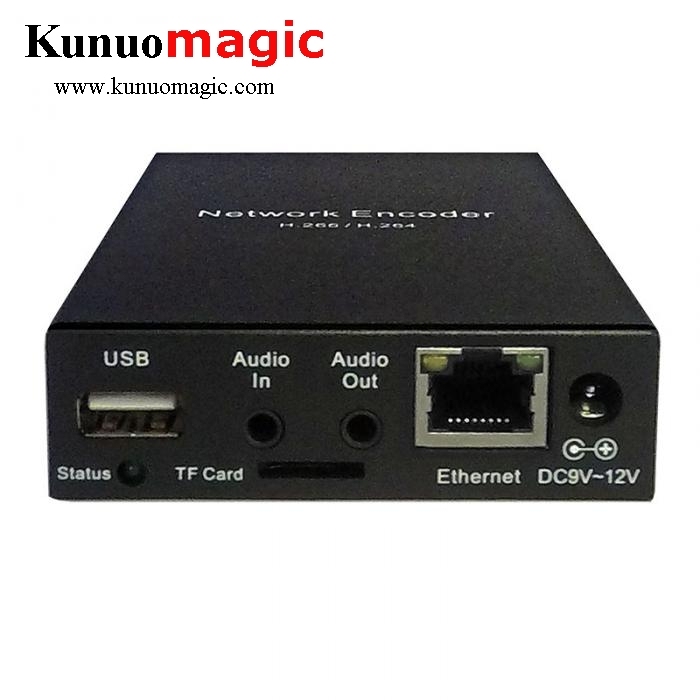

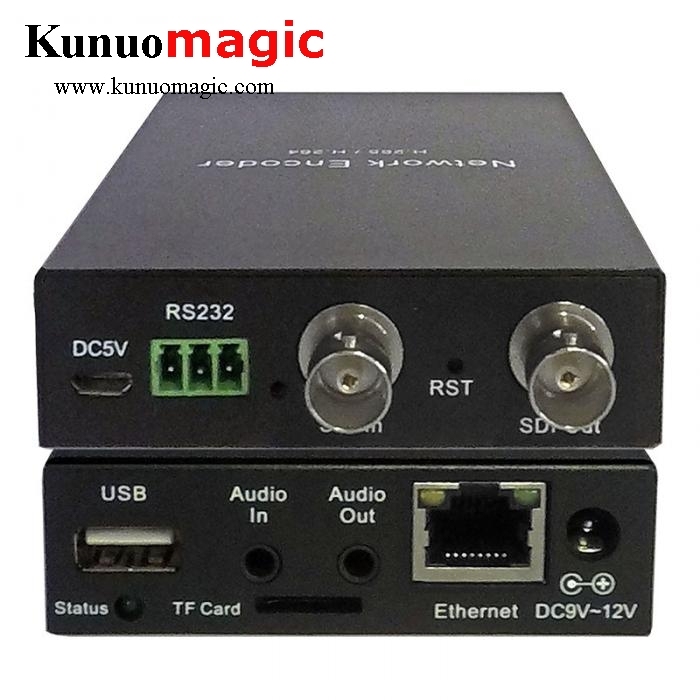

H264/H265 SDI Video Encoder with SDI Loopback - It is a HD audio & video encoding device with powerful functionality, which supports input SDI max resolution at 1920×1080@60fps, and output stream resolution can up to 1080P@60fps. This Encoder works with HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (UNICAST/MULTICAST) Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
Product features

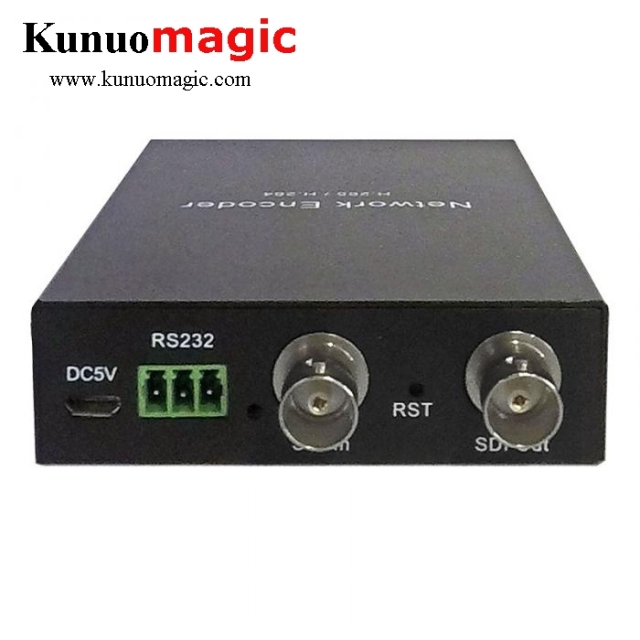

With 2 SDI ports, 1 SDIfor input, 1 SDI loopback.
Adopts professional encoding chip, embedded HiLinux System, high stability and efficiency.
Friendly Web Control UI, default IP is 192.168.1.168.
Support HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.
Support output Multi RTMP(S) (Main stream & Sub stream.) to different Media Streaming Server.
Provide custom resolutions, Main Stream Preset Resolution –1920x1200, 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270 etc.
Support Text and image insert as Stream Logo for Main stream & Sub stream.
Automatic detect the input video signals, output stream will show no signals when input signals interrupted.
Output Stream bitrate adjustable.
Support Audio digital gain & External Analog audio input.
Support firmware upgrade.
Support remote control via router port forward.
Wifi version for option.
3U chassis available, max supports 16Pcs Encoder installed.
Application
1. IPTV (Wowza, Xtream Codes Media Server, etc.)
2. Online Live Broadcast ( YouTube, Facebook, Ustream, Twitter, etc.)
3. NVR (Network Video Recorder)
4. Recording System / Software
5. Digital Signage
6. Teaching / Campus Broadcast
7. Hotel TV system
8. Video Conference
9.……
