Application

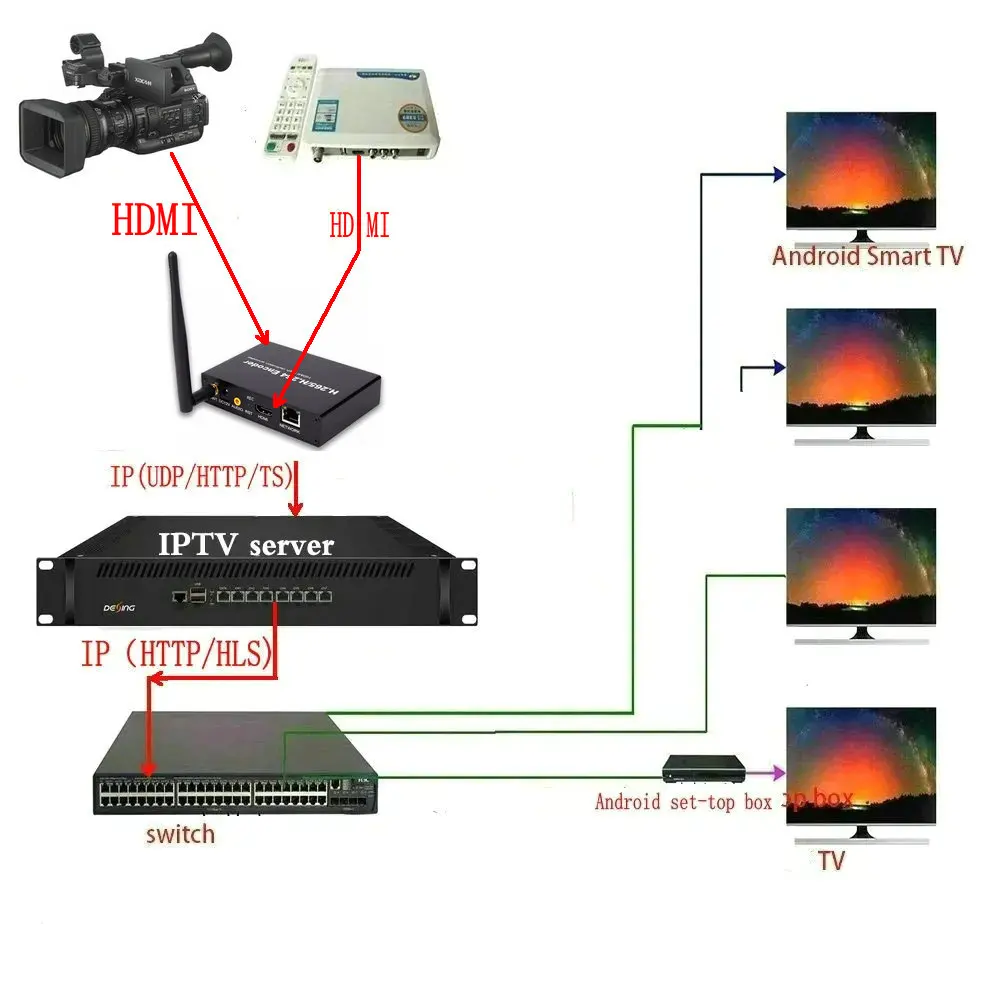

IPTV Satellite Modulator/Hotel TV System
CCTV Camera/Camcorder
UAV Image Transmission/DLSR Camera
Drone/DV/FPV/Medical Equipment
Digital Signage/Video Conference
Online Live Streaming Broadcast or Server
Teaching/Campus Broadcast/Telemedicine
Multimedia Stitching Display
NVR/Recording System

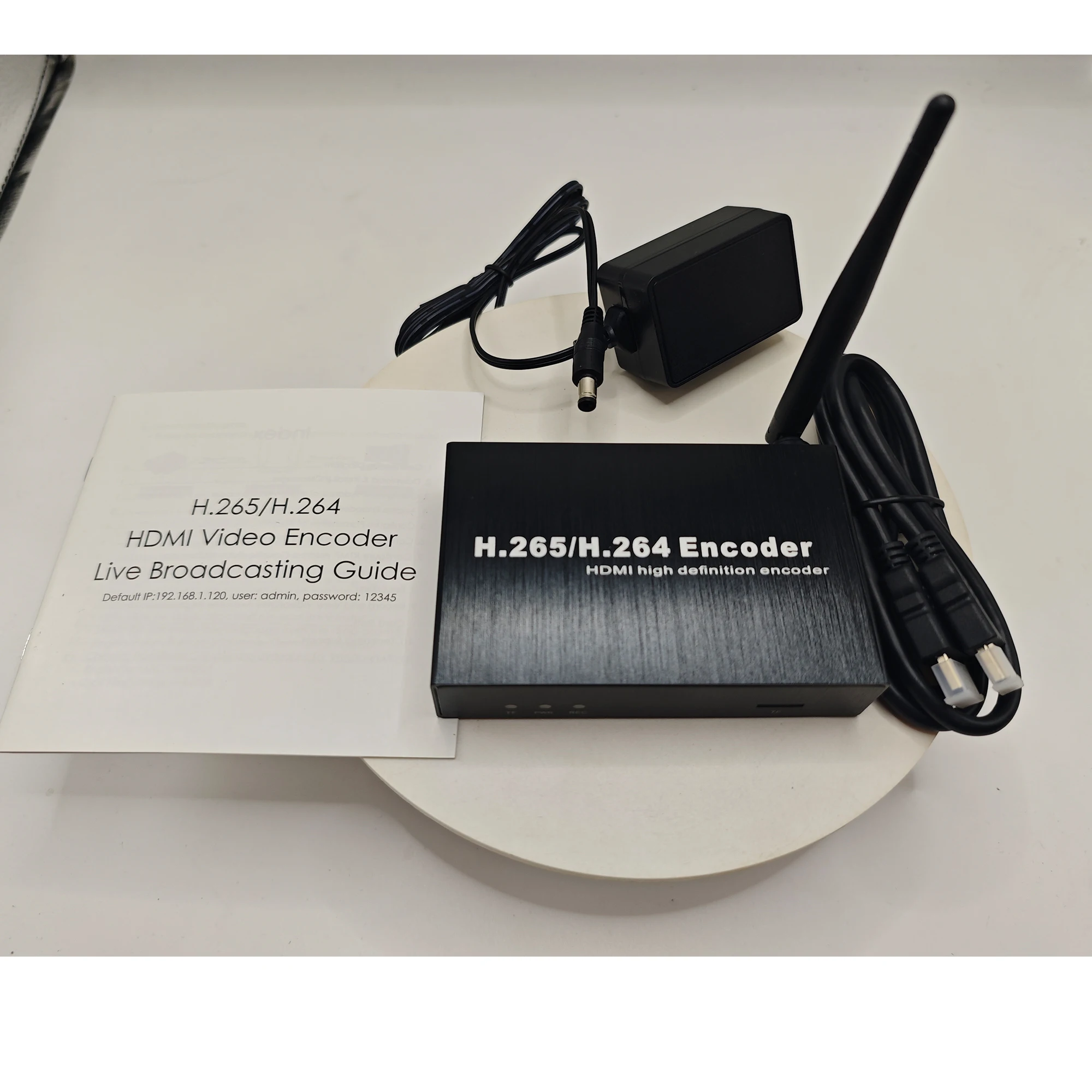

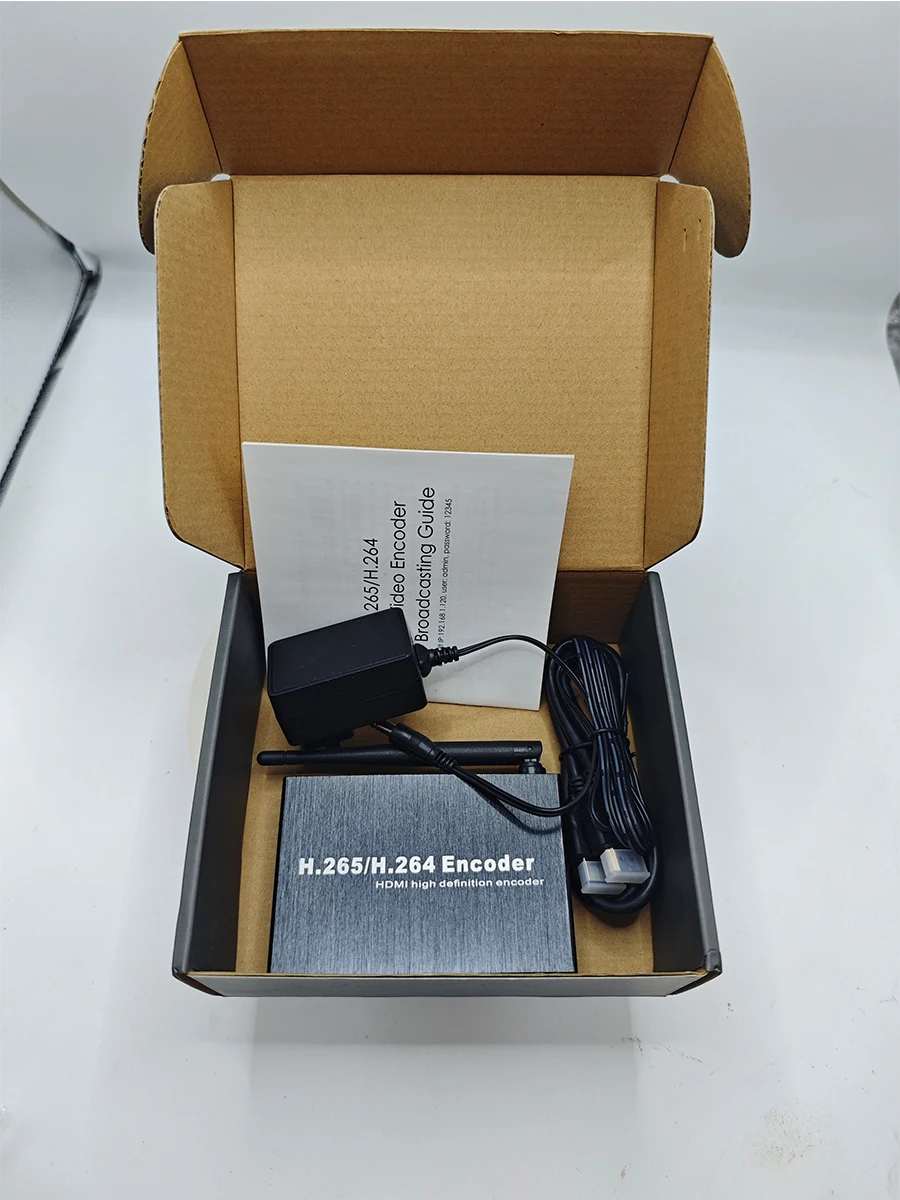

Package Include
1x HDMI Video Encoder or 1x NDI HDMI Video Encoder
1x DC12V 1A Power Adapter
1x HDMI Cable(1M)
1x Ethernet Cable(1M)
1x Live Broadcasting Quick Guide

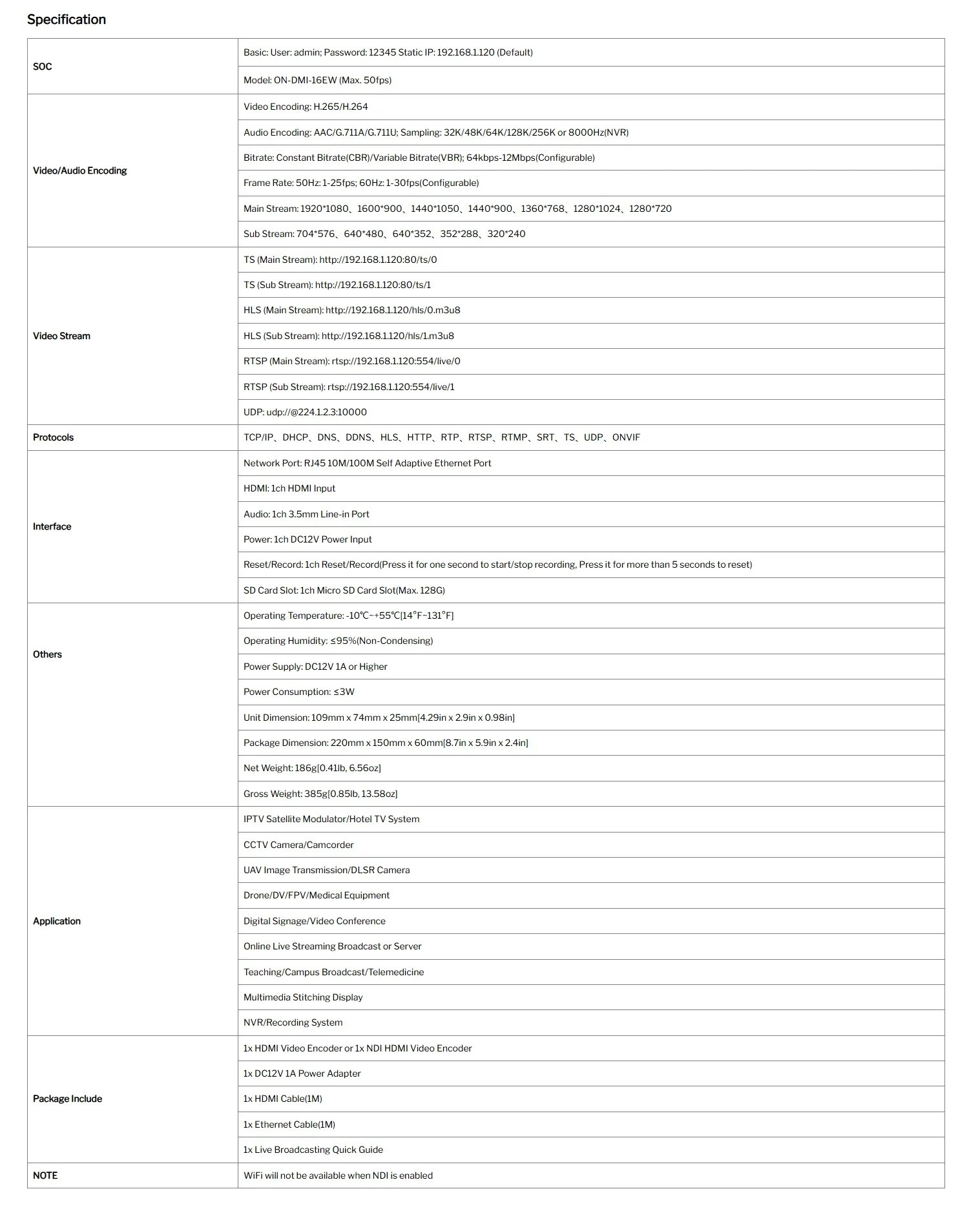

Basic: User: admin; Password: 12345 Static IP: 192.168.1.120 (Default)
Video/Audio Encoding Video Encoding: H.265/H.264
Audio Encoding: AAC/G.711A/G.711U; Sampling: 32K/48K/64K/128K/256K or 8000Hz(NVR)
Bitrate: Constant Bitrate(CBR)/Variable Bitrate(VBR); 64kbps-12Mbps(Configurable)
Frame Rate: 50Hz: 1-25fps; 60Hz: 1-30fps(Configurable)
Main Stream: 1920*1080、1600*900、1440*1050、1440*900、1360*768、1280*1024、1280*720
Sub Stream: 704*576、640*480、640*352、352*288、320*240
Video Stream
TS (Main Stream): http://192.168.1.120:80/ts/0
TS (Sub Stream): http://192.168.1.120:80/ts/1
HLS (Main Stream): http://192.168.1.120/hls/0.m3u8
HLS (Sub Stream): http://192.168.1.120/hls/1.m3u8
RTSP (Main Stream): rtsp://192.168.1.120:554/live/0
RTSP (Sub Stream): rtsp://192.168.1.120:554/live/1
UDP: udp://@224.1.2.3:10000

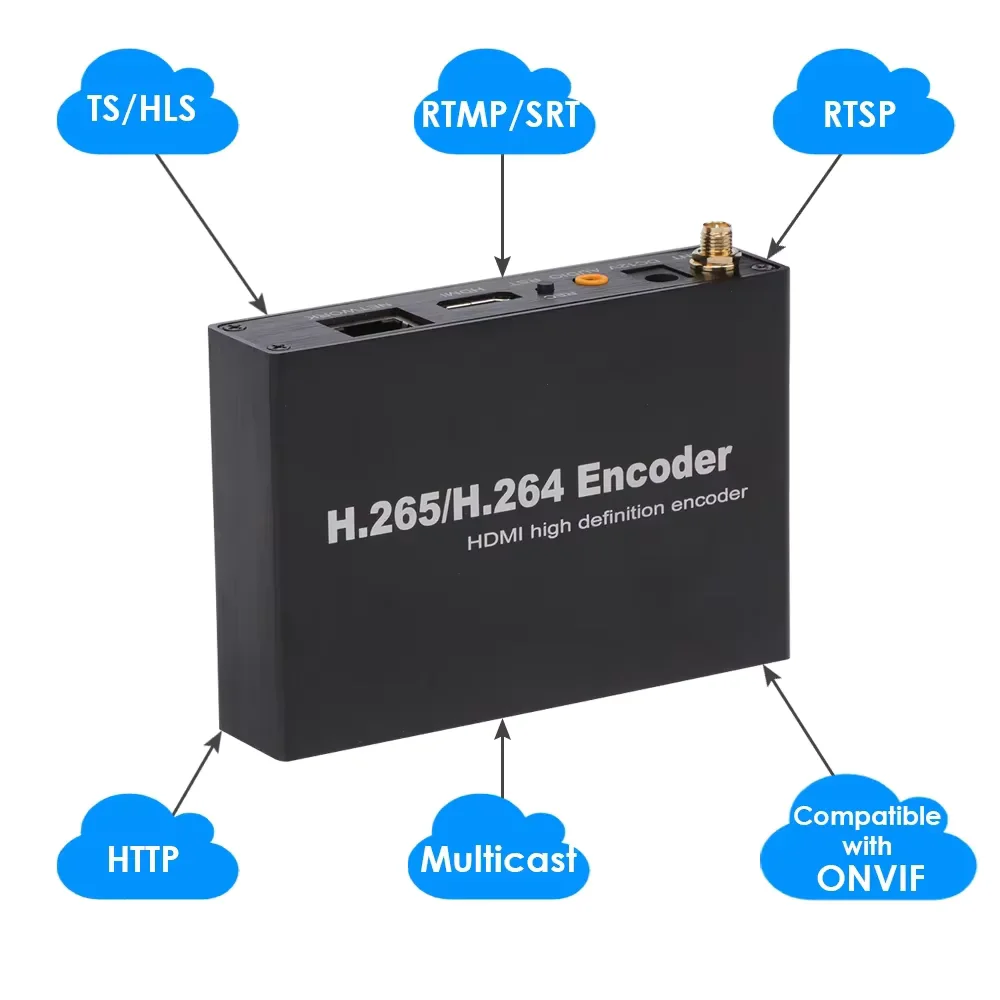

Protocols TCP/IP、DHCP、DNS、DDNS、HLS、HTTP、RTP、RTSP、RTMP、SRT、TS、UDP、ONVIF

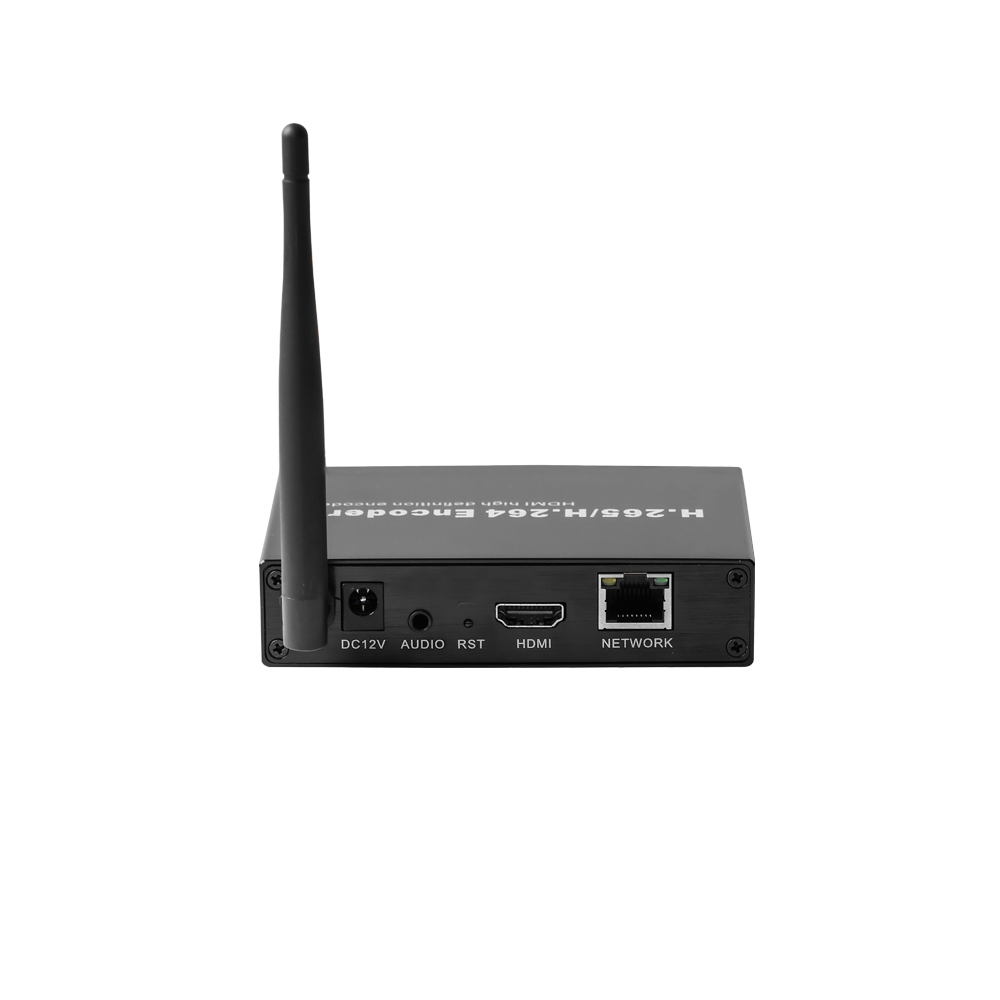

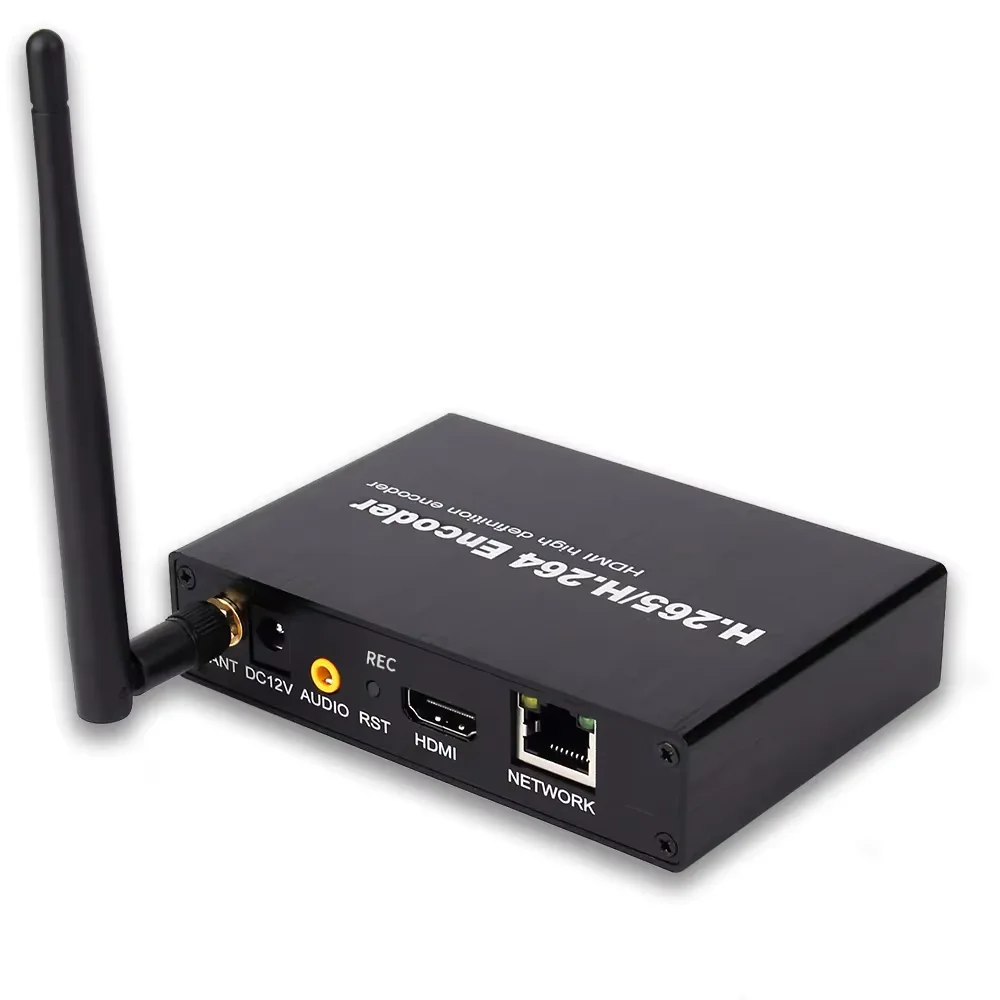

Interface Network Port: RJ45 10M/100M Self Adaptive Ethernet Port
HDMI: 1ch HDMI Input
Audio: 1ch 3.5mm Line-in Port
Power: 1ch DC12V Power Input
Reset/Record: 1ch Reset/Record(Press it for one second to start/stop recording, Press it for more than 5 seconds to reset)

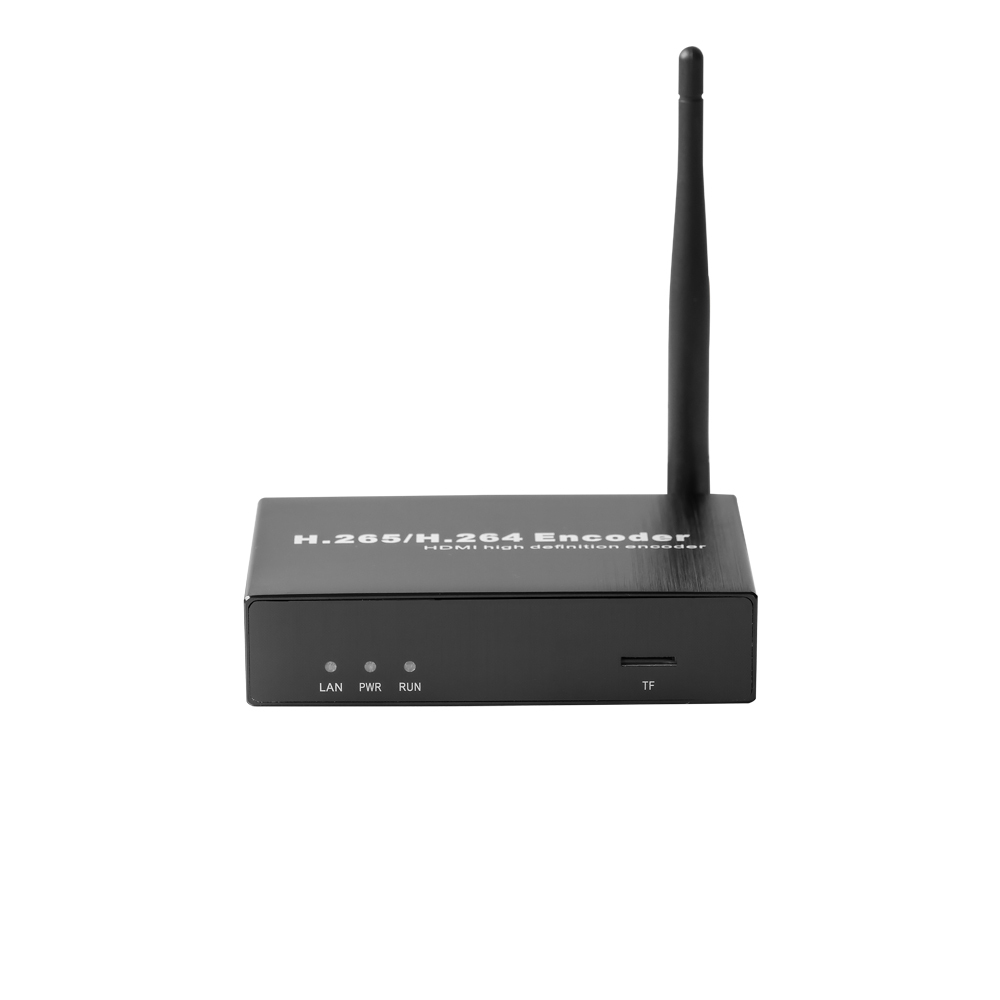

SD Card Slot: 1ch Micro SD Card Slot(Max. 128G)
Others
Operating Temperature: -10℃~+55℃[14°F~131°F]
Operating Humidity: ≤95%(Non-Condensing)
Power Supply: DC12V 1A or Higher
Power Consumption: ≤3W
Unit Dimension: 109mm x 74mm x 25mm[4.29in x 2.9in x 0.98in]
Package Dimension: 220mm x 150mm x 60mm[8.7in x 5.9in x 2.4in]
Net Weight: 186g[0.41lb, 6.56oz]
Gross Weight: 385g[0.85lb, 13.58oz]
NOTE WiFi will not be available when NDI is enabled
