Name: IPTV Live Streaming VGA to IP Encoder IPTV Internet Encoder IPTV For Online Streaming
Brand: Top Provider of Digital TV&IPTV Video Streaming Media System
SKU: YDS2310VL
Availability: InStock
Rating: 5 (1 reviews)

No.YDS2310VL

Input:1*VGA
IP Output:HTTP/RTSP/RTMPS/SRT/UDP/RTP/ONVIF/HLS
Video Encoding:H.265/Hevc,H.264/Mpeg4
Audio Encoding:AAC,MP3,MP2,AC3,G.711
Video Stream:Max 4 Streams Output Simultaneously
Resolution:Max 1080P@60fps
Warranty:5 Years Warranty

GET A QUOTE

Description

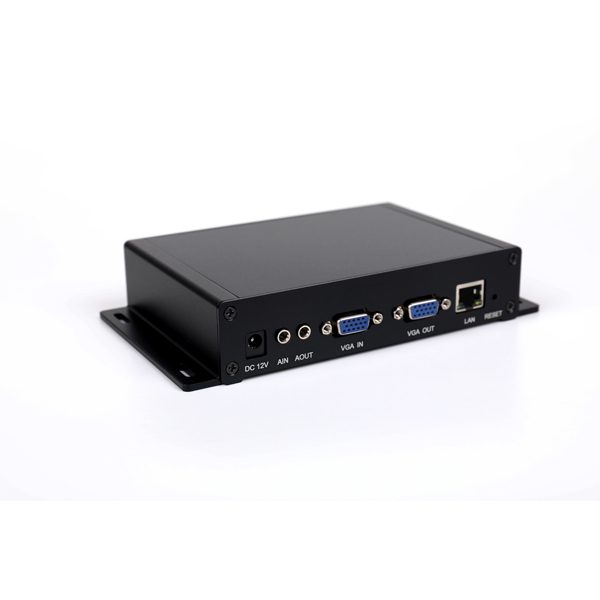

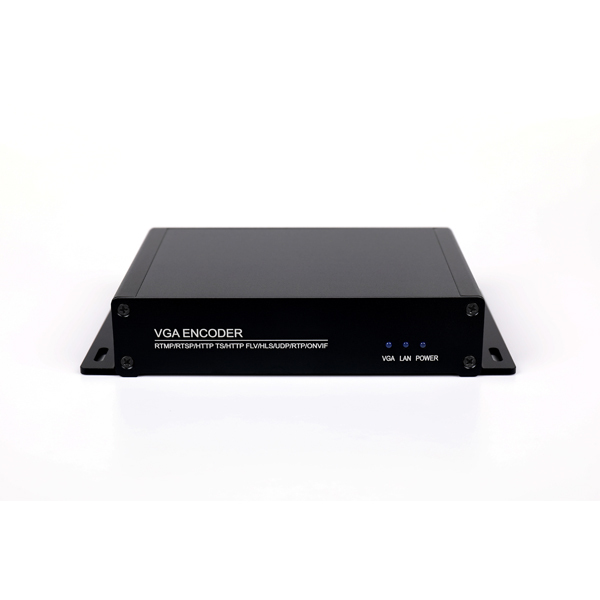

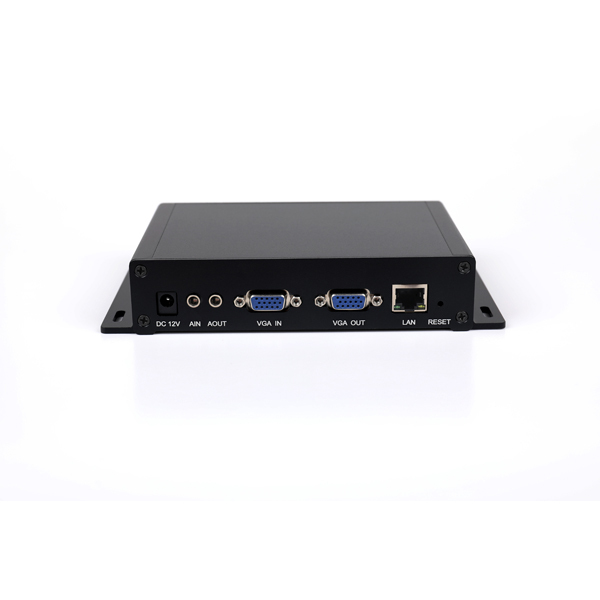

YDS2310VL video encoder is our professional HD audio and video encoding device with powerful functionality. It is equipped with 1 ch VGA&Audio input and 1ch VGA output, supporting H.265 and H.264 encoding format and two video streaming output, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, RTMPS,SRT,ONVIF, HLS, FLV. VGA max resolution is 1080p@60fps, and output stream resolution can up to 1080p@60fps for the mainstream, 720@60fps for the main and 2nd stream, etc.,
Its high integration and cost-effective design make this device widely used in the variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, WOWZA, Facebook Live, etc.

【Product Feature】
High-performance hardware encoding
support H.265 and H.264
support AAC / G.711 Advanced Audio Coding format quality
CBR / VBR rate: 16Kbps ~ 12Mbps
1000M network interface uses full duplex mode
mainstream and secondary stream can be pushed to the different server
Supports up to 720P, 1080P @ 30/60HZ HD video input
Support image parameter settings
support HDCP protocol and Blu-ray
support HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP, ONVIF protocol
the mainstream and side stream use the different network protocol for transmission
WEB interface, English, and Chinese is optional for configuration interface
WEB interface management authority
Support remote management in WAN(WEB)
Support resolution customized settings
Support one key to restoring the factory configuration
Support SDK, secondary development

【Specifications】

Model	YDS2310VL
Video
Input interface	1×VGA
Support resolution	1080P\1080i\720P 、1600x1200\1400x1050\1440x900\1280x1024\1280x960\1280x800\1024x768\800x600 etc.
Frame rate	60 frame
Output interface	1×Ethernet port(RJ45) , 1×VGA loopout
Video encoding	H.265/HEVC,H.264/MPEG4
Code Rate control	16kbps- 12Mbps
Code Rate	CBR/VBR
Audio
Input interface	1×External audio, VGA built-in Audio
Audio encoding	ACC, MP3
Sampling rate	Auto
Bit-rate Option	48K,64K,96K,128K,160K,192K,256K
Sampling Accuracy	24 Bit
Audio Data-rate	64Kb/s to 384Kb/s
Network
RJ45	10M/1000M Ethernet port
Program streaming	HTTP, RTSP, RTMP, RTMPS, SRT, HLS, FLV,ONVIF(UDP/RTP)
Control Panel	Web panel ( Language is English), remote upgrade
Firmware Update	Enable by uploading files to the dashboard
General
Size(WLH)	166130280mm
Gross Weight	0.3kg
Temperature	0 ~ 45℃（for working）,-20~60℃（for storing)
Humidity	<90%, non-condensing
Input Voltage	DC 12V/1A
Power Consumption	5W

Download
