Key Features
ISDB-T/DVB-T /DVB-C /ATSC RF in one device, Modulation dynamic switching
2 GE/SFP+10 FE date ports

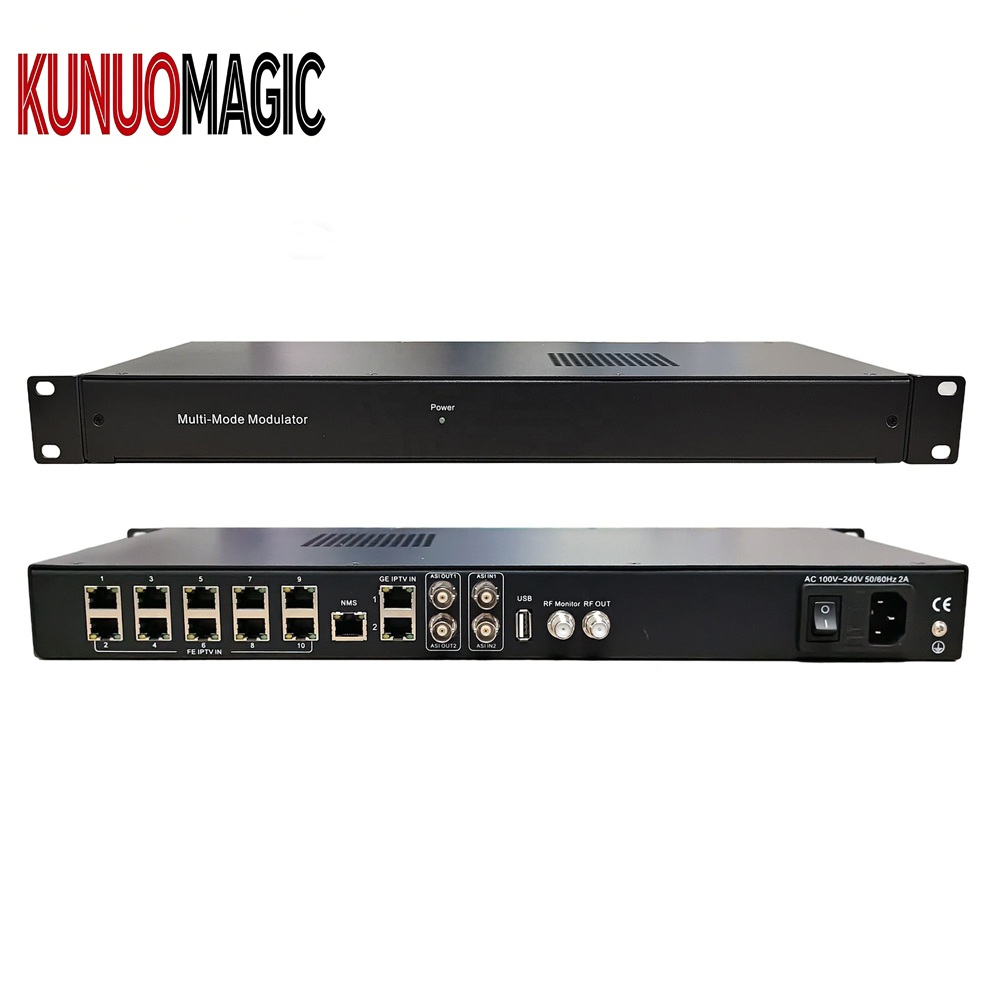

Product Overview
IP Modulator 5/6/8/10/12 in 1 DVB-T/ISDB/ATSC/DVB-C & up to12 in 1 is the latest generational Mux-modulating device developed by my company. It supports maximum 128 IP input through the 2 GE ports, 32 IP input through the 10 FE port, and also has 2 ASI input/. After 5&6&8&10&12 multiplexing, it gives 12 ISDB-T & 12 DVB-T & 12 DVB-C non-adjacent carriers (50MHz~960MHz), 5&6&8&10&12 IP (MPTS) output as mirror of carriers. The device is characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.
Key Features

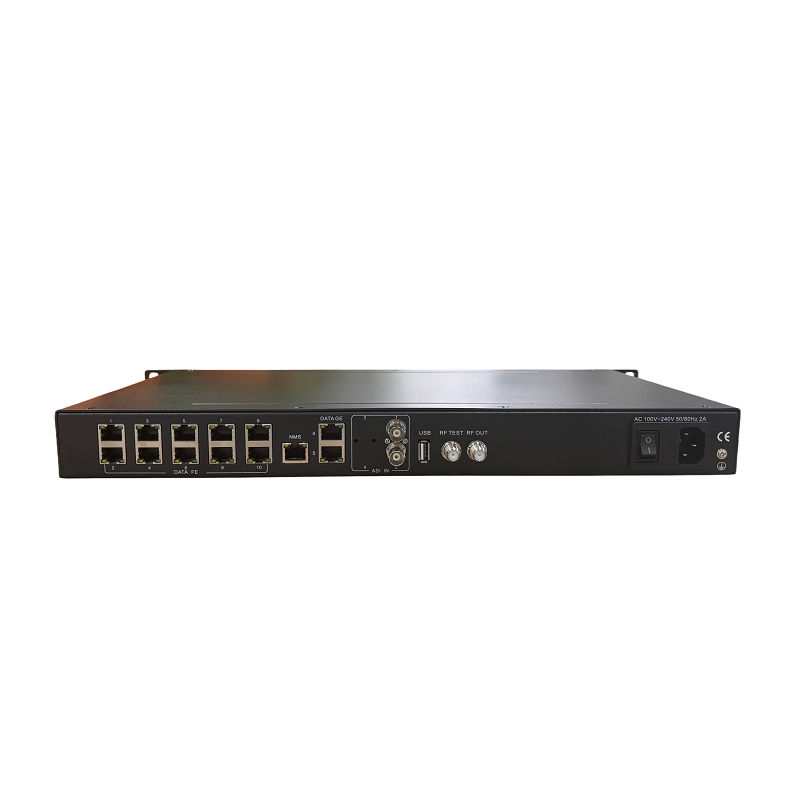

Data is input ports
Date1-Date10 all for input
Specifications
|
Input |
Input |
5/6/8/10/12in 1 DVB-T/ISDB/ATSC/ISDB-T & 12 in 1 DVB-T&ISDB&DVB-C&ATSC carriers: Max 128 IP input through Date1-Date5, 100/1000M Ethernet Port (Date1-Date3). Each Data port can input max 128 IP. Max 32 IP input through Date1-Date10 (FE port, Rear panel), 100M Ethernet Port, Each Data port can input max 32 IP. |
|
|
2ASI input/output, BNC interface |
|||
|
|
1 USB Player input for re-mux (“xxx.ts” video) |
||
|
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
||
|
Transmission Rate |
Max 840Mbps for each input channel |
||
|
Mux |
Input Channel |
128(or 32) |
|
|
Output Channel |
5/6/8/10/12(ISDB-T/DVB-T/ATSC/DVB-C) |
||
|
Max PIDs |
256 per channel |
||
|
Functions |
PID remapping(auto/manually optional) |
||
|
PCR accurate adjusting |
|||
|
PSI/SI table automatically generating |
|||
|
Modulation Parameters (ISDB-T) |
Channel |
5/6/8/10/12(License gradable) |
|
|
Modulation Standard |
ARIB STD-B31 |
||
|
Constellation |
QPSK, 16QAM, 64QAM |
||
|
Bandwidth |
6MHz |
||
|
Transmission Mode |
2K/4K/8K |
||
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
||
|
RF Output (ISDB-T) |
Interface |
F typed output port for 28 non-adjacent carriers |
|
|
RF Range |
50~960MHz, 1kHz stepping |
||
|
Output Level |
-20dBm~1dBm(87~108dbµV), 0.1dB stepping |
||
|
MER |
≥ 40dB |
||
|
ACL |
-50 dBc |
||
|
Modulation Parameters (DVB-T) |
Channel |
5/6/8/10/12(License gradable) |
|
|
Modulation Standard |
ETSI EN300 744 |
||
|
Constellation |
QPSK/16QAM/64QAM |
||
|
Bandwidth |
6/7/8 MHz |
||
|
Transmission Mode |
2K/4K/8K |
||
|
Code rate |
1/2,2/3,3/4,5/6,7/8 |
||
|
RF Output (DVB-T) |
Interface |
F typed output port for 32 non-adjacent carriers |
|
|
RF Range |
50~960MHz, 1kHz stepping |
||
|
Output Level |
-20dBm~0dBm(87~107dbµV), 0.1dB stepping |
||
|
MER |
≥ 40dB |
||
|
ACL |
-55 dBc |
||
|
Modulation Parameters (DVB-C) |
Constellation |
J.83A |
Constellation :16/32/64/128/256QAM |
|
Bandwidth :8M |
|||
|
J.83B/C |
Constellation :64/256QAM |
||
|
Bandwidth :6M |
|||
|
QAM Channel |
5/6/8/10/12(License gradable) |
||
|
Symbol Rate |
5.0~7.0Msps, 1ksps stepping. 5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM) |
||
|
Constellation |
16, 32, 64 , 128, 256QAM |
||
|
RF Output (DVB-C) |
Interface |
F typed output port for 48 non-adjacent carriers |
|
|
RF Range |
50~960MHz, 1kHz stepping |
||
|
Output Level |
-20dBm~-3dBm(87~104dbµV), 0.1dB stepping |
||
|
MER |
≥ 40dB |
||
|
ACL |
50~960MHz, 1kHz stepping |
||
|
TS output |
5/6/8/10/12 IP output over UDP/RTP, unicast/multicast, Data1 100/1000M Ethernet Ports |
||
|
System |
Web-based Network management |
||
|
General |
Demission |
420mm×440mm×44.5mm (WxLxH) |
|
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
||
|
Power Supply |
AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz |
||
Order Guide
|
Modulation combination |
DVB-C/DVB-T |
DVB-C/ISDB-T |
DVB-T/ISDB-T |
|
Carrier support (Increase every four carriers) |
5/6/8/10/12 |
5/6/8/10/12 |
5/6/8/10/12 |
|
Modulation |
Carrier number(Increase every four carriers by license) |
||||
|
DVB-C |
5 |
6 |
8 |
10 |
12 |
|
DVB-T |
5 |
6 |
8 |
10 |
12 |
|
ISDB-T |
5 |
6 |
8 |
10 |
12 |
|
Note: |
Different combination of carrier number can be selected, Need to be confirmed before an order |
||||
