* Encoder/Receiver, IP Gateway and IPTV Server in one device
* 2 separate Web GUI, one for Cards and Gateway, the other for IPTV Server
* Support uploading TS files directly in Web GUI to broadcast your own channels
* Support inter-cut feature of a live program, a TS file and a picture
* Support IP anti-jitter feature for the external IP streams
* Support downloading KUNUOMAGIC IPTV APK directly in the Web GUI
* Multi-level password control for your system security
* LCD/Key button for Network-Setting checking
* Modularized design, max 3 (or 6) cards embedded, a flexible option as per the actual application
* Redundancy power supply (for option)
Outline

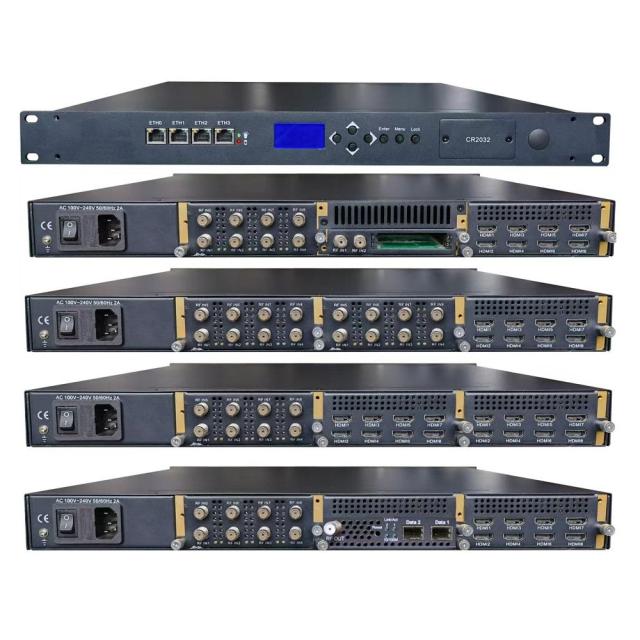

YDS100A is a flexibly modularized 1U (or 3U) device with the features of Encoder/Receiver, IP Gateway and IPTV Server for the protocol-conversion application and IPTV-system application. It supports max 3 (or 6) pluggable streamer cards embedded, such as encoder card and tuner card to receive the HDMI signals and tuner signals etc. It can also convert the input IP streams from the embedded modules and Ethernet ports over SRT, HTTP,UDP, RTP, RTSP, HLS protocol and TS files into the output IP streams over SRT, HTTP,UDP, RTP, RTSP, HLS and RTMP protocol. It is also integrated with KUNUOMAGIC IPTV management software and Streamer cards to make it ideal in an IPTV system, such as hotel, hospital and community.
Key Features
* Encoder/Receiver, IP Gateway and IPTV Server in one device
* 2 separate Web GUI, one for Cards and Gateway, the other for IPTV Server
* Support uploading TS files directly in Web GUI to broadcast your own channels
* Support inter-cut feature of a live program, a TS file and a picture
* Support IP anti-jitter feature for the external IP streams
* Support downloading KUNUOMAGIC IPTV APK directly in the Web GUI
* Multi-level password control for your system security
* LCD/Key button for Network-Setting checking
* Modularized design, max 3 (or 6) cards embedded, a flexible option as per the actual application
* Redundancy power supply (for option)

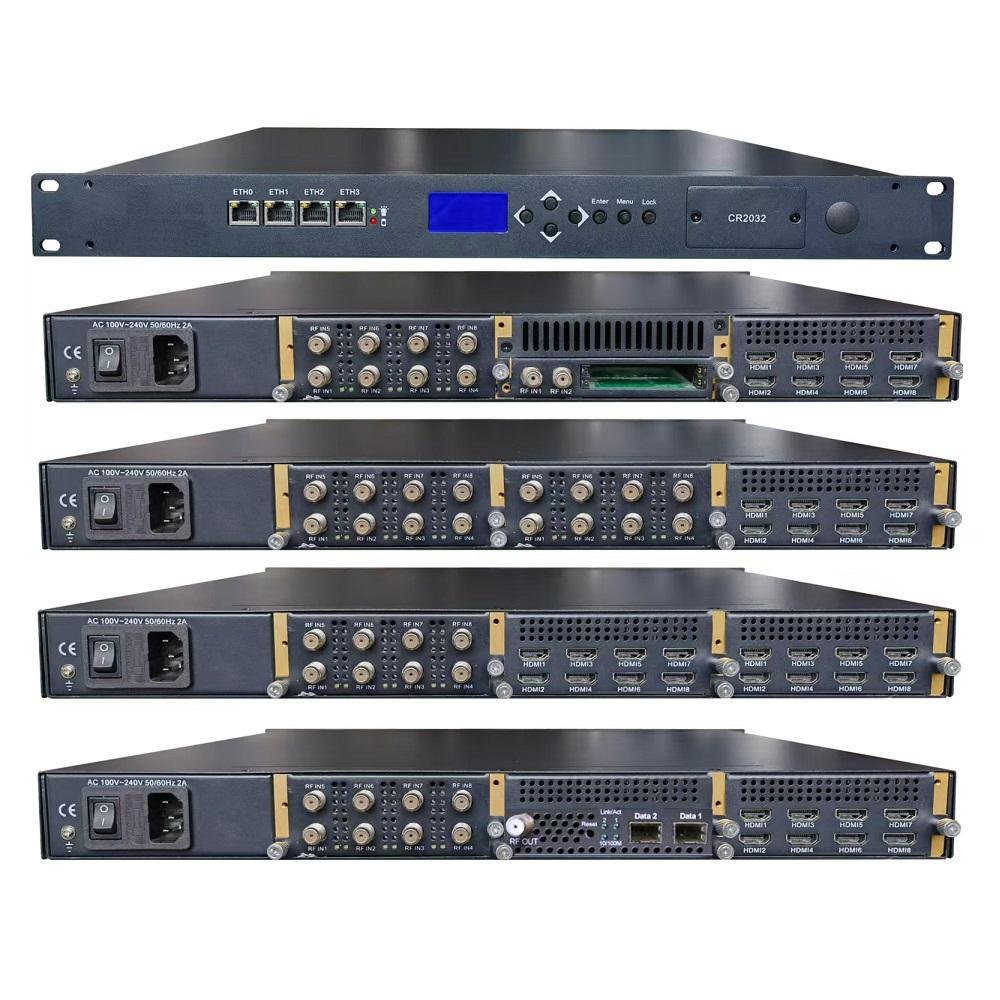

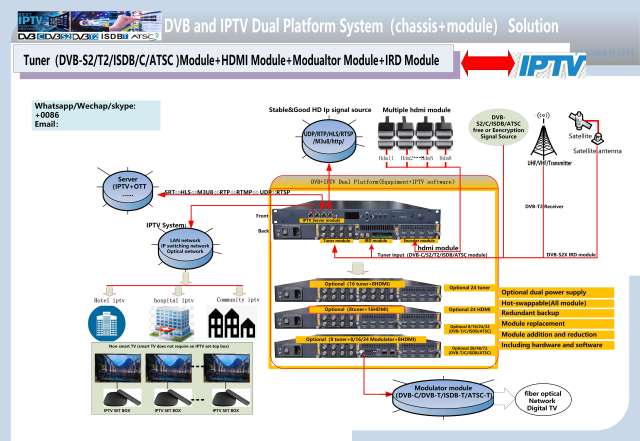

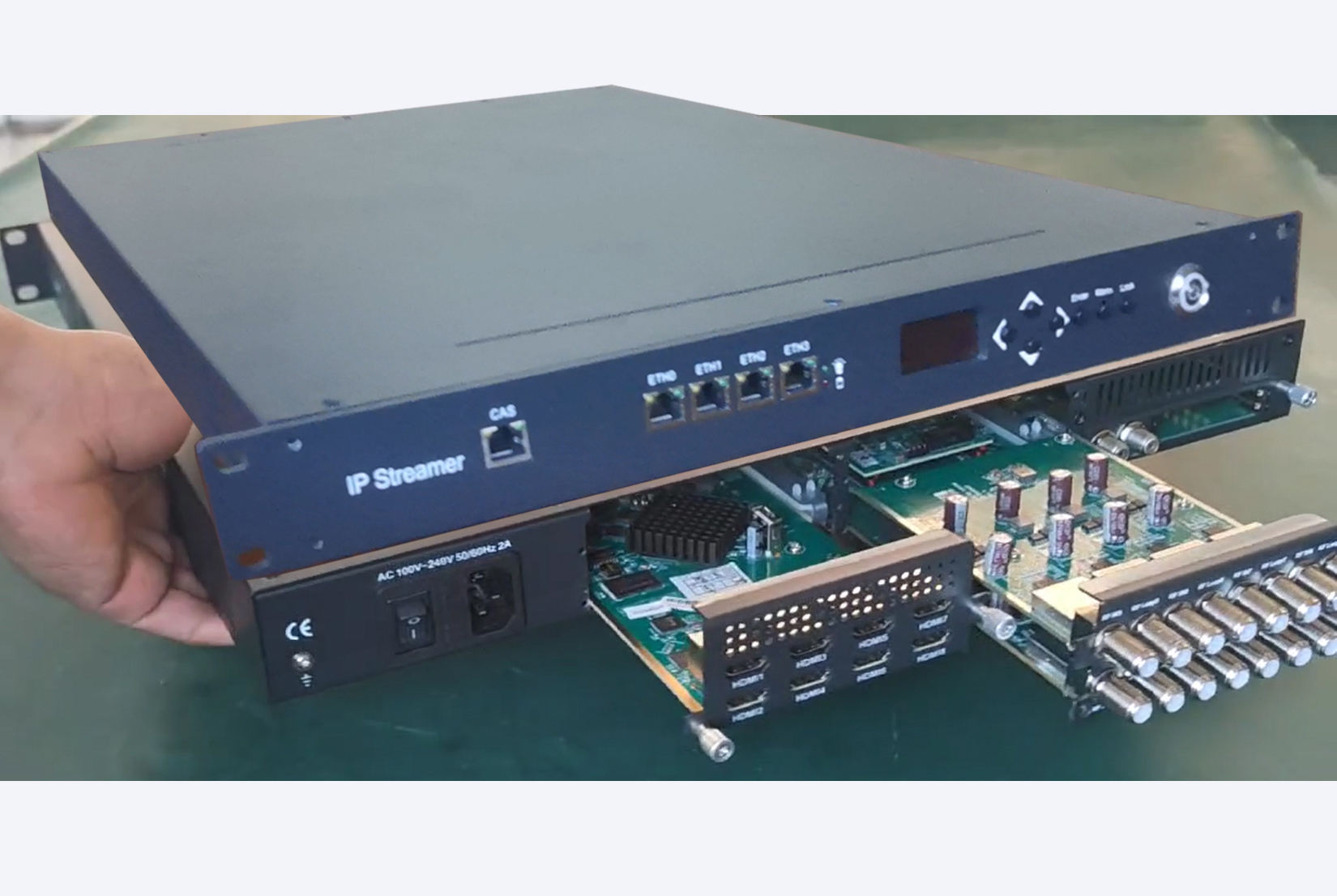

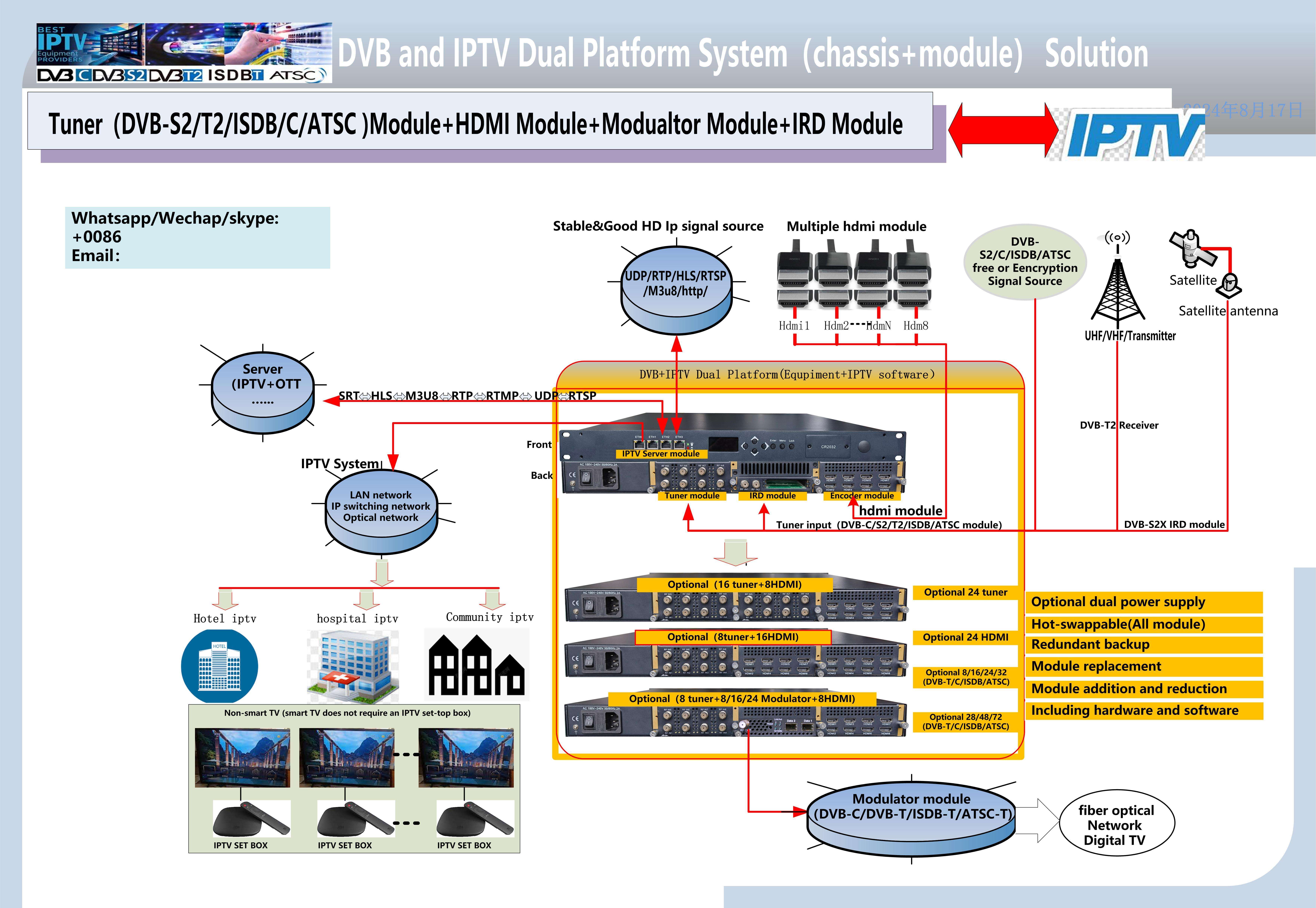

IP Protocol Conversion (example)
Specifications
|
Input |
IP inputs thru ETH 1&2, GE ports over SRT,HTTP, UDP (SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS |
For 1U model |
|
IP inputs thru ETH 1-4 GE ports & 6-7 SFP+ ports over SRT,HTTP, UDP (SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS |
For 3U model |
|
|
TS files uploading through Web management |
||
|
Encoder card and Tuner card etc (Please refer to the detailed card spec below) |
||
|
IP output |
IP outputs thru ETH0, GE port over SRT, HTTP (Unicast), UDP(SPTS, Multicast) , RTP, RTSP, HLS and RTMP (Program source should be H.264 and AAC encoding) |
|
|
System |
Channel switching time with KUNUOMAGIC’ STB: HTTP (1-3s), HLS (0.4-0.7s) |
|
|
It is closely related with the program bitrate and protocol type etc for Max program numbers involved in protocol conversion, and the actual application shall prevail with maximum 80% CPU utilization (Please refer to Test data for reference in the end of the spec) |
||
|
It is closely related with the program bitrate and protocol type etc for Max affordable terminal numbers in IPTV application of the STB/Android TV installed with KUNUOMAGIC IPTV APK, and the actual application shall prevail with maximum 80% CPU utilization (Please refer to Test data for reference in the end of the spec) |
||
|
IPTV Features: Live channel, VOD, Hotel intro, Dining, Hotel service, Scenery intro, APPS,Adding scrolling caption, welcome words, pictures, advertisement, video, music etc (the features are only applicable to IP out application in the STB/Android TV installed with KUNUOMAGIC IPTV APK) |
||
|
General |
Demission (WxLxH) |
482mm×464mm×44mm (1U model) 482mm×493mm×133mm (3U model) |
|
Management |
2 separate Web GUI (one for Cards and Gateway, the other for IPTV Server) through ETH3 (3U model through ETH5) |
|
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
|
Power Supply |
AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
|
Order Guide (for Chassis)
|
Model No. |
Size |
Data Port |
Memory |
CPU |
Solid-State Disk (SSD) |
Mechanical Hard Disk |
|
YDS100A |
1U with 3 slots |
4x 2.5GE (1G and 2.5G self-adapt) |
8G |
J4105 |
240G/1T (as per order) |
N/A |
|
YDS100A3 |
3U with 6 slots |
2x SFP+ (1G/10G self-adapt), 6x 2.5GE (1G and 2.5G self-adapt) |
16G |
i7 |
240G/1T (as per order) |
4T/8T (as per order) |
Available Card Specification (more available cards later for development)
YDS902A 2 Tuner Descrambling Card
Stream in:
2 Tuner input, F Type,
Stream out:
16 SPTS output over UDP/RTP
DVB-CI:
2 independent common interface slots
Standard:
DVB-S/S2/S2X;
DVB-S
Input Frequency: 950-2150MHz
Symbol Rate: QPSK 1~45Msps
Signal Strength: -65~ -25dBm
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2
Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK 1~45Msps
16APSK 1~45 Msps
32APSK1~32 Msps
FEC Demodulation: 1/2, 2/3, 3/4,5/6,7/8, 4/5,5/6,8/9, 9/10
DVB-S2X
Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK/16APSK 0.5~45 Msps;
8APSK/32APSK: 0.5~40Msps
FEC Demodulation:
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9
Support Diseqc function
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Descrambling:
CAM/CI Quantity: 2
BISS Mode: Mode 1, Mode E; 32 BISS Keys
YDS942A 4 frequencies Descrambling Card
Stream in:
4 frequencies input (each RF in interface for 2 frequencies locking), F Type,
Stream out:
16 SPTS output over UDP/RTP
DVB-CI:
2 independent common interface slots
Standard: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable
Standard: DVB-C (J.83 A/C); J.83B
Input Frequency: 60MHz~890MHz
Symbol rate: 1000~9000Ksps
Constellation: 16/32/64/128/256 QAM; 64/256 QAM for J.83B
Standard: DVB-T/(T)
Frequency In: 60MHz~890MHz
Bandwidth: 5/6/7/8M bandwidth
PLP supported for DVB-(T)
Standard: ISDB-T
Input Frequency: 60-890MHz
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), generate PSI/ SI table automatically
Descrambling:
CAM/CI Quantity: 2
BISS Mode: Mode 1, Mode E; 32 BISS Keys
YDS228S 8 HDMI Encoder Card
Input: 8*HDMI (4 HDMI is available)
Output: 8*SPTS (4 SPTS if 4 HDMI) output over UDP/RTP/RTSP, Unicast/Multicast
Video Encoding:
Video format: MPEG-4 AVC/H.264
Input resolution: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i,1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i,
Output resolution: 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,
GOP structure: IP…P (P Frame adjustment, without B Frame)
Video Bit-rate: 1Mbps~13Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Support audio gain adjustment
Sampling rate: 48 KHz
Audio Bit-rate: 2: 48-384 kbps
Support Logo, Caption, QR Code insertion
YDS228S-V2 8 HDMI Encoder Card
Input: 8*HDMI (4 HDMI is available)
Output: 8*SPTS (4 SPTS if 4 HDMI) output over UDP/RTP/RTSP, Unicast/Multicast
Video Encoding:
Video format: HEVC/H.265, MPEG-4 AVC/H.264
Input resolution: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i,1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i,
Output resolution: 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,
GOP structure: IP…P (P Frame adjustment, without B Frame)
Video Bit-rate: 1Mbps~13Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Support audio gain adjustment
Sampling rate: 48 KHz
Audio Bit-rate: 48-384 kbps
Support Logo, Caption, QR Code insertion
YDS908 8 FTA DVB-S/S2/S2X Tuner Card
Stream in: 8 Tuner input, F Type,
Stream out: 512 SPTS out over UDP/RTP/RTSP, Unicast/Multicast
Tuner input: DVB-S/S2/S2X
Symbol rate: QPSK/8PSK/16APSK 0.5~45 Msps; 8APSK/32APSK: 0.5~40Msps
Input Frequency: 950-2150MHz
DVB-S Constellation: QPSK
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 Constellation: QPSK/8PSK/16APSK/32APSK
FEC Demodulation:
QPSK: 1/2, 2/3, 3/4, 5/6, 3/5, 4/5, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X Constellation: QPSK/8PSK/8APSK/16APSK/32APSK
FEC Demodulation:
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9, 9/10
Support Diseqc function
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Descrambling:
BISS Mode: Mode 1, Mode E; up to 120Mbps, 32 BISS Key
YDS928 8 FTA DVB-C/T/T2/ISDB-T Multi-Mode Tuner Card
Stream in: 8 tuner input, F Type
Stream out: 512 SPTS out over UDP/RTP/RTSP, Unicast/Multicast
Tuner input: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable
Standard: DVB-C (J.83 A/C); J.83B
Input Frequency: 60MHz~890MHz
Symbol rate: 1000~9000Ksps
Constellation: 16/32/64/128/256 QAM; 64/256 QAM for J.83B
Standard: DVB-T/(T)
Frequency In: 60MHz~890MHz
Bandwidth: 5/6/7/8M bandwidth
PLP Index: 0~255 for DVB-(T)
Standard: ISDB-T
Input Frequency: 60-890MHz
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), generate PSI/ SI table automatically
Descrambling:
BISS Mode: Mode 1, Mode E; up to 120Mbps, 32 BISS Keys
Test data for reference (1U Model:
|
Protocol conversion |
Programs |
Bitrate |
Terminals |
CPU utilization |
|
UDP to HTTP |
60 |
8M |
100 |
80% |
|
UDP to HLS |
60 |
8M |
120 |
65% |
|
UDP to HTTP |
60 |
2M |
400 |
80% |
|
UDP to HLS |
60 |
2M |
400 |
40% |
|
UDP to SRT |
45 |
8M |
--- |
80% |
|
UDP to RTMP |
50 |
8M |
--- |
80% |
Test data for reference (3U model):
|
Protocol conversion |
Programs |
Bitrate |
Terminals |
CPU utilization |
|
UDP to HTTP |
150 |
8M |
600 |
82% |
|
UDP to HLS |
150 |
8M |
1300 |
30% |
|
UDP to SRT |
130 |
8M |
--- |
75% |
|
UDP to RTMP |
150 |
8M |
--- |
80% |
