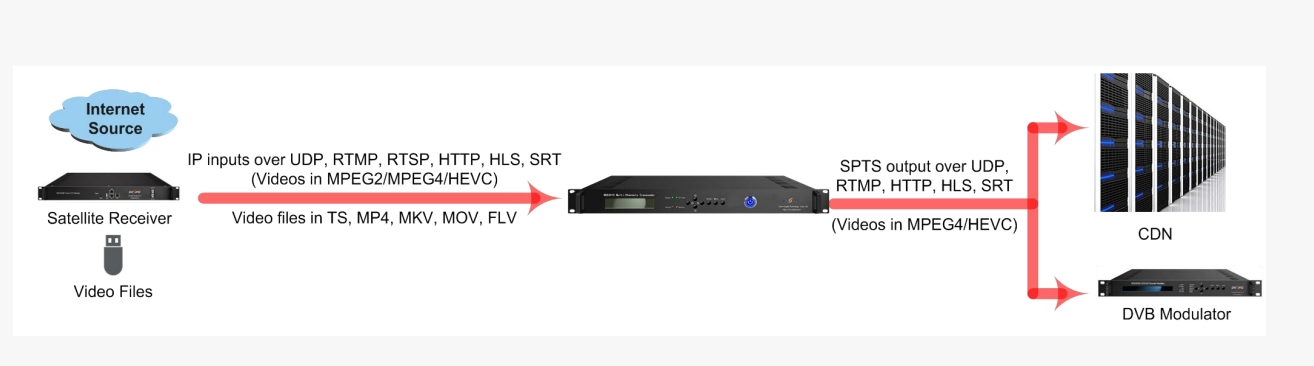

Transcoding Mode Example
Specifications
|
Input |
IP Stream Input |
2x GE port, RJ45, Protocol: UDP (MPTS/SPTS); RTMP, RTSP, HTTP, HLS, SRT (SPTS) |
|
Video file input |
TS, MP4, MKV, MOV, FLV |
|
|
Video |
Input Format |
MPEG-2/H.264/H.265 |
|
GOP |
0-60 |
|
|
Output Format |
H.264 (main/baseline/high profile); H.265 |
|
|
Resolution |
Input: 4K-50/25, 1080p-60/50, 1080i-60/50, 720p-60/50, 576i, 480i |
|
|
Output: 4K-50/25, 1080p-60/50, 1080p-30/25, 720p-60/50, 576p-25, 480p-30 |
||
|
Bitrate out |
0.5Mbps - 20 Mbps |
|
|
Audio |
Sampling rate |
44.1KHz, 48KHz |
|
Bitrate out |
32Kbps~640Kbps |
|
|
Video quality mode |
high, balanced, normal |
|
|
IP out |
2x GE port, RJ45, SPTS Protocol: UDP, RTMP (Client mode, push stream to server) RTMP, HTTP, HLS (Server mode, pull stream) SRT (just use caller mode and TS payload) |
|
|
System |
Web-base GUI and LCD/Key button |
|
|
Language: Chinese/English |
||
|
Ethernet software upgrade |
||
|
General |
Dimension |
482mm×328mm×44mm (WxLxH) |
|
Net weight |
Approx 4kg |
|
|
Temperature |
0~50℃(operation), -20~80℃(storage) |
|
|
Power Supply |
AC 100V-240V 50/60Hz, 2A |
|
|
Consumption |
≤150W |
|
Test data based on Balanced mode and Multicast output (for reference) -- Basic Model
|
Input |
Output |
Channel NO. |
|||
|
Resolution |
Video Format |
Resolution |
Video Format |
Bit Rate |
|
|
4K-50 |
H.265/H.264/MPEG2 |
576p-25/720p/1080p/4K-25/4K-50 |
H.265/H.264 |
0.5 - 20Mbps |
2-3 |
|
4K-25 |
576p-25/720p/1080p/4K-25 |
5-6 |
|||
|
1080p-60/50 |
480p-30/576p-25/720p/1080p |
10-12 |
|||
|
1080i-60 |
480p-30/576p-25/720p/1080p-30/25 |
19-21 |
|||
|
1080i-50 |
22-24 |
||||
|
720p-60/50 |
480p-30/576p-25 |
22-24 |
|||
|
480i/576i |
480p-30/576p-25 |
70-76 |
|||
Test data based on Balanced mode and Multicast output (for reference) -- Advanced Model
|
Input |
Output |
Channel NO. |
|||
|
Resolution |
Video Format |
Resolution |
Video Format |
Bit Rate |
|
|
4K-50 |
H.265/H.264/MPEG2 |
4K-50 |
H.265/H.264 |
0.5 - 20Mbps |
3-4 |
|
4K-25 |
6-8 |
||||
|
1080p/720p/576p-25/480p-30 |
11-14 |
||||
|
4K-25 |
4K-25 |
7-9 |
|||
|
1080p-60/50 |
12-14 |
||||
|
1080p-30/25, 720p-60/50 |
27-32 |
||||
|
576p-25/480p-30 |
32-38 |
||||
|
1080p-60/50 |
1080p-60/50 |
13-17 |
|||
|
1080p-30/25, 720p-60/50 |
29-34 |
||||
|
576p-25/480p-30 |
48-56 |
||||
|
1080i-60/50 |
1080p-30/25 |
28-32 |
|||
|
720p-60/50 |
30-36 |
||||
|
576p-25/480p-30 |
68-78 |
||||
|
720p-60/50 |
720p-60/50 |
30-36 |
|||
|
576p-25/480p-30 |
68-78 |
||||
|
480i/576i |
576p-25/480p-30 |
90-100 |
|||
