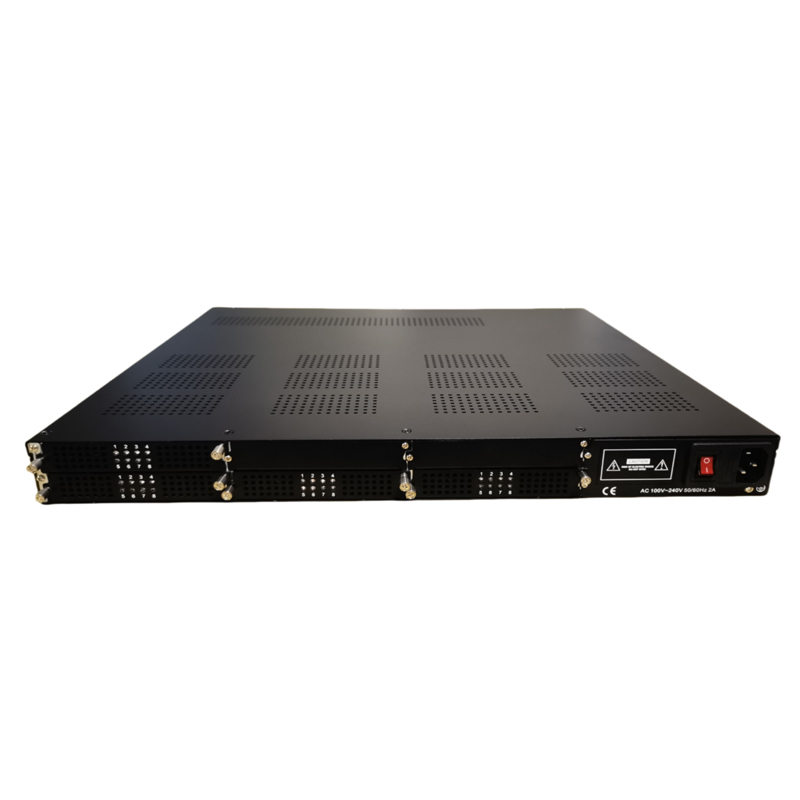

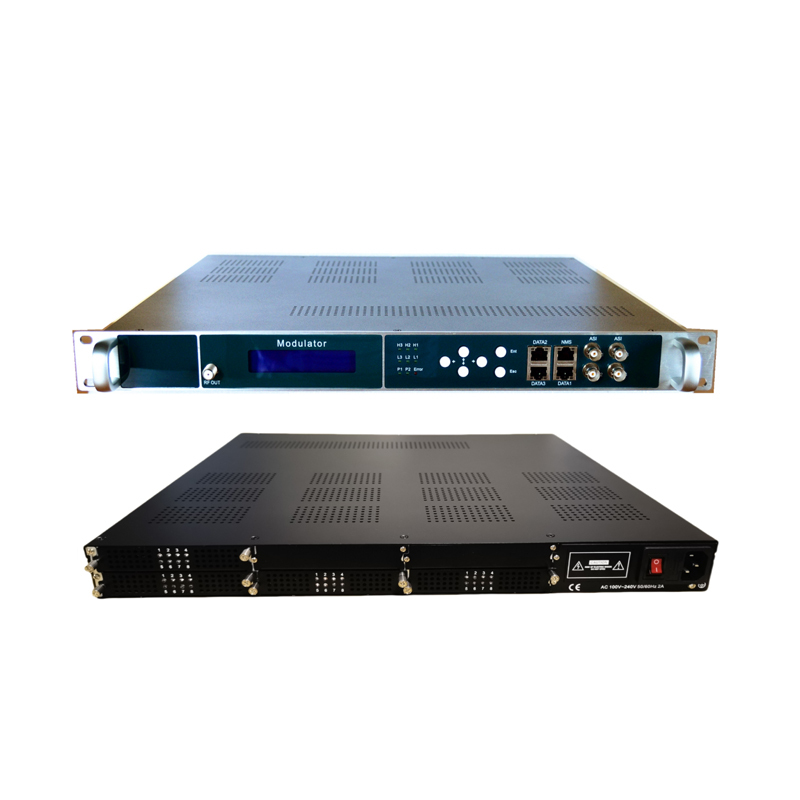

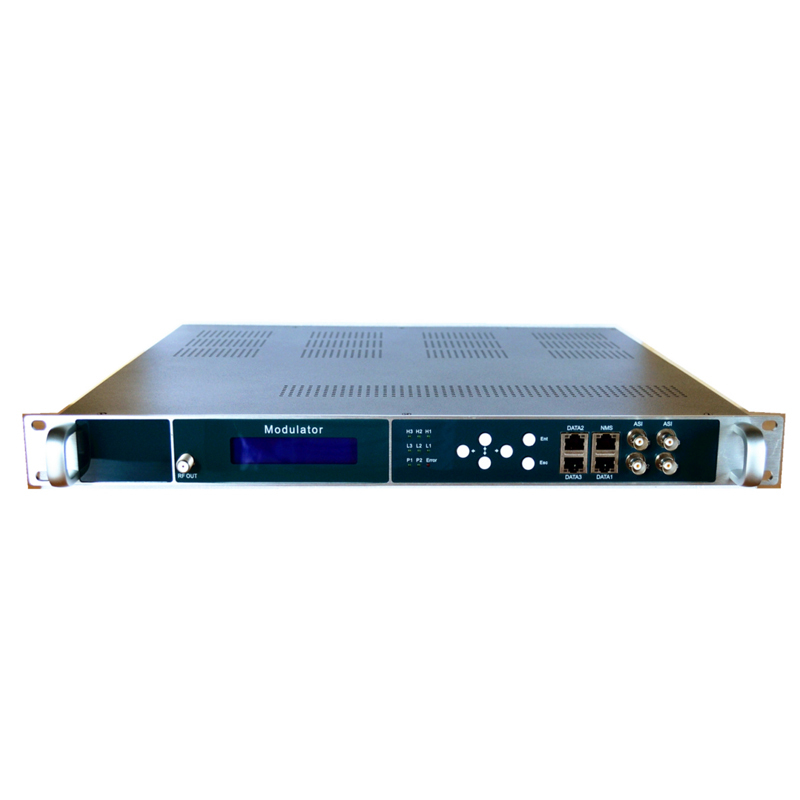

YDS9048AM series 16~48 in 1 analog modulator is the latest professional TV front-end equipment developed by our company for processing audio and video. The device is used for IP/ASI program input and then output via an analog modulated signal.supports 3 GE ports inputs.The analog modulation mechanism adopts modular design and pluggable structure.According to customer requirements, customers can flexibly choose 16/24/32/40/48 carrier output, with RF output frequencies ranging from 43.25 to 951.25MHz. In addition, the device provides 1 GE port output (MPTS output) and 4 ASI ports.The device has excellent performance and flexible configuration, easy to install and use.A single device integrates a complete set of front-end system functions, which is very suitable for use in hotels, clubs, hospitals, bathrooms and other TV systems.

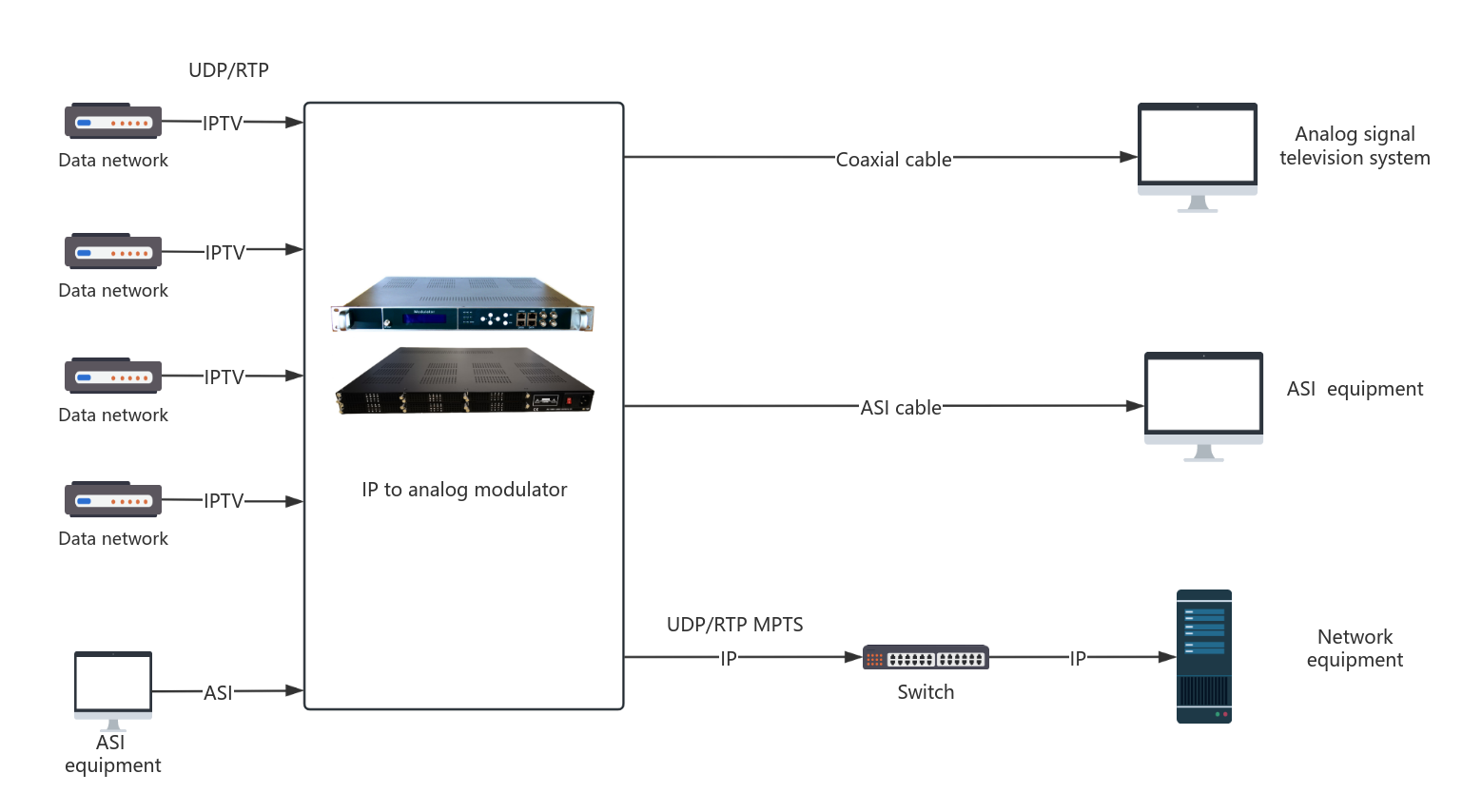

Note: The figure shows all the optional functions of this series of products, and the actual functions are subject to the specific customized functions.
|
Input |
3 GE ports input (Each port supports maximum 128 IP addresses input) |
|||||
|
2 ASI input |
||||||
|
Output |
16/24/32/40/48 carrier output（optional） |
|||||
|
1 GE output, MPTS output |
||||||
|
2 ASI output |
||||||
|
Data protocol |
protocol |
UDP/RTP, 7 packets, SPTS, MPTS |
||||
|
Transport protocol |
TS over UDP/RTP，Unicast/multicast，IGMP V2/V3 |
|||||
|
Packet length |
188/204 Bytes |
|||||
|
Decoding |
Video |
HEVC/H. 265,H.264/AVC Level 4.1 HP, MPEG-2 MP@HL |
||||
|
Audio |
MPEG-1/2 Layer 1/2, AAC,AC3 |
|||||
|
Resolution |
HEVC/H.265: 1080@60P,1080@60I,1080@50P, 1080@50I,720@60P,720@50P; H.264/AVC: 1080@60I, 1080@50P, 1080@50I,1080@30P, 1080@25P, 720@60P, 720@50P, 576@50I, 480@60I; MPEG2:1080@60I,1080@50I,720@60P, 720@50P,576@50I,480@60I |
|||||
|
Display ratio |
4:3/16:9 |
|||||
|
Modulation |
Carrier channel |
16/24/32/40/48 |
||||
|
Impedance |
75Ω,F connector |
|||||
|
Frequency range |
43.25~951.25MHz |
|||||
|
Output bandwidth |
400MHz |
|||||
|
Output level |
-35 ~-5dBm |
|||||
|
Television standard |
PAL,N/NC/M；NTSC,M/J/4.43；SECAM |
|||||
|
SNR |
≥50dB |
|||||
|
Miscellaneous |
Size(L×W×H) |
482mm×410mm×45mm |
||||
|
Temperature |
0~45℃(Operation)；-20~80℃(Storage) |
|||||
|
Voltage range |
AC100~240V，50/60Hz |
|||||
|
Product model |
Device ports |
Input |
Output |
|||
|
YDS9016 |
3 Gigabit port； 1 NMS port； 4 ASI port； 1 RF out |
Maximum 3*128 IP input; 2 ASI input |
16 carrier output（2 module） MPTS output 2 ASI output |
|||
|
YDS9024 |
3 Gigabit port； 1 NMS port； 4 ASI port； 1 RF out |
Maximum 3*128 IP input; 2 ASI input |
24 carrier output（3 module） MPTS output 2 ASI output |
|||
|
YDS9032 |
3 Gigabit port； 1 NMS port； 4 ASI port； 1 RF out |
Maximum 3*128 IP input; 2 ASI input |
32 carrier output（4 module） MPTS output 2 ASI output |
|||
|
YDS9040 |
3 Gigabit port； 1 NMS port； 4 ASI port； 1 RF out |
Maximum 3*128 IP input; 2 ASI input |
40 carrier output（5 module） MPTS output 2 ASI output |
|||
|
YDS9048 |
3 Gigabit port； 1 NMS port； 4 ASI port； 1 RF out |
Maximum 3*128 IP input; 2 ASI input |
48 carrier output（6 module） MPTS output 2 ASI output |
|||
|
NOTE: 1．A single analog modulation module provides 8 channel outputs. Customers can choose the number of modules according to their needs. Currently, the support extends to up to 6 modules and supports up to 48 carrier analog outputs. 2．Disconnect the power supply before inserting or expanding a module for safety. |
||||||
