Description

Product Overview

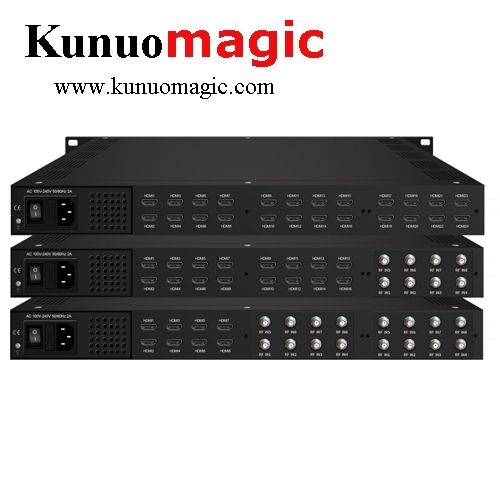

YNS3536S is a professional high integration device which includes encoding (and de-modulation), multiplexing, and modulation functions in one case. It supports 8/16/24 HDMI (or HDMI plus DVB-S2/S2X tuner) inputs, 1 ASI input, 1 USB player input and 128 IP inputs via the GE port, and output by multiple DVB-C (or DVB-T/ATSC/ISDB-T optional) carrier channels. It also supports MPTS output as mirror of carriers through the GE port and 1 ASI out as mirror of one of the carriers. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…

Technical Specifications

Input	8/16/24 HDMI inputs for option (or 8HDMI+8DVB-S2/S2X inputs, or 8HDMI+16DVB-S2/S2X inputs, or 16HDMI+8*DVB-S2/S2X inputs) 1 ASI in for re-mux 1 USB Player input for re-mux (“xxx.ts” video) 128 IP input over UDP and RTP, GE port, RJ45
Video (HDMI Input)	Resolution	Input		1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i,
		Output		1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,
	Encoding	MPEG-4 AVC/H.264
	Bit-rate	1Mbps~13Mbps each channel
	Rate Control	CBR/VBR
	GOP Structure	IP…P (P Frame adjustment, without B Frame )
Audio (HDMI Input)	Encoding	MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
	Sampling rate	48KHz
	Resolution	24-bit
	Audio Gain	0-255 Adjustable
	MPEG-1 Layer 2 Bit-rate	48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
	LC-AAC Bit-rate	48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
	HE-AAC Bit-rate	48/56/64/80/96/112/128 kbps
Tuner Section	DVB-S	Input Frequency	950-2150MHz
		Symbol Rate	0.5~45 Msps
		Constellation	QPSK
		FEC	1/2, 2/3, 3/4, 5/6, 7/8
	DVB-S2	Input Frequency	950-2150MHz
		Symbol Rate	QPSK/8PSK/16APSK: 0.5~45 Msps 32APSK:0.5~40 Msps
		Constellation	QPSK/8PSK/16APSK/32APSK
		FEC	QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9
		Max input bitrate per tuner	≤170 Mbps
	DVB-S2X	Symbol Rate	QPSK/8PSK/16APSK: 0.5~45 Msps; 8APSK/32APSK: 0.5~40 Msps
		Constellation	QPSK/8PSK/16APSK/8APSK/32APSK
		FEC	QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9
		Max input bitrate per tuner	≤170 Mbps
	Signal Strength	-65 ~ -25dBm
Multiplexing	Maximum PID Remapping	255 input per channel
	Function	PID remapping ( automatically or manually)
		Accurate PCR adjusting
		Generate PSI/ SI table automatically
Modulation	DVB-C	QAM Channel		12 non-adjacent carriers output (maximum bandwidth 192MHz)
		Standard		EN300 429/ITU-T J.83A/B
		MER		≥40db
		RF frequency		50~960MHz, 1KHz step
		RF output level		-20~+3dbm, 0.1db step
		Symbol Rate		5.0Msps~7.0Msps, 1ksps stepping
				J.83A	J.83B
		Constellation		16/32/64/128/256QAM	64/256 QAM
		Bandwidth		8M	6M
	DVB-T	Standard		EN300744
		FFT mode		2K,4K, 8K
		Bandwidth		6M, 7M, 8M
		Constellation		QPSK, 16QAM, 64QAM
		Guard Interval		1/4, 1/8, 1/16, 1/32
