| ENCODING | ||||||||
| Input Connector | HDMI 1.4 | |||||||
| VIDEO | Encoding | MPEG 2 | ||||||
| Input Resolution | 1920*1080_60P; 1920*1080_50P; 1920*1080_60i; | |||||||
| 1920*1080_50i; 1280*720_60P; 1280*720_50P | ||||||||
| Bitrate | 2 ~ 18 Mbps | |||||||
| AUDIO | Encoding | MPEG 1 Layer II, AC3,AAC-LC,HE-AAC | ||||||
| Sample Rate | 32/44.1/48KHz | |||||||
| Bitrate | 384kbps | |||||||
| MODULATION | ||||||||
| ATSC | Standard | ATSC A/53 (6M) | ||||||
| Constellation | 8VSB | |||||||
| MER | ≥ 32 dB | |||||||
| DVB-C J.83A | Standard | Annex A (8M) | ||||||
| Constellation | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM | |||||||
| MER | ≥ 36 dB | |||||||
| Symbol Rate | 3 ~ 6.952 Ms/s | |||||||
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | |||||||
| Guard Interval | 1/32, 1/16, 1/8, 1/4 | |||||||
| DVB-C J.83B | Standard | Annex B (6M) | ||||||
| Constellation | 64QAM, 256QAM | |||||||
| MER | ≥ 36 dB | |||||||
| DVB-T | Standard | DVB-T COFDM | ||||||
| Bandwidth | 6M, 7M, 8M | |||||||
| Constellation | 4QAM, 16QAM, 64QAM | |||||||
| MER | ≥ 32 dB | |||||||
| Transmission Mode | 2K, 8K | |||||||
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | |||||||
| Guard Interval | 1/32, 1/16, 1/8, 1/4 | |||||||
| DTMB | Standard | GB20600-2006 (8M) | ||||||
| Constellation | 4QAM, 16QAM, 32QAM, 64QAM | |||||||
| MER | ≥ 32 dB | |||||||
| Interleaving Mode | INTLV_NONE, INTLV_240, INTLV_720 | |||||||
| Rate Code | 0.4, 0.6, 0.8 | |||||||
| Carrier Type | Multi-carrier, Single-carrier | |||||||
| Sync Frame | 420, 595, 945, | |||||||
| PN Phase | Variable, Constant | |||||||
| ISDB-T | Standard | ARIB STB-B31 (6M) | ||||||
| Constellation | QPSK, 16QAM, 64QAM | |||||||
| MER | ≥ 42 dB | |||||||
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | |||||||
| Guard Interval | 1/32, 1/16, 1/8, 1/4 | |||||||
| Transmission Mode | 2K, 4K, 8K | |||||||
| Interleave | 0, 1, 2, 3 | |||||||
| OUTPUT | ||||||||
| RF | Output Level | ≥ 35 dBmV | ||||||
| Output Frequency Range | 50 ~ 999.999MHz | |||||||
| Out-band Rejection | ≥ 60dB | |||||||
| LOOP OUTPUT | ||||||||

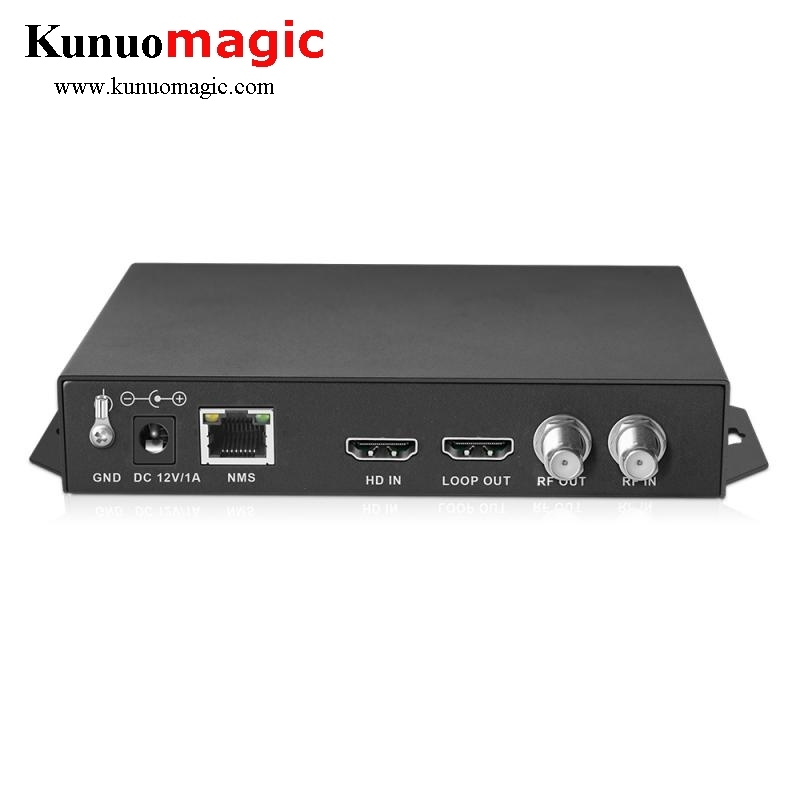

| HDMI OUT | HDMI 1.4 | RF LOOP | F Connector | |||||
| SYSTEM | ||||||||
| Management | Control Keys; NMS; | LCN Insertion | YES | |||||
| Language | English | Upgrade | NMS | |||||
| GENERAL | ||||||||
| Power Supply | AC 90 ~ 240 V | Power Consumption | ||||||
