| Item | Description |
| Video parameters | |
| Input resolution 1080P:1920*1080@60/50Hz; UXGA:1600*1200@60Hz; SXGA: 1280*1024@60Hz; 720P: 1280*720@60/50Hz; XGA:1024*768@60Hz Output resolution (loop out) 1080P:1920*1080@60/50Hz; UXGA:1600*1200@60Hz; SXGA: 1280*1024@60Hz; 720P: 1280*720@60/50Hz; XGA:1024*768@60Hz |
|
| Encoding Parameters | |
| Encoding type: H.265 Main Profile; H.264 Baseline/Main/High Profile Bit rate frame rate: Support CBR/VBR, Bitrate adjustable 32Kbps~16Mbps Frame rate: 1-60fps Video encoding capability: Dual stream: 1ch 1080p@60fps+1ch VGA@30fps Audio encoding capability: AAC-LC, G.711a |
|
| Other Functions | |
| Audio and video transmission: Support RTSP, RTMP, Onvif, HTTP, UDP/Multicast, P2P Data Transparent Transmission: Supports two-way transparent transmission of serial data through the network Video storage: Support MP4 format video storage Support loop recording Device management: Built-in webserver, which can be managed and configured through a browser Support network remote firmware upgrade |
|
| Peripheral interface | |

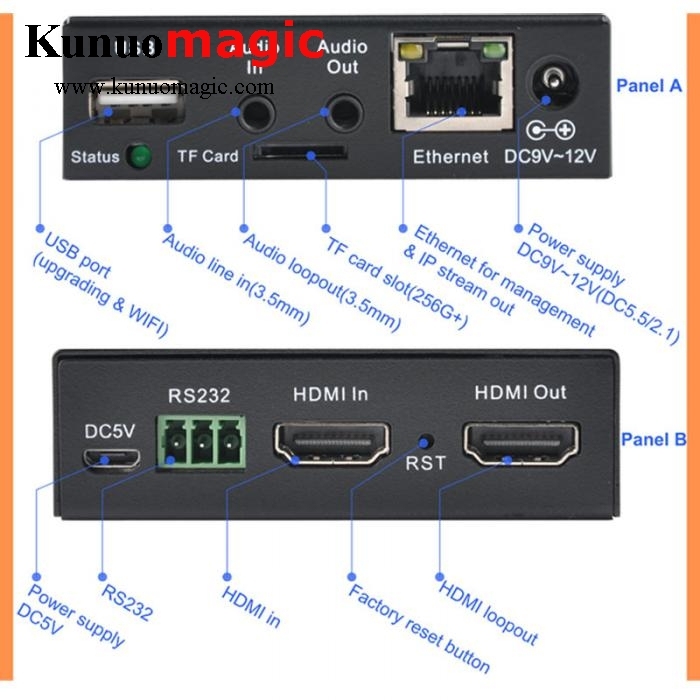

| Video input: 1*HDMI interface Video loop out: 1*HDMI interface Audio interface: 1*input, 1*output, 3.5mm interface (level: 2.0Vp-p, impedance: 1KΩ), supports embedded audio Wireless network: support wireless network transmission, built-in WiFi module Serial interface: 1*RS232 serial data or 1*RS485 communication interface as per order Local storage: 1 TF card slot (support 128GB TF card storage) |
|
| Management | |
| Configuration Interface: web-based UI | |
| Upgraded: via network | |
| Connector: RJ45, 10/100M Ethernet interface | |
| The Working Environment | |
| Dimension | Rack 125x75x23mm |
| Gross Weight | 0.13/0.325KG |
| Temperature | 0 to 45(For working), -20 to 80(For storing) |
| Input Voltage | DC5.5/2.1 interface DC12V |
| Power Consumption | 5W |
