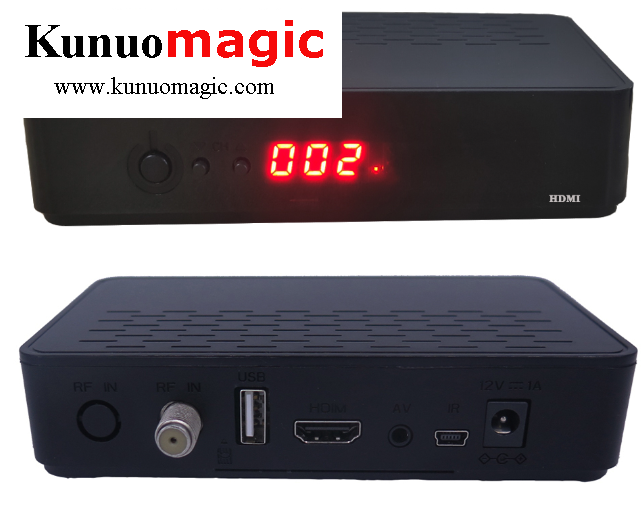

HIGH DEFINITION H.264/H.265/MPEG4/AVS+ Set Top Box DVB-T2

Main Features

• DVB-T2/T set top box compliant with MPEG2 and MPEG4 and H.264 and H.265 and AVS.

• Support CA condition receiving system, Dexin,Kingvon, NSTV,Sumavision, etc.

• Compatible with HDTV channels and equipped with HDMI connector,High-performance achieve from standard

definition to high definition full forwarding smoothly.

• Support multiple star level QAM modulation mode(16/32/64/128/256QAM).

• Auto search & Blind search & network search function.
• Support new version software upgrading via OTA and USB mode.

• Support customized options, such as Frequecy list setting, Logo in boot screen, logo in STB and

package.More options as you want.

Key Parameters

Signal CH standard:DVB-T2 terrestrial signal

Input Frequency:50MHz-860MHz

Decoding Modulation mode:QPSK，16/64/256QAM

Video decoding:MPEG-2MP@ML/MPEG-4SP@ASP/H.263/H.264/H.265

Video output:1080p50/1080i/720p/576p

Voice decoding:MPEG-1Layer1&2/MPEG-2/AAC/AC3/RA/WMA

Voice mode:Left CH, right CH, stereo

Flash memory:64M bits

RAM memory:512M bits/1G bits（Optional）

Panel display:3 LED Indicator,Power Red LED,Lock Green LED

Panel button:CH+, CH

RF input:English F-Female

Voice Vedio output:RCA out (CVBS, Audio L/R)

HDMI output:HDMI v1.4a

USB interface:1xUSB2.0 host device

Power consumption:3-5W

STB Dimension:140*83*32mm

Assessories

• AV Cable Or HDMI Cable ( Optional)
• Learning remote controller (AAA prepared by customer)
• Power adaptor,12V/1A, UK, US,EU plug ( Optional).
