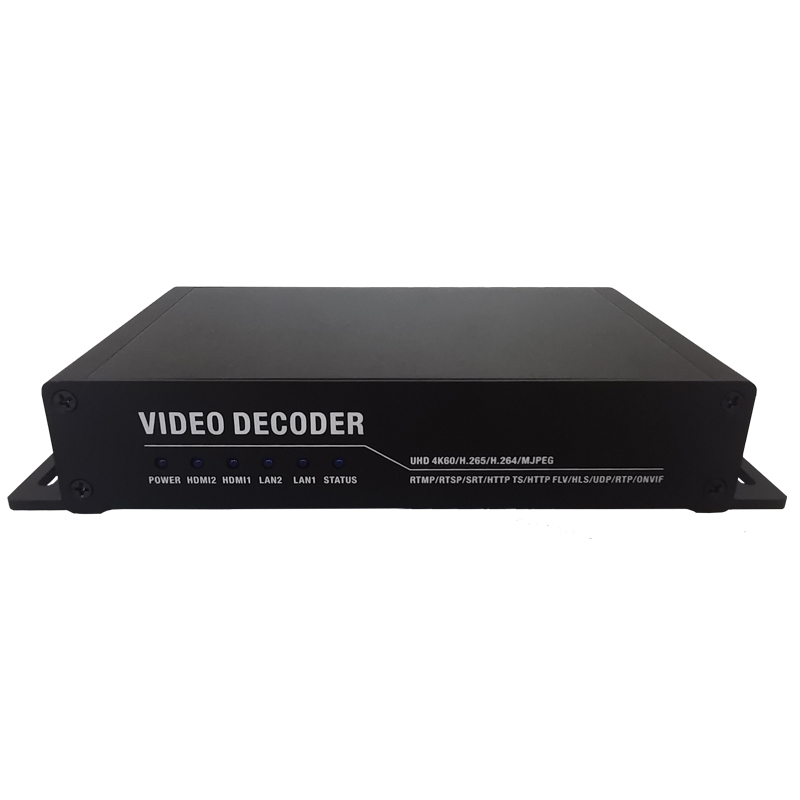

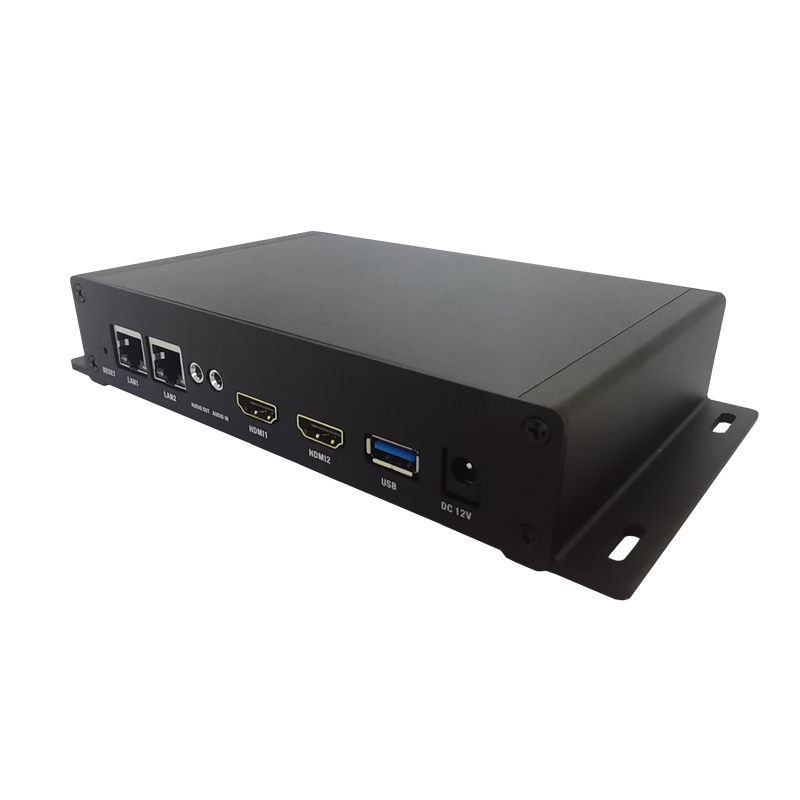

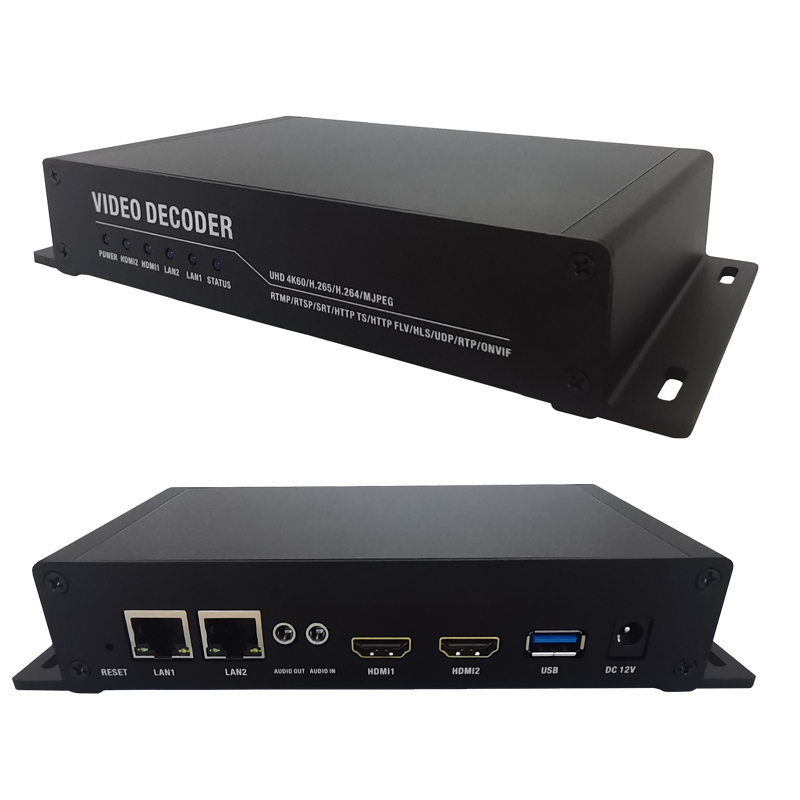

Digital System RTMP RTSP UDPHTTP SRT RTP 2 HDMI H.265/HEVC 4K 60FPS ProVideo Streaming Decoder

No.YDS5000D
IP Protocol Input:RTMP/RTMPS/RTSP TS/RTSP UDP/HTTP/SRT
Output :2*HDMI
Decoding Capacity:Maximum supports 1 channel 2160P@60, 4 channels 2160P@30, 16 channels 1080P@30
Decoding Video Format :H.265/HEVC main profile, H.264/AVC baseline/main/high profile
  • Digital System RTMP RTSP UDPHTTP SRT RTP 2 HDMI H.265/HEVC 4K 60FPS ProVideo Streaming Decoder
  • Digital System RTMP RTSP UDPHTTP SRT RTP 2 HDMI H.265/HEVC 4K 60FPS ProVideo Streaming Decoder
  • Digital System RTMP RTSP UDPHTTP SRT RTP 2 HDMI H.265/HEVC 4K 60FPS ProVideo Streaming Decoder

Description

Overview

YDS5000D H.265/HEVC ProVideo Streaming Decoder with 2 HDMI Interface output, adopt advanced H.265 Video compression technology, integrated data transmission over RTMP/RTMPS/RTSP TS/RTSP UDP/HTTP TS/HTTP FLV/UDP/SRT/RTP. With embedded operating system,each HDMI port with 36 image Splicing out when two HDMI port output same picture, with 16 image splicing when two hdmi port output different pictures.

This multi-channels Decoder compatible with various brand IP cameras on the market, you can find the RTSP address of the IP camera through the built-in ONVIF lookup tool and get the RTSP address and decoding multi-channels splicing out from 2 hdmi interface to monitor display screen.

It widely used in the application that need decoding the IP streaming from multi Ip cameras and splicing out to one/two monitors .



Features

* H.265/HEVC main profile, H.264/AVC baseline/main/high profile
* Decoding Capacity:Maximum supports 1 channel 2160P@60, 4 channels 2160P@30, 16 channels 1080P@30
* Up to 4K@60fpsout (max 1 channel 4K@60 fps or 4 channels 4K@30 fps out)
* Support 2 HDMI interface output(max 36 image Splicing each hdmi out)
* With RTMP/RTMPS/RTSP TS/RTSP UDP/HTTP TS/HTTP FLV/UDP/SRT/RTP protocol input
* Support Multi-channel decoding at the same time
* Humanization GUI, easy to check the OSD,IP address and other decoding parameters on field







Specification

SPECIFICATIONS

Network protocol

Protocol

RTMP/RTMPS/RTSP TS/RTSP UDP/HTTP TS/HTTP FLV/UDP/SRT/RTP



Video decoding capacity

Decoding format

H.265/H.264

Frame Rate

1-60fps

Bit rate(kbit)

32kbps-32Mbps

Resolution

Maximum supports 1 channel 2160P@60, 4 channels 2160P@30, 16 channels 1080P@60, 25 channels 720P@25, 36 channels 720P@25

Channel number

Up to 36 Channels



Audio decoding capacity

Decoding format

G711A/G711U/AAC+/AAC++/MP2/MP3

Audio mode

Mono/Left, Right/Stereo

Sample rate(Hz)

8KHz/11.25KHz /22.5KHz /44.1KHz /48KHz

Channel number

1 Channel



Video Output

HDMI

3840x2160P60/3840x2160P50/3840x2160P30/3840x2160P25/3840x2160P24/2560x1600P60/2560x1440P60/2560x1440P30/1920x2160P30/1920x1200P60/1600x1200P60/1920x1080P60/1920x1080i60/1920x1080P50/1920x1080i50/1920x1080P30/1920x1080P25/1920x1080P24/1366x768P60/1280x720P60/1280x720P50/720x576P60/720x480P60

Color

Brightness, Contrast, Hue, Saturation can be adjustable



Audio Output

HDMI audio embedded

48KHz stereo output

3.5mm

Stereo output(Left&Right)

Audio control

Enable/Disable



Physical and Power

Network

1000M

Management

Web management

Power

12V/DC, 2A

Power Consumption

<4W

Working temperature

-20°C +60°C

Working humidity

<90%, non-condensing

Dimension

197mmx105mmx35mm

Weight

0.5kg
