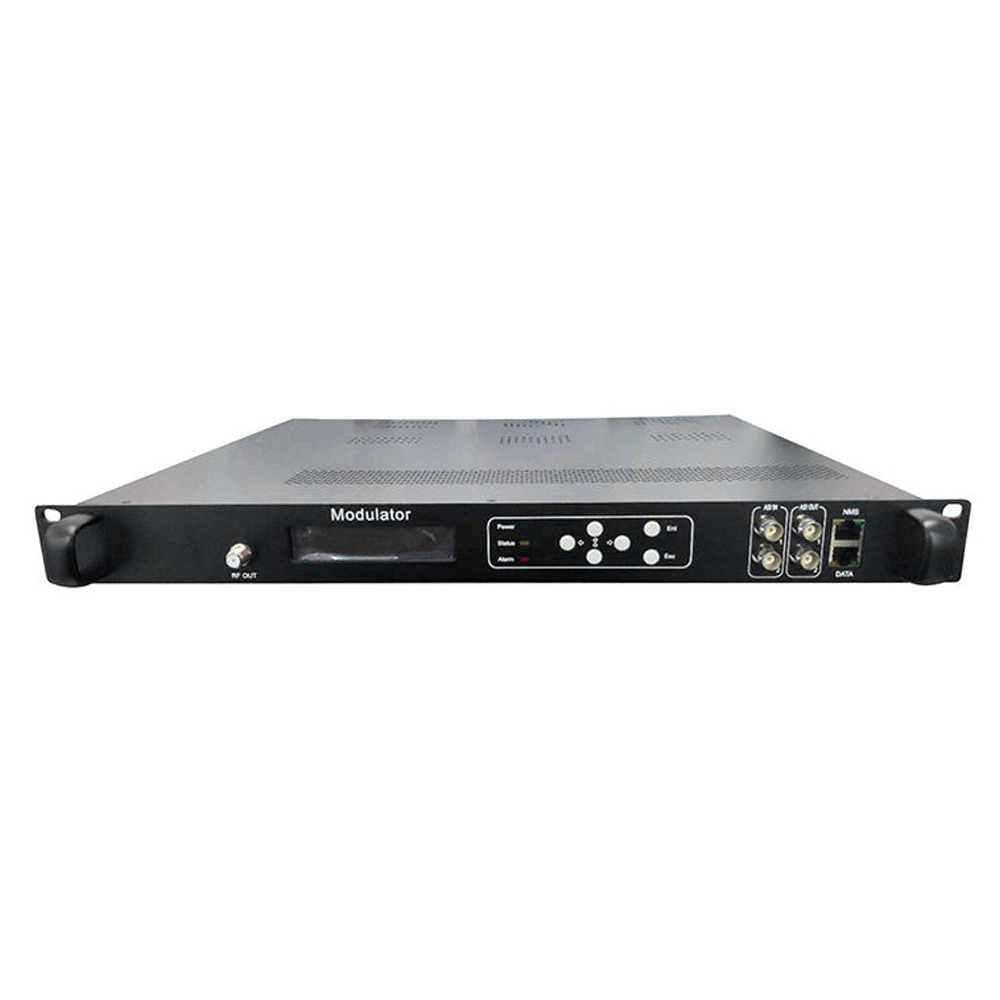

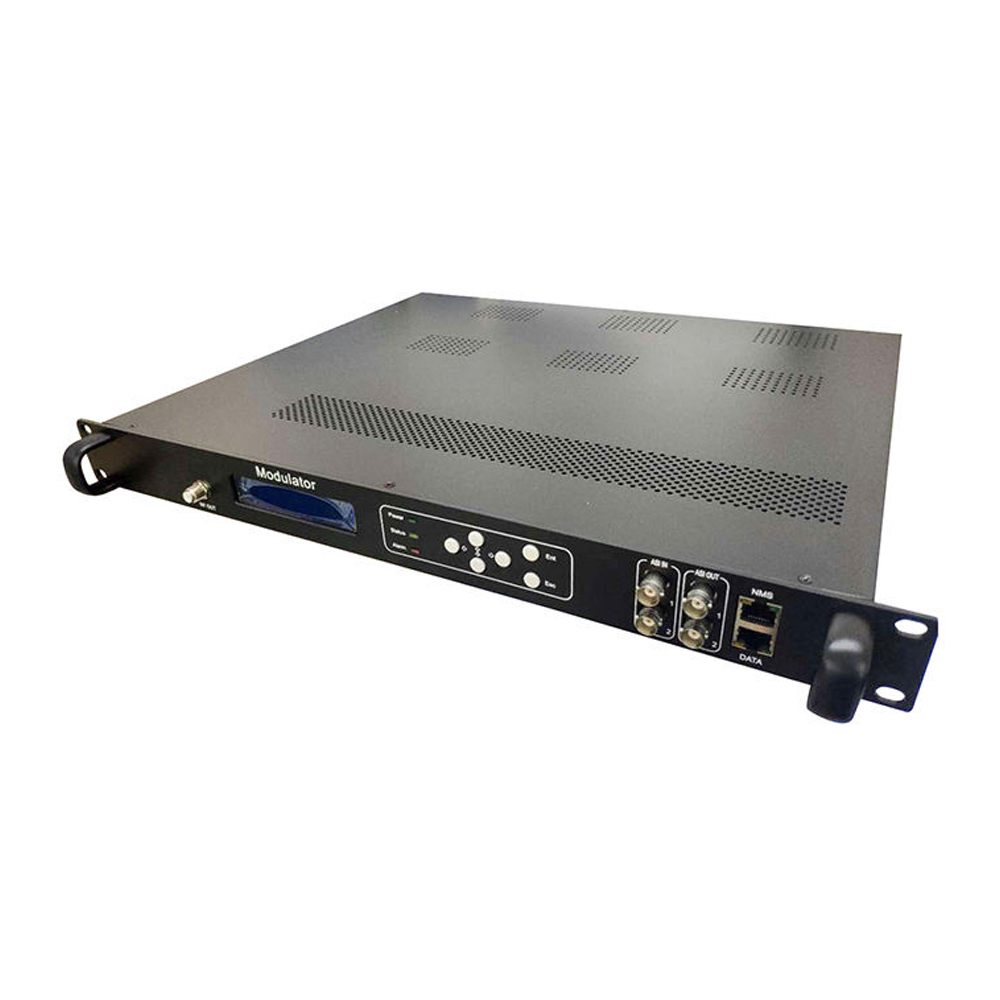

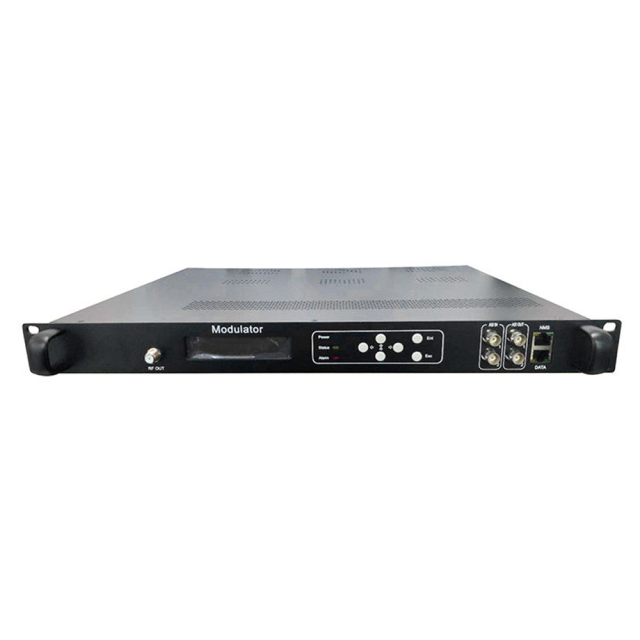

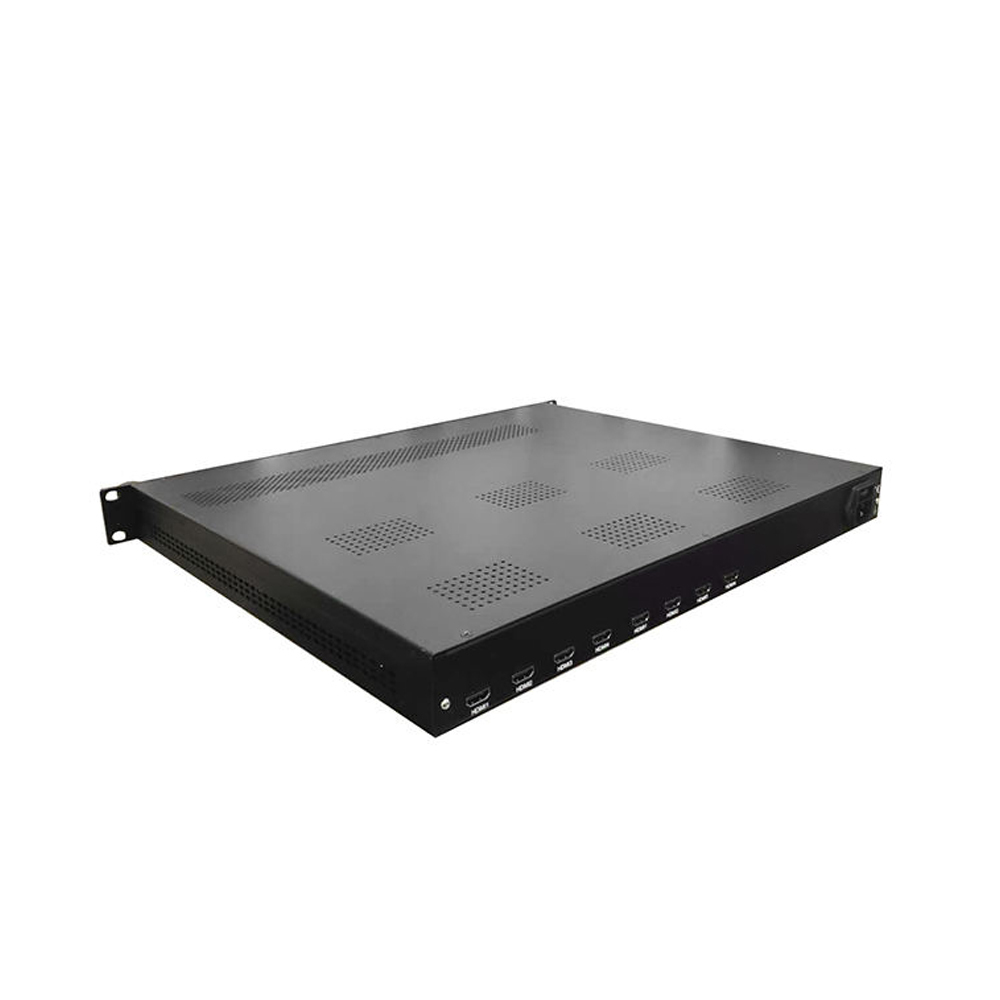

The YDS8824EM series is the latest cost-effective hdmi to dvb c encoder modulator. It supports 4 / 8 / 12 / 16 / 20 / 24 channels HDMI input, 1 channel Gigabit IP input / output; 8 channel(ATSC、ISDBT、DTMBT、DVB-C/-T) output, MPTS and SPTS output. With high integration, great performance and low cost, Integrating a complete front-end system functions, this device is highly welcomed in small digital TV transmission systems such as hotels, clubs, hospitals,etc.
2 Key Features
|
Input |
HDMI(4/8/12/16/20/24 HDMI) |
||
|
2*ASI input |
|||
|
Output |
RF output 4/16/32 DVB-C/QAM or 4/816/24 DVB-T/ATSC/ISDBTFrequency |
||
|
2*ASI output |
|||
|
IP output, 512 SPTS/ 8 MPTS |
|||
|
Video Encoding
|
Encode Format |
MPEG-4 AVC/H.264 |
|
|
Input port |
HDMI |
||
|
Input Resolution |
1920×1080P/1920×1080i/1280×720P/720x576i/a 720x480i @50/59.94Hz |
||
|
Output Resolution |
1920×1080_25P_30P_50P_60P, 1280×720_25P_30P_50P_60P, 720x576_25P,720x480_30P |
||
|
Code Rate |
1Mbps~13Mbps（each channel) |
||
|
Rate Mode |
CBR、VBR |
||
|
Video Encoding |
Encode Format |
MPEG1 Layer2 |
|
|
Sample Rate |
48KHz |
||
|
Bit Rate |
64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps, 384kbps |
||
|
Modulation Mode |
DVB-T |
Standard |
EN300744 |
|
FFT |
2K |
||
|
Bandwidth |
6M, 7M, 8M |
||
|
Constellation |
QPSK, 16QAM, 64QAM |
||
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
||
|
MER |
≥37dB |
||
|
RF frequency |
96~864MHz, 1KHz step |
||
|
RF output level |
-35~ -5dBm, 0.1db step |
||
|
DVB-C |
Standard |
EN300 429/ITU-T J.83A/B |
|
|
MER |
≥37db |
||
|
RF frequency |
96~864MHz, 1KHz step |
||
|
RF output level |
-35~-5dBm , 0.1dBm step |
||
|
SR |
5.0Msps~7.0Msps, 1ksps step |
||
|
Constellation |
16/32/64/128/256QAM |
||
|
Bandwidth |
6~8M |
||
|
DTMBT |
Standard |
DTMB GB20600-2006 |
|
|
Constellation |
4QAM、16QAM、32QAM、64QAM |
||
|
MER |
≥37dB |
||
|
RF frequency |
96~864MHz，1kHz step |
||
|
RF output level |
-35dBm~-5dBm，0.1dB step |
||
|
ATSC |
Standard |
ATSC A/53 |
|
|
MER |
≥37dB |
||
|
RF frequency |
96~864MHz, 1KHz step |
||
|
Constellation |
8VSB |
||
|
ISDBT |
Standard |
ARIB STD-B31 |
|
|
FFT |
2K |
||
|
Constellation |
DQPSK, QPSK, 16QAM, 64QAM |
||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
||
|
Hierarchical mode |
A |
||
|
Bandwidth |
6M |
||
|
System |
Web/NMS |
||
|
中文/English |
|||
|
Miscellaneous |
Dimensions |
482mm×410mm×45mm |
|
|
Weight |
5-8kg |
||
|
Temperature |
0~45℃(Operation)；-20~80℃(Storage) |
||
|
Voltage range |
AC100~240V，50/60Hz |
||
|
Power consumption |
<90W |
||
