Product Overview

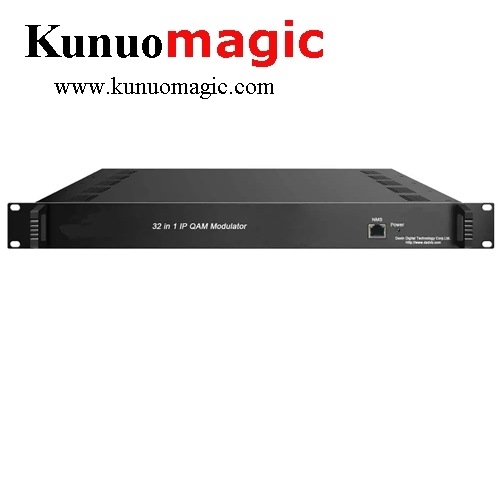

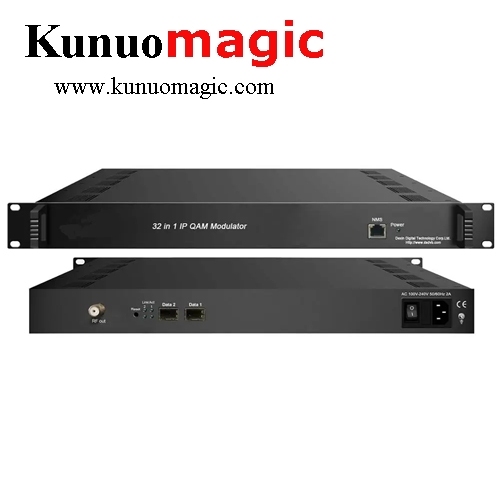

YDS3332 32 in 1 IP QAM modulator is Kunuomagic Mux-scrambling-modulating all-in-one device. It supports maximum 1024 IP input through the GE port and 32 multiplexing scrambling QAM (DVB-C) modulating channels with non-adjacent carriers (50MHz~960MHz) output through the RF output interface. Its pay-as-you-grow modular design and flexible configuration are making it extremely scalable, very reliable with high performance, all of which are adaptable to newly generation CATV broadcasting system.
Key Features

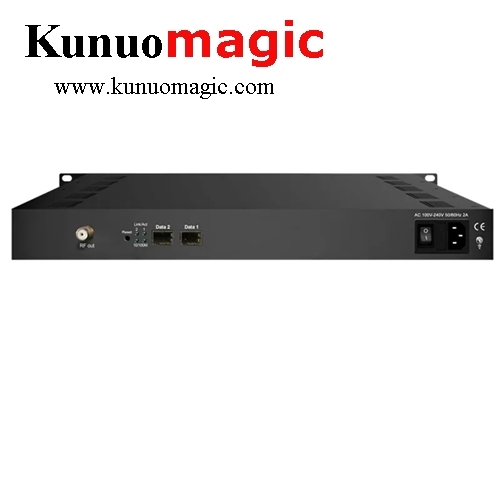

* 2 GE input, Data1 and Data2 (SFP interface optional)
* Supports up to 1024 channels TS over UDP/RTP, unicast and multicast, IGMP v2v3
* Max 840Mbps for each GE input
* Supports accurate PCR adjusting
* Supports CA filtering, PID remapping and PSI/SI editing
* Supports up to 256 PIDS remapping per channel
* Support 32 multiplexed or scrambled TS over UDP/RTP/RTSP output
* 32 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
* Supports RS (204,188) encoding
* Support Web-based Network management

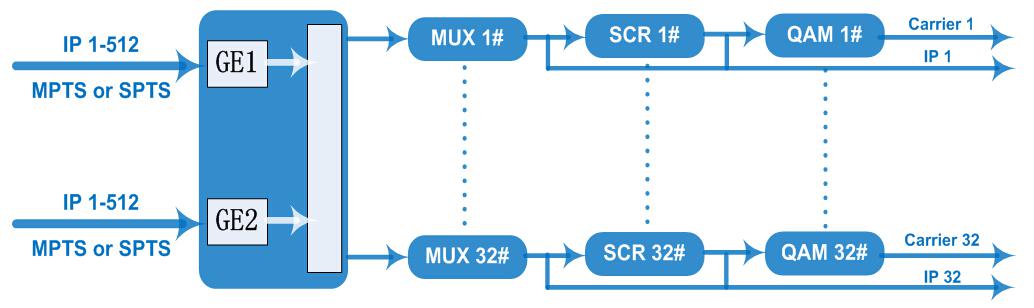

Inner Principle Chart
