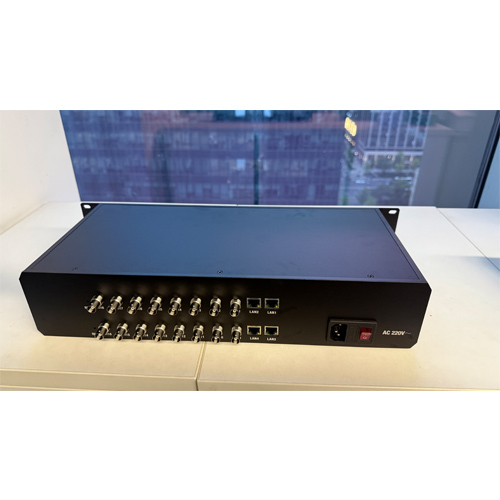

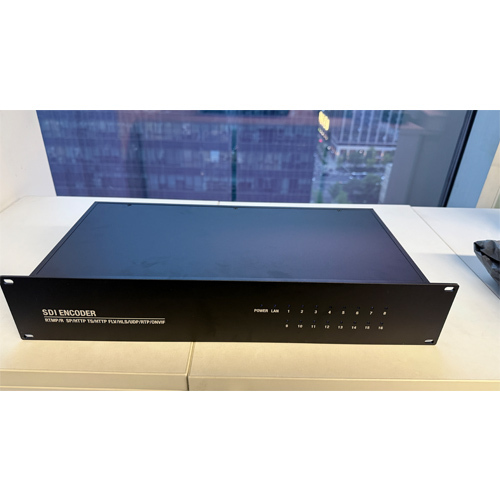

H.264/H.265 16CH SDI Video Encoder - which supports input SDI max resolution at 1080p60fps,This Encoder works with HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
Product features:
1. Support 16 Channels SDI input and encoding simultaneously.
2. Adopts professional encoding chip, embedded HiLinux System, high stability and efficiency.
3. Friendly Web Control UI, default IP is 192.168.1.168.
4. Support HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.
5. Support output Multi RTMP(S) (Main stream & Sub stream) to different Media Streaming Server.
6. Provide custom resolutions, Main Stream Preset Resolutions – 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270, etc.
7. Support Text and image insert as Stream Logo for Main stream & Sub stream.
8. Automatic detect the input video signals, output stream will show no signals when input signals interrupted.
9. Output Stream bitrate adjustable.
11. Support Audio digital gain.
12. Support firmware upgrade.
13. Support remote control via router port forward.
Specification:
|
Interfaces |
|
|
Video Input |
16*SDI input Max @1080P 60FPS |
|
Ethernet |
1000Mbps, RJ-45 |
|
Video Encoding |
|
|
Video Format |
H.264/AVC High/Main/Baseline Profile |
|
Video Resolution |
support 16 channels 1080p@60fps |
|
Video Bitrate |
0.1~32Mbps |
|
Video FPS |
5-60FPS |
|
Bitrate Control |
VBR/CBR |
|
Streaming Protocols |
HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) ONVIF |
|
Audio Encoding |
|
|
Audio Format |
AAC/AAC+/AAC++/MP3/MP2/AC3 G711 |
|
Sample Rates |
44.1kHz/48kHz |
|
Bitrate |
12~640kbps |
|
System |
|
|
Control Method |
Web based management – IP 192.168.1.168 |
|
Language |
Chinese-English control interface |
|
Firmware |
Ethernet software upgrade |
|
Working environment |
|
|
Operating temperature |
-10 to 70 deg C |
|
Storage temperature |
–20 to 80 deg C |
|
Relative Humidity |
5% to 90% non-condensing |
|
Miscellaneous |
|
|
Dimension (L× W× H) |
167*107*27mm |
|
Approx weight |
350g |
|
Power adapter |
AC input 100-240V 50/60Hz DC output 12V 1A |
