Input power -5dBm~+10dBm（normal input -2dBm~+5dBm） Output power 33dBm~40dBm（WDM -1dBm） Output port SC: 16/32/64；LC: 32/64/128 Each output power 10~23dBm or customized Noise ＜ 5.0dB（Pin=0dB） Polarization dependence loss:＜ 0.3dB Polarization dependenc

GET A QUOTE

Description

Performance characteristics

Adopts world top brand pump lasers and the OFS fiber of United States, advanced LG switch low-power circuit design, greatly reducing the overall power consumption and heat.
Perfect APC, ACC, ATC control, users use in different networks, good ventilation design and temperature-controlled fan, ensure the long life and high reliability of PUMP laser.
Using digital control chip, remote or local output power adjustable.
Excellent protection circuit design, with light detection, optical return loss monitoring. Great protection of lasers and light path safety.
Built-in low-noise preamplifier eliminates the need for cascaded EDFA, allowing input light to be as low as -5dBm, greatly reducing CNR and MER degradation.
Demultiplexer for 1310/1490/1560nm EPON and GPON. It greatly facilitates network applications with PON. Low noise figure (type ≤ 4.5dB, Max ≤ 5.0dB);
The total output optical power is optional: 2-10W (33-40dBm);

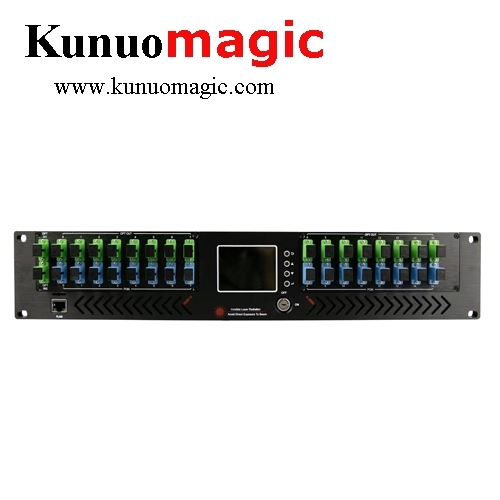

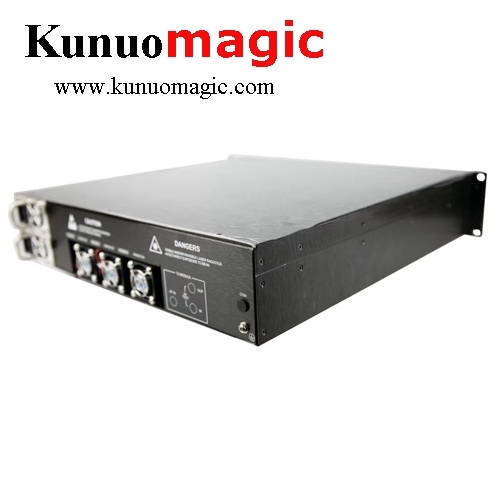

The front panel can be removed and replaced flexibly according to the number of output ports; Can add a built-in optical switch module to facilitate the expansion of the device function; Cooling fan supports online replacement;
The front panel LCD provides the operating parameters and alarms of the entire unit. RJ45 provides serial communication and SNMP network management interface; Carrier-grade dual power hot backup, CPU assignable power.

Applications

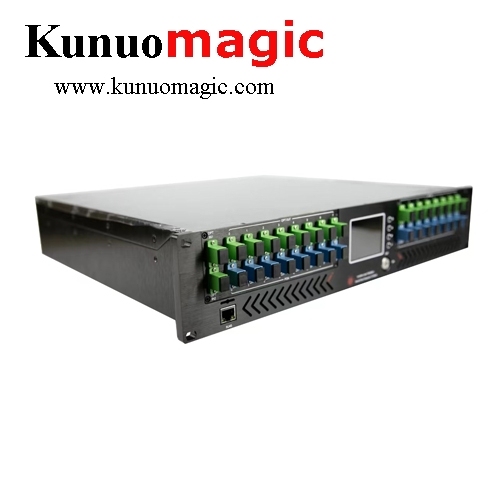

The EDFA2Uxx series high power amplifier is a high power multi-output optical fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is mainly designed for CATV or 1~8 continuous strip channels (ITU wavelength) applications. It provides a flexible, low-cost solution for large-scale FTTH coverage of CATV systems in large and medium-sized cities.
EDFA2Uxx can achieve single-wavelength cable TV transmission, CWDM single-fiber three- wave, flat-gain type, DWDM; its reliable and excellent performance ratio between the main application of FTTH, FTTB, DBS, MMDS, FTTX pon, is to build CATV large Medium-sized optical fiber transmission network is an important equipment.

EDFA2Uxx

Limit parameter

Technical parameters	EDFA2Uxx
Max wavelength	1535-1565nm
Minimum input power	-10dBm
Max input power	+10dBm
Limited working temperature	-25℃ ~+70℃
Limited working voltage	AC90~265V&DC30~72V&DC30~72V

Technical parameters

Technical parameters	EDFA2Uxx
Wavelength	1535-1565nm
Input power	-5dBm~+10dBm（normal input -2dBm~+5dBm）
Output power	33dBm~40dBm（WDM -1dBm）
Output port	SC: 16/32/64；LC: 32/64/128
Each output power	10~23dBm or customized
Noise	＜ 5.0dB（Pin=0dB）
Polarization dependence loss (PDL)	＜ 0.3dB
Polarization dependence gain (PDG)	＜ 0.4dB
Polarization mode dispersion (PMD)	＜ 0.3dB
Pump leakage power	＜ -30dBm
Echo loss	≥ 56dB
Optical connector	SC/APC&SC/UPC&LC/APC&LC/UPC
Supply voltage	220V(AC90V~265V)&110V(AC90V-130V)&48V(DC30~72V)
Consumption	≤100w
Working temperature	-5℃ ~+42℃
Storage temperature	-40℃ ~+80℃
Working relative humidity	5~95%
Product net size	465(L)480(W)89(H)
Package dimension	640(L)640(W)200(H)
