Broadcast Grade Professional IP to HDMI Decoder Support De-interlacing function

Features

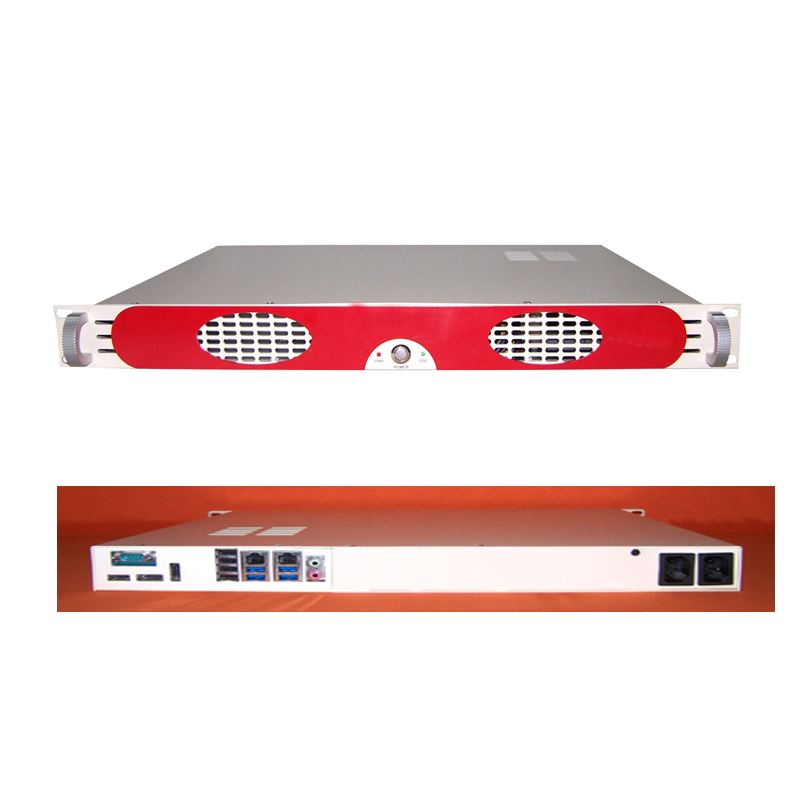

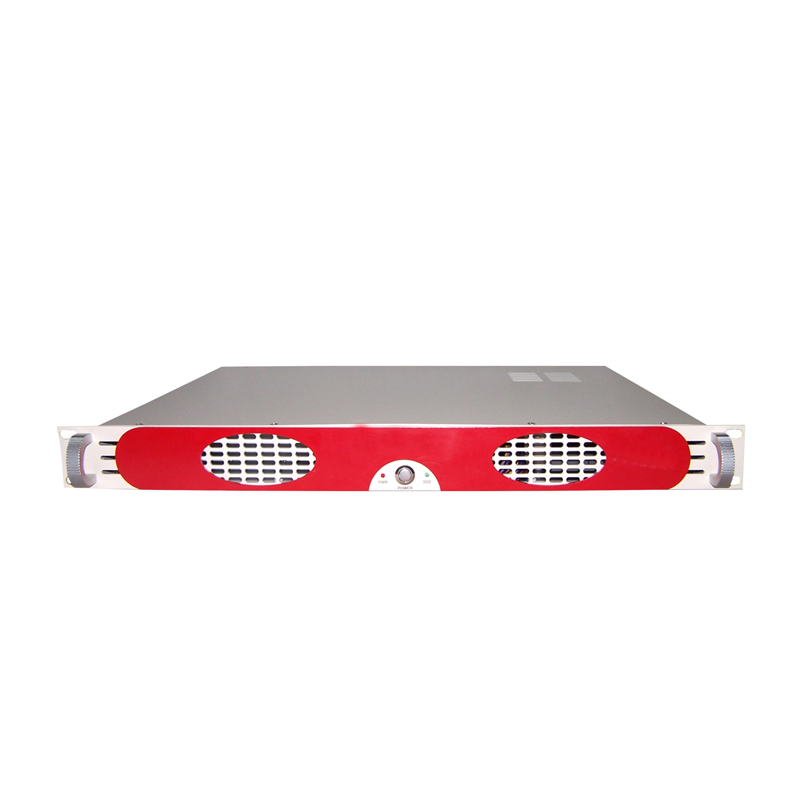

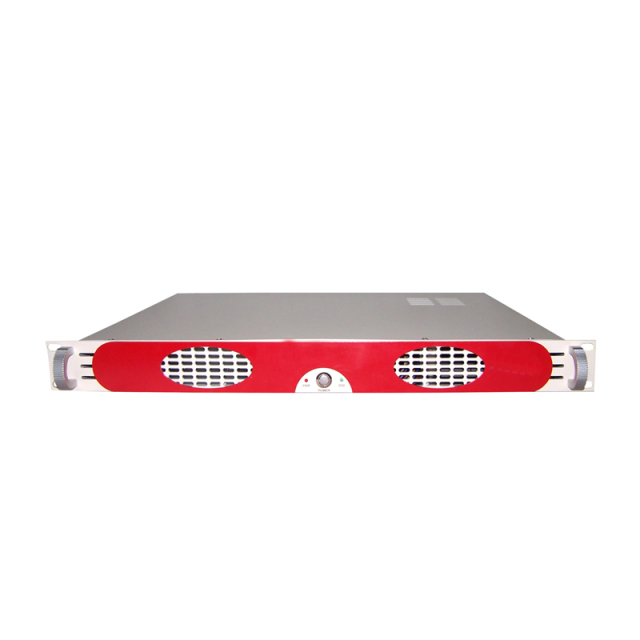

• Broadcast grade 19 "1U standard equipment with dual built-in power supply
• Embedded web server supports unified configuration management after remote web page login
• Support 264/AVC, MPEG-2, H.265/HEVC, AVS, AVS+ video encoding format
• Support MPEG-1 layer 2, MPEG-1 layer 3, LC-AAC, HE-AAC, AC3, EAC3 audio encoding format

(5) Supports the HDMI port to output and connect to the display

(6) Support 36-channel SD stream or 16-channel HD stream monitoring

(7) Support input stream network protocols: UDP, RTMP

(8) The system support real-time alarm analysis of all signals and fault detection function, with an accuracy of more than 98%, including video monitoring, audio too high, audio too low, voice loss, video static frame, black field, and other fault analysis and monitoring

(9) Support disk recording, automatic cyclic overwriting, ftp client and cifs shared directory query, download, and manage files

(10) Alarm function support multiple ways to alarm at the same time such as sound alarm, subtitle alarm, image frame and title turning red, and alarm records can be queried in logs

(11) Display window with video, sound column, platform name, single channel monitoring button; You can select one of the programs to play the sound

(12) Select a program to play the sound, and output it to the sound box using the 3.5mm interface

(13) Support access USB keyboard and mouse, directly on the HDMI display to perform related Settings and operations, can also use the remote web page to perform related settings and operations

(14) Automatic segmentation of multiple screens, flexible screen segmentation: input the number of screens or the number of rows and columns, automatically generate a reasonable layout of the screen, without the use of templates

Introduction

Dec16Pro video and audio monitoring server adopts standard chassis structure. It is a monitoring and broadcasting system which integrates the powerful functions of multi-channel digital TV IP stream signal multi-picture monitoring, code stream monitoring and alarm. It is a highly intelligent and the most economical solution for all levels of TV transmission and broadcasting, monitoring departments. It provides high-density, IP-based and intelligent video and audio content monitoring services for users such as IPTV, OTT multi-screen interaction, cable network and Internet audio operators to meet the needs of large-scale monitoring.

Technical Specifications
