Summary

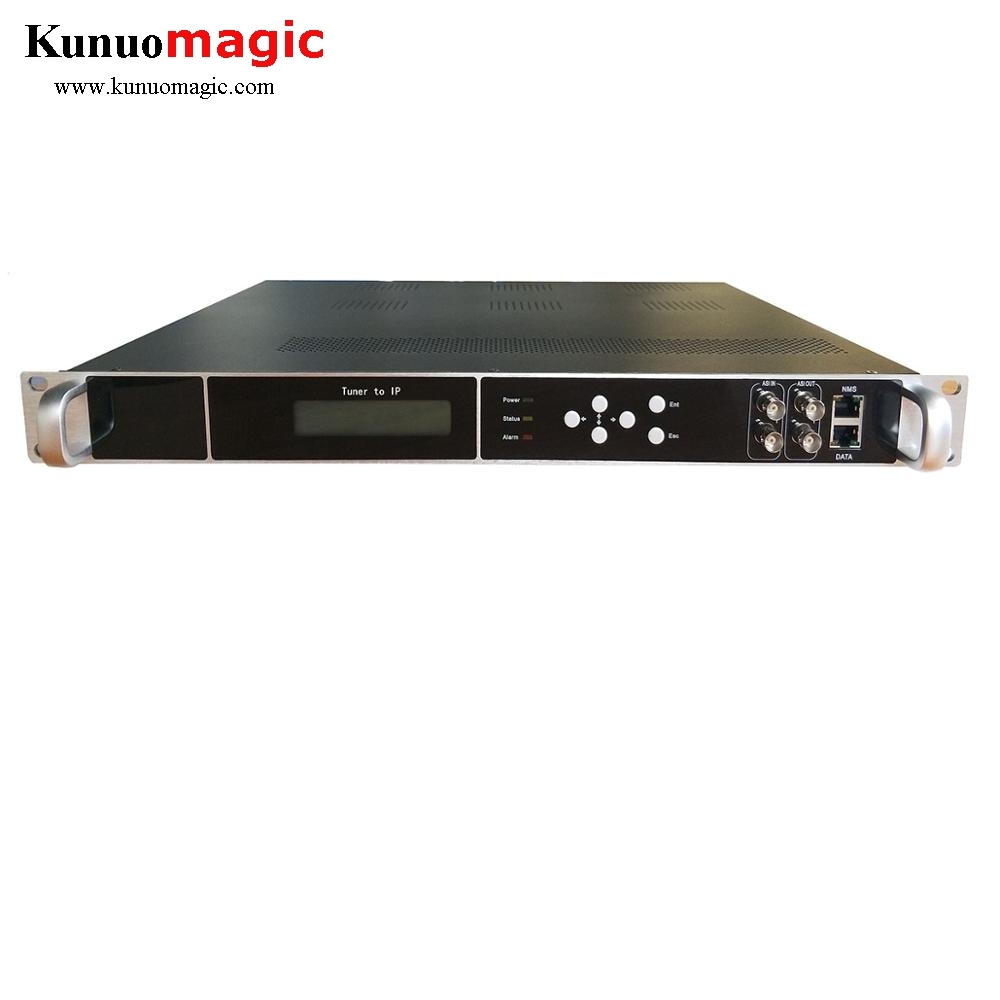

YNS-8808A is professional high integration device which includes tuner demodulation and multiplexing. It supports 8 DVB-S2/DVB-C/DVB-T/ATSC/ISDB-T FTA tuner input, 1000M IP output, 1 MPTS output and 256 SPTS output.In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting, IPTV live streaming etc.
Key Features
8 tuner ( DVB-S2/DVB-C/DVB-T/ATSC/ISDBToptional)
1000M IP output over UDP and RTP protocol(MPTS and SPTS)
Support different types of tuner ( DVB-S2、DVB-C、DVB-T、ATSC、ISDBT) input,
(2ASI inputs optional).
The input program stream is multiplexed and packaged into TS stream and IP output
2 ASI Independent output (optional) as copy of 1MPTS Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting
PID pass
LCD, key function
Control via web management, and easy updates via web
