Overview:

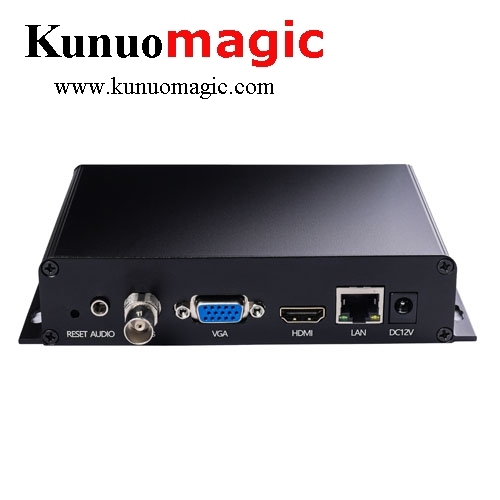

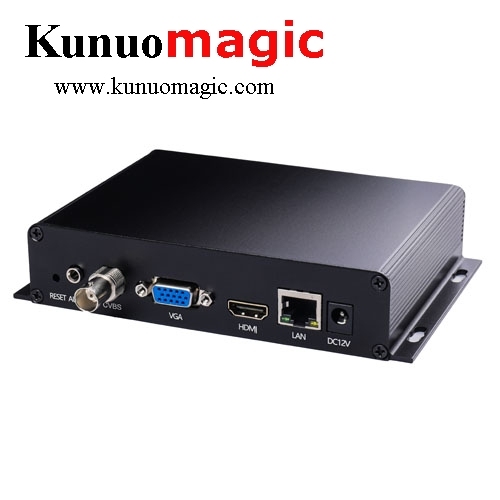

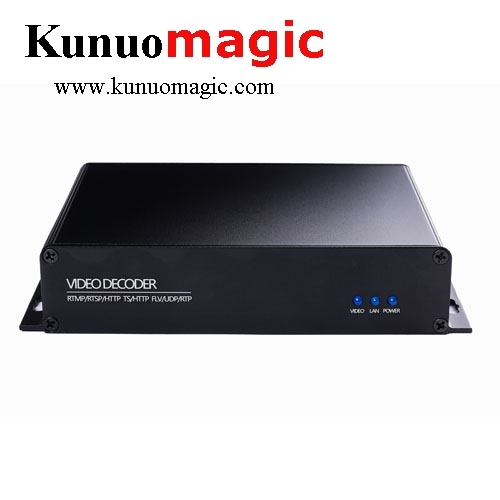

YDS-4000D H.265/H.264 4K Streaming Video Decoder with HDMI/CVBS/VGA output, which used advanced H.265 Video compression technology, integrated data transmission over SRT/HLS/RTSP/HTTP TS/HTTP FLV/RTMP/UDP With embedded operating system,
YDS-4000D ProHD UHD H.265/H.264 4K Streaming Video Decoder provides the features of stability, excellent network agility, which makes it a new generation network media decoder. Besides that, with embedded linux system designing makes this device widely used in variety of professional field where required 24/7/365 running, such as point to point contribution system, education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.
Key Features:
Output Signal: HDMI/CVBS/VGA
Video Compression: H.265/HEVC main profile, H.264/AVC baseline/main/high profile
Up to 4K@30fps
With HLS/RTSP/HTTP TS/HTTP FLV/RTMP/UDP protocol
Support Multi-channel decoding at the same time
low Latency: less than 200ms working with DIBVIEW encoder over LAN
Support B frame
Humanization GUI, easy to check the OSD,IP address and other decoding parameters on field
Web-based management
Technical Specifications:
|
Item |
Description |
|
Network Protocol |
|
|
Protocol |
Support SRT/HLS/RTSP/HTTP TS/HTTP FLV/RTMP/UDP |
|
Video Decoding Capacity |
|
|
Decoding format |
H.264/H.265 Baseline/Main/High Profile Level4.2 |
|
Frame Rate |
1-60fps |
|
Bit rate(kbit) |
32kbps-32Mbps |
|
Resolution |
Up to 4K@30 |
|
Channel number |
Up to 4 Channels |
|
Audio Decoding Capacity |
|
|
Decoding format |
G711A/G711U/AAC+/AAC++/MP2/MP3 |
|
Audio mode |
Mono/Left, Right/Stereo |
|
Sample rate(Hz) |
8KHz/11.25KHz /22.5KHz /44.1KHz /48KHz |
|
Channel number |
1 Channel |
|
Video Output |
|
|
HDMI |
4K@30fps,1080P@60/50fps,1080I@60/50fps,1080P@30/25fps, |
|
VGA |
The same as HDMI |
|
SDI |
1080P@60 fps, 720P |
|
Color |
Brightness, Contrast, Hue, Saturation can be adjustable |
|
Audio Output |
|
|
HDMI audio embedded |
48KHz stereo output |
|
3.5mm |
Stereo output (Left & Right) |
|
Audio control |
Enable/Disable |
|
The Working Environment |
|
|
Warranty |
3 years with free telephone support |
|
Network |
1000M |
|
Management |
Web management |
|
Power |
12V/DC, 2A |
Applications:
Agencies, TV & Pro Radio and Sports
Organizations, Conferences and Worship
Remote Video Conference
IPTV/OTT system
Government, Education and Music
Digital Signage Project
Video Monitoring
