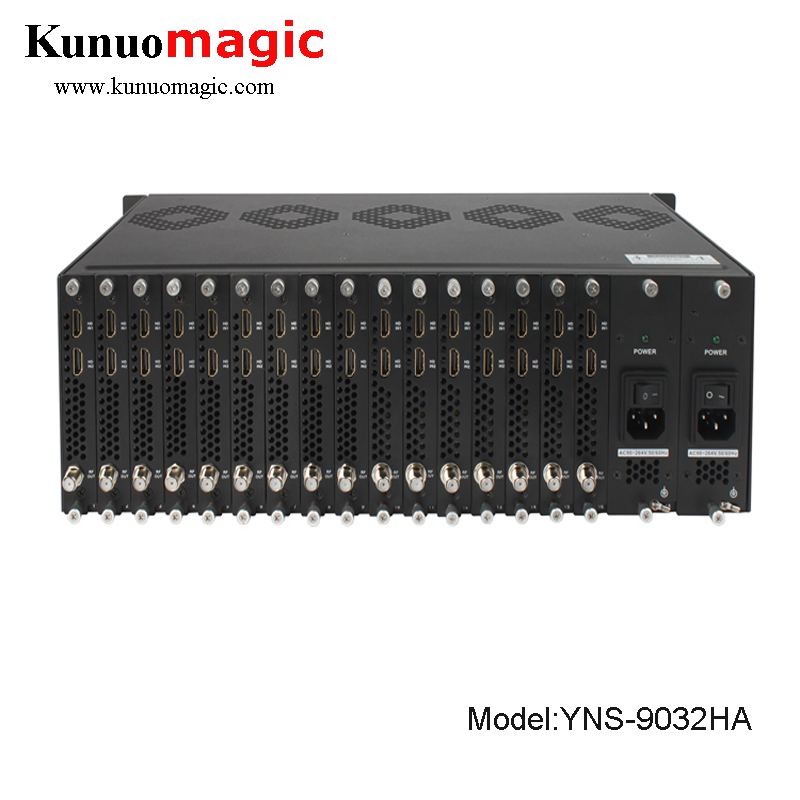

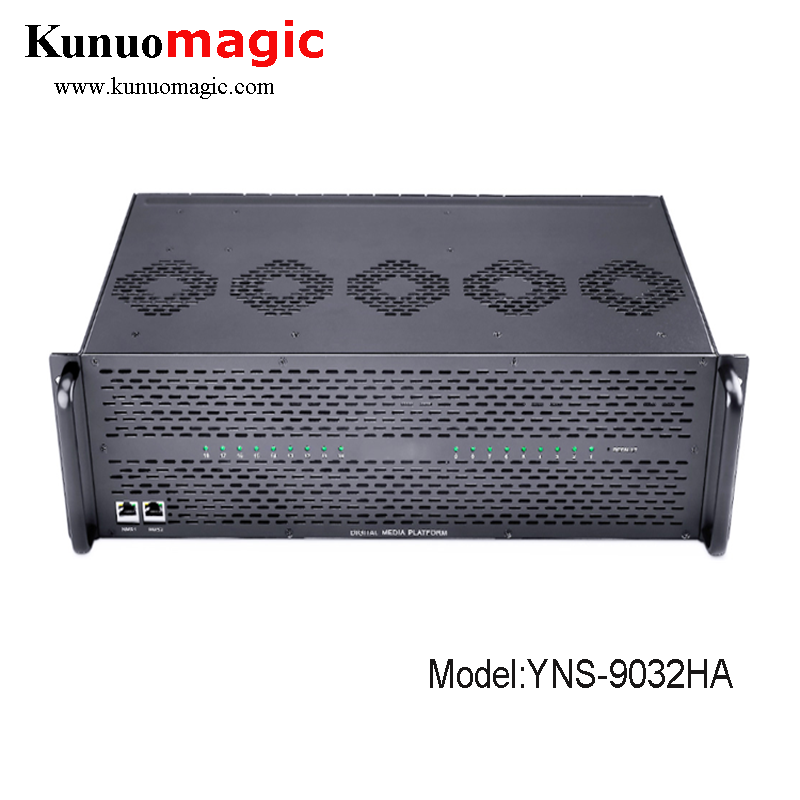

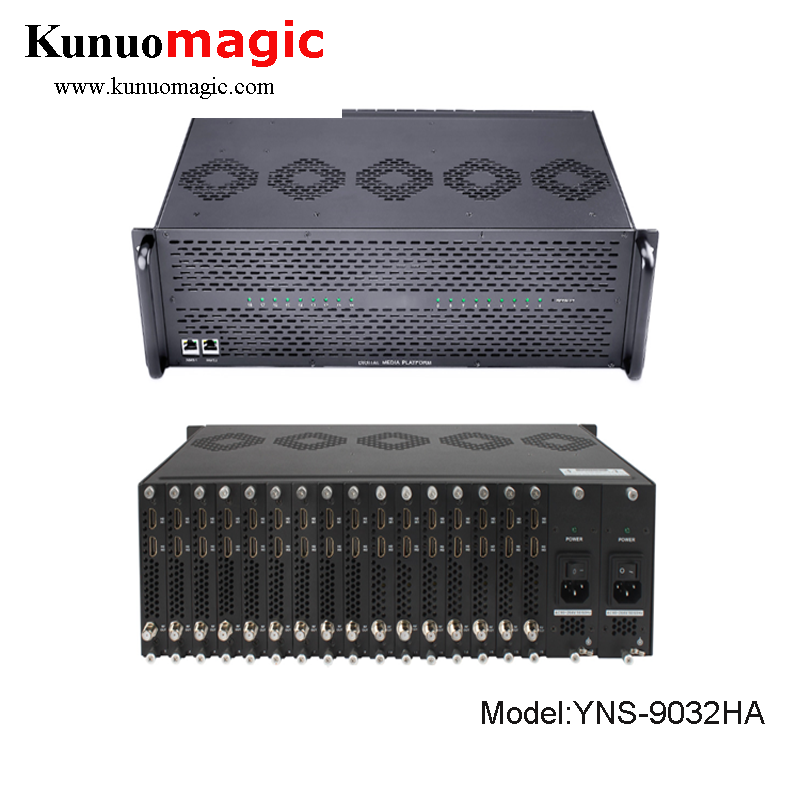

The YNS-9032HA is a frequency agile commercial RF modulator with SAW filter and microprocessor. Unlike traditional analog modulator, it has dual HDMI inputs to take in the 1080P HD signal and outputs an analog signal without noise and or stripes. Any standard HDMI source can be used, including satellite receivers, Blu-ray and camera.
Key Features
Two adjacent channels output per module with SAW filters
Phase-locked-loop design guarantees precise frequency locking
Double conversion provides superior spurious output suppression

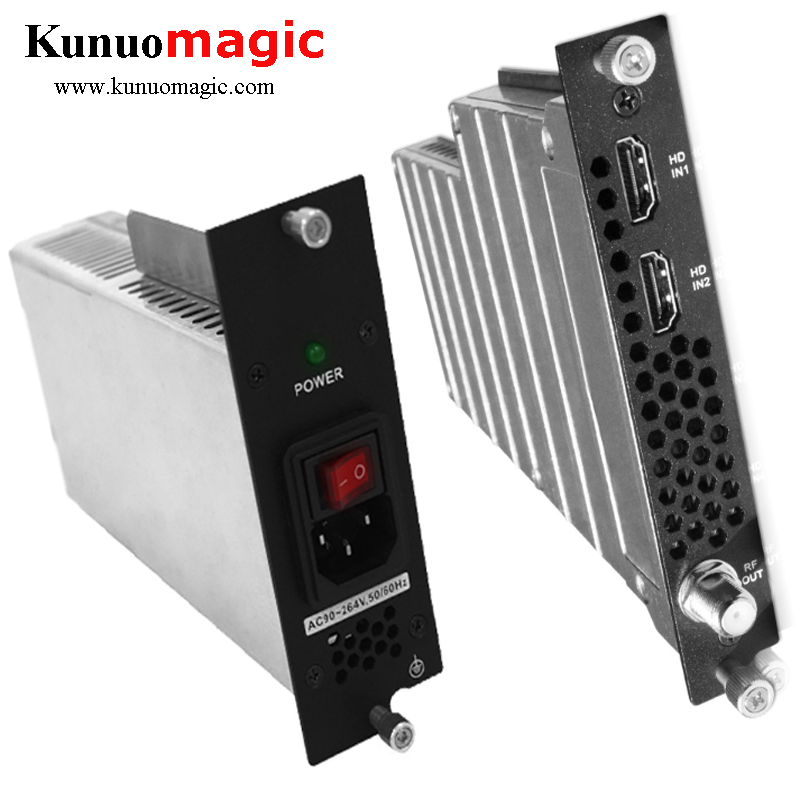

Single-slot design allows up to 16 units in KUNUOMAGIC ’s YNS-M3 chassis
Set up and upgrade by NMS
Specification
|
INPUT |
Input Connector |
32*HDMI (HDMI 1.4) |
|
Input Resolution |
1920*1080_60P;1920*1080_50P;1920*1080_60i; |
|
|
1920*1080_50i; 1280*720_60P; 1280*720_50P |
||
|
Audio Sample Rate |
32K/ 44.1K/ 48KHz |
|
|
Audio Bitrate |
384kbps |
|
|
MODULATION |
Output Connector |
75Ω F-Female *1 |
|
Output Frequency |
50~870 MHz Agile |
|
|
Frequency Stability |
±5KHz |
|
|
Output Level |
≥100dBuV |
|
|
Spurious Output |
≥60dB |
|
|
Carrier to Noise |
60dB |
|
|
Flatness |
±1dB |
|
|
SYSTEM |
Management |
NMS |
|
Video Format |
Support |
|
|
Language |
English |
|
|
Upgrade |
NMS |
|
|
GENERAL |
Power Supply |
DC12V 1.5A |
|
Dimension |
132.5*201.7*21.05(mm) |
