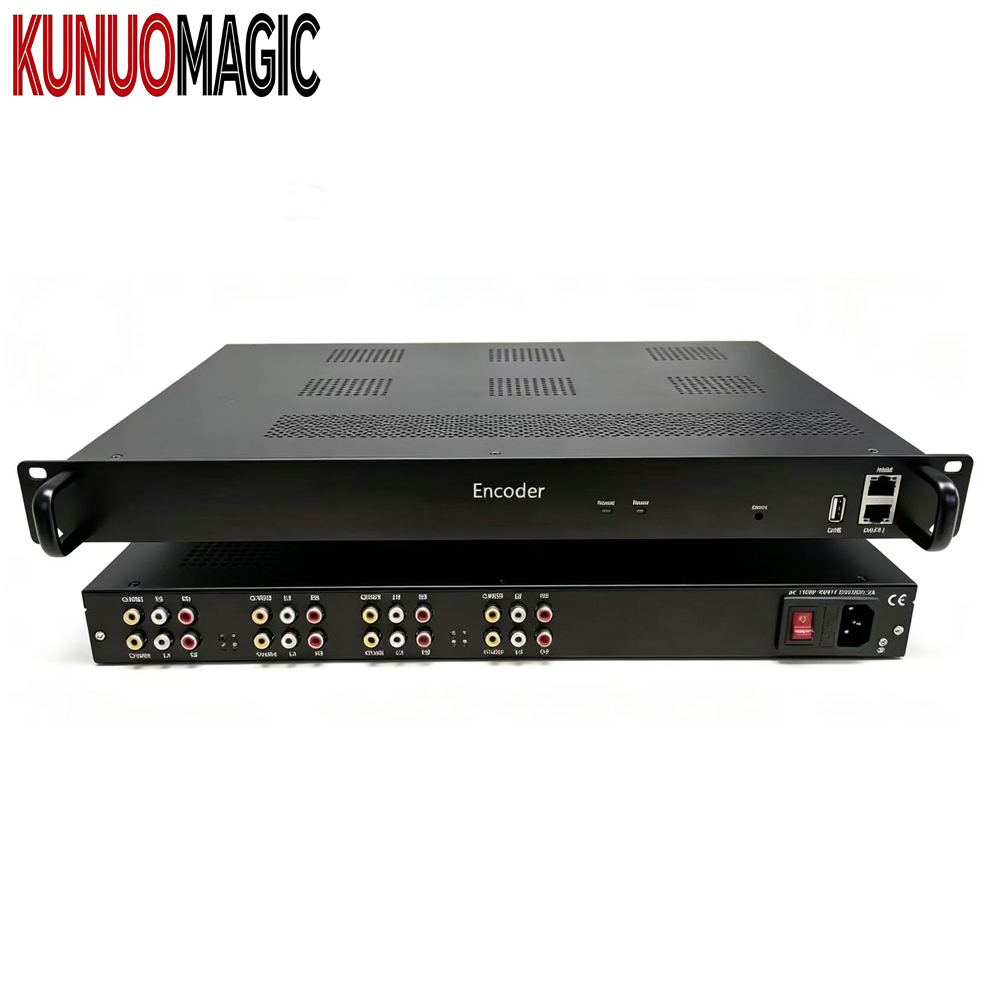

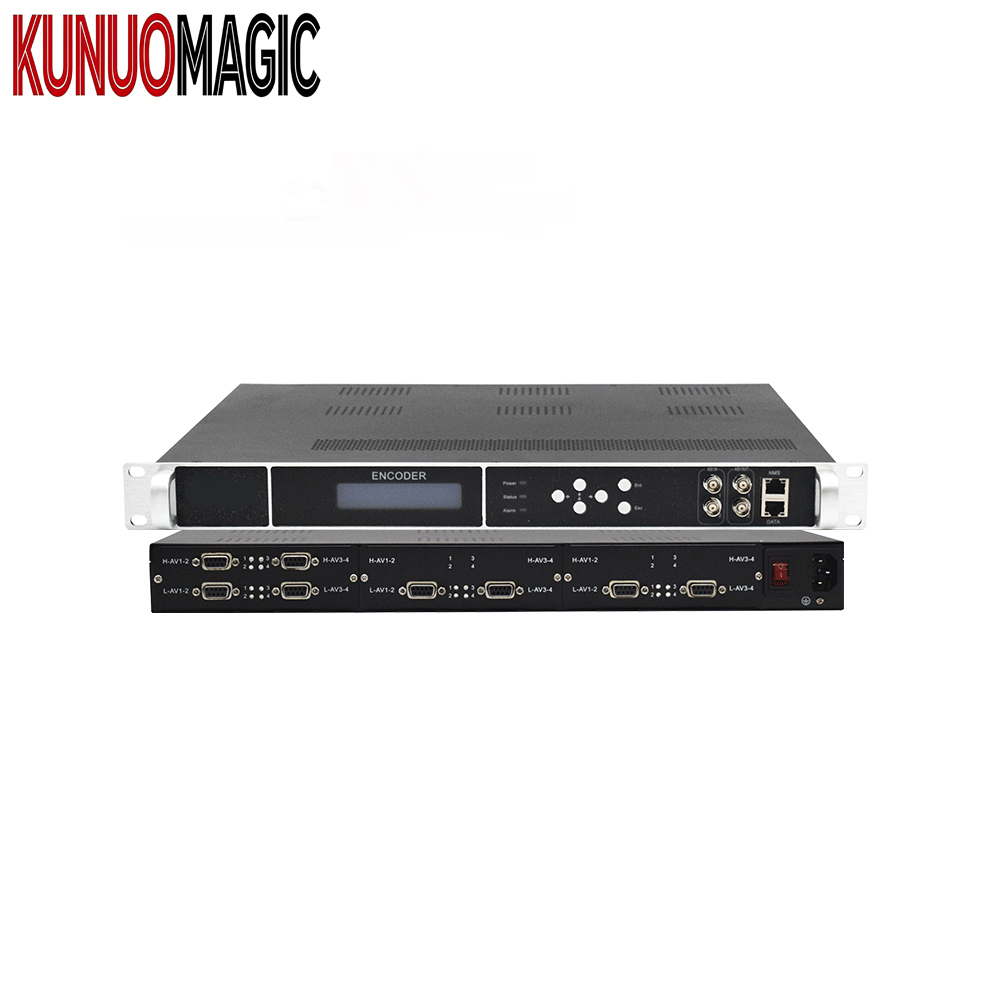

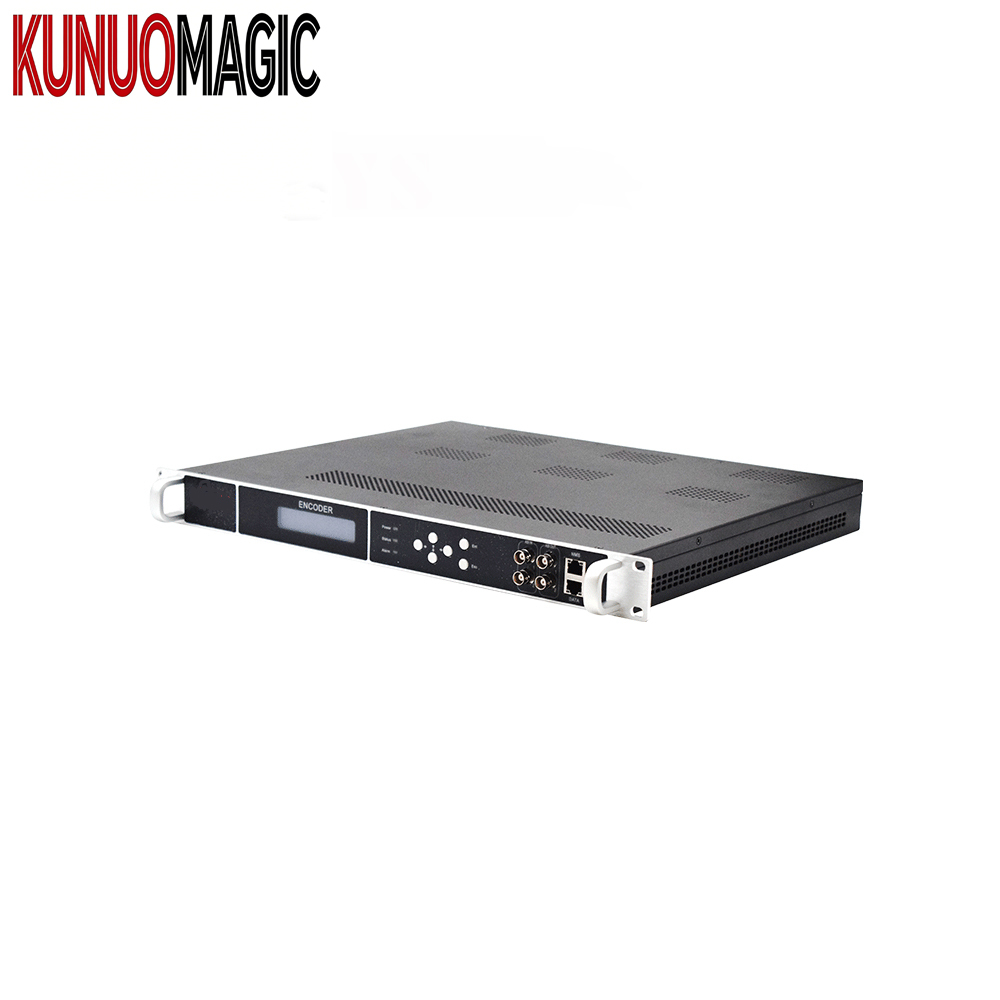

The YDS0808S series is the latest cost-effective 8 In1 MPEG-2 SD Encoder . It supports 4 / 8 CVBS inputs, 1 channel Gigabit IP input / output; 4 MPTS and 256 SPTS output.With high integration, great performance and low cost, Integrating a complete front-end system functions, this device is highly welcomed in small digital TV transmission systems such as hotels, clubs, hospitals,etc.
2 Key Features
|
Input |
4/8 CVBS |
|
|
128 IP address input；ASI input (optional) |
||
|
Output |
IP output, 256 SPTS/ 4 MPTS output |
|
|
ASI output (optional) |
||
|
Video Encoding
|
Encode Format |
MPEG-2 |
|
Code Rate |
1Mbps~13Mbps（each channel) |
|
|
Input port |
CVBS |
|
|
Resolution |
Input: 720x576i/720x480i （PAL/NTSC) |
|
|
Output: 720×576 / 720×480（PAL/NTSC） 544×576 / 544×480（PAL/NTSC） 480×576 / 480×480（PAL/NTSC） 352×576 / 352×480（PAL/NTSC） 352×288 / 352×240（PAL/NTSC） 176×144 / 176×112（PAL/NTSC） |
||
|
Audio Encoding |
Rate Mode |
CBR |
|
Encode Format |
MPEG1 Layer2 |
|
|
Sample Rate |
48KHz |
|
|
Bit Rate |
64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps |
|
|
Miscellaneous |
Dimensions |
440mm×270mm×40mm |
|
Weight |
3-5 kg |
|
|
Operation Temperature |
0~45℃ |
|
|
Storage Temperature |
-20~80℃ |
|
|
Voltage range |
AC100~240V，50/60Hz |
|
|
Power consumption |
<30W |
|
