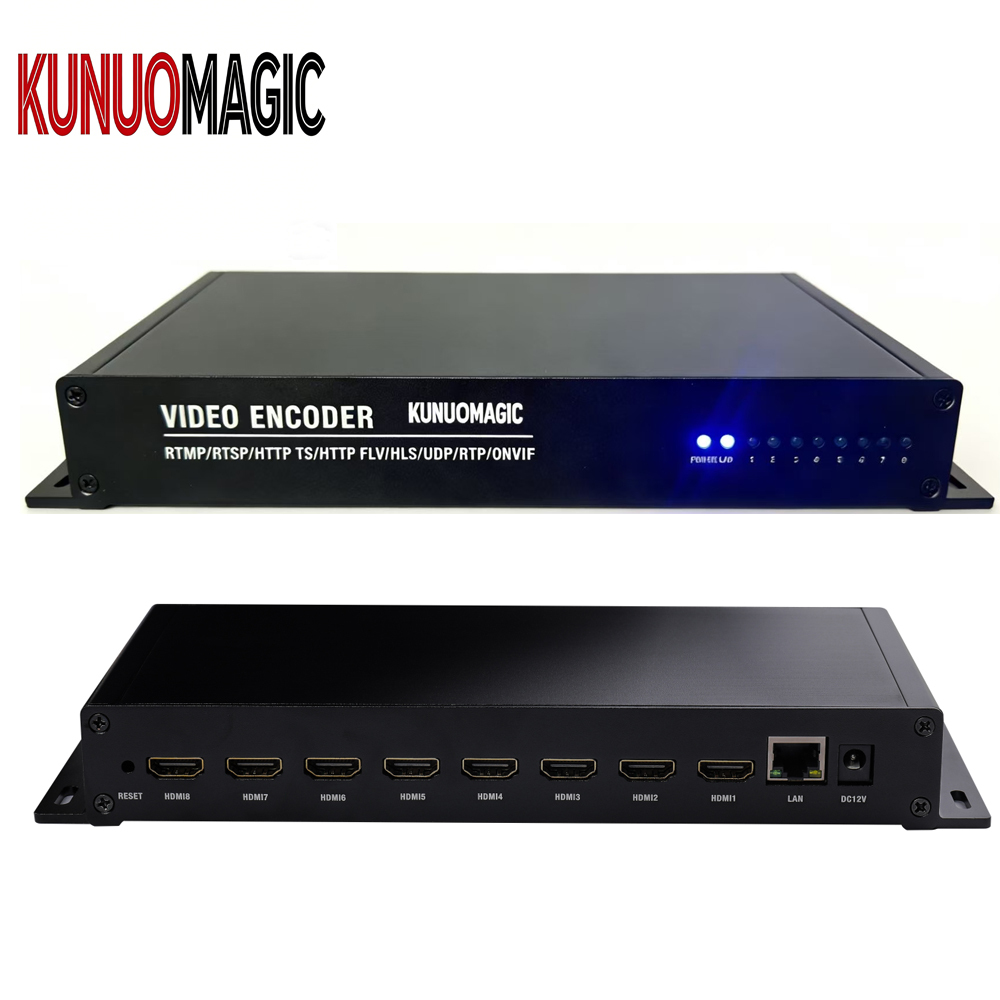

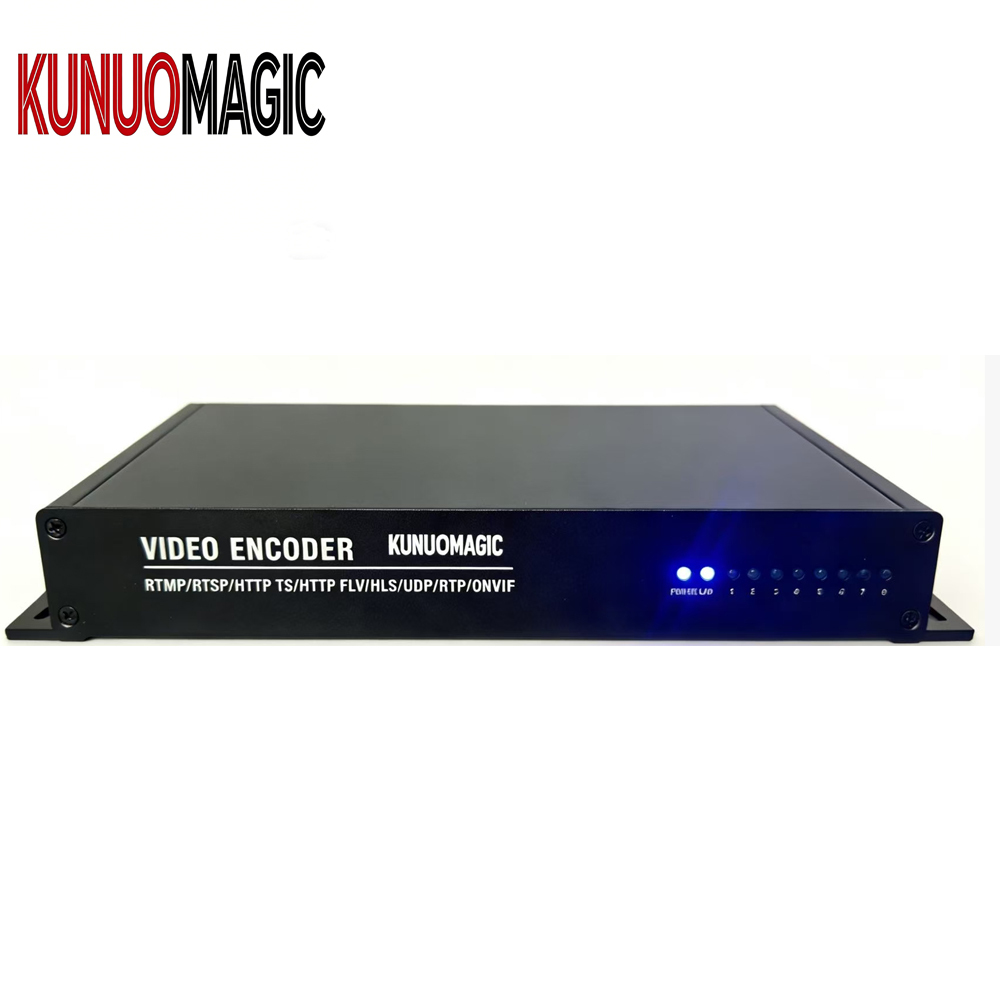

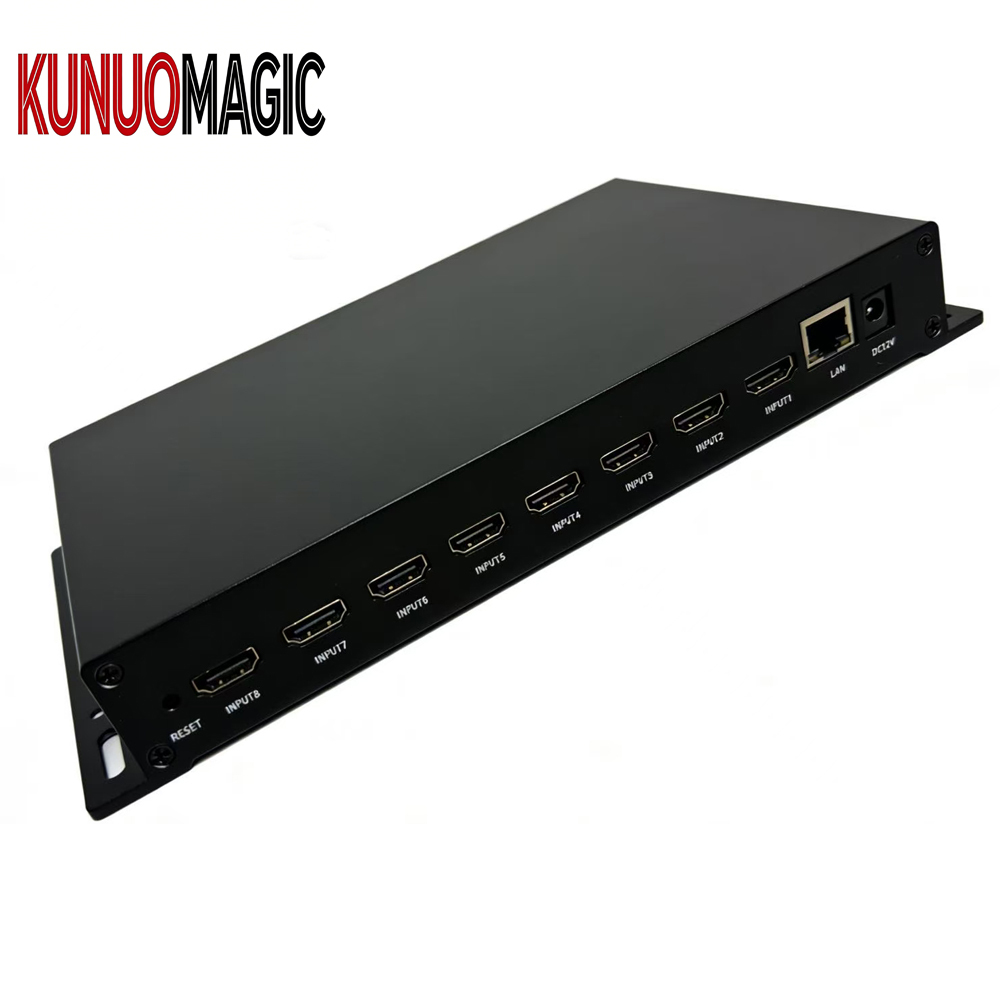

YDS2308H ProVideo Streaming Encoder, 8-HDMI Port input Meanwhile, it outputs 4 channels stream by TS over IP transmission in H.265 Compression(Video), AAC ,AC3,Mpeg1layerII,MP3 Compression(audio) with different resolutions and protocols for delivering services to multiple Internet connected devices at the same time, including smart phones, tablets, different size TVs and other mobile device. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate within limited bandwidth. It can be applied to education, health care, IPTV & OTT, conference, remote education, news interview, court, public security, banking, transportation and other industry applications.
1.1 Features
- Support 8channels HDMI input
- Support up to 4 TS over IP streams out.
- Support H.264 Main Profile/H.264 High Profile /H.264 baseline/HEVC/H.265
- Bitrate mode: CBR/VBR/Strong CBR
- Capable ofimage parameter settings
- Switchable ofaudio output mode: Left, right and Stereo
- Configurable of Multi-rate, Multi-resolution,Multi-protocol
- ProvidingSRT/RTSP/HTTP/UDP/HLS or RTMP protocol
- Support HDCP protocol
- Support ONVIF Network Video Protocol
- Support multiple equipmentsdisplay at the same time on a computer
- System supports WINDOWS XP/VISTA/SERVER2008/WIN7 32 and WIN764, LINUX
- Web-based management
- Full-duplex mode 1000M
1.3 Specifications
VIDEO SPECIFICATIONS
- Video compression: 264 Main Profile/H.264 High Profile /H.264 baseline/HEVC/H.265
- Video inputs: HDMI(support HDCP protocol)
- Resolution:
Main stream:
1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480,
720x404,704x576,640x480,640x360,auto
Sub-stream1:
1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480,
640x300,352X288,320X240,320X180 auto
- Bit-rate: 16kbps~12Mbps, CBR/VBR
- Video pre-processing: Noise reduction, Sharpen, Filtering
AUDIO SPECIFICATIONS
- Audio compression: AAC ,AC3,Mpeg1layerII,MP3
- Sampling rate: Adaptive, selectable of re-sample.
- Sampling accuracy: 24-bit
- Bit Rate: 48000,64000,96000,128000,160000,192000,256000
- Re-sample:32000,44100
OUTPUTS
IP output
- Transport protocol: TS over IPoutput, RTSP/HTTP/UDP/HLS or RTMP protocol
- For HDMI to IP output, 4*TS over IP stream out(HTTP/RTSP/UDP/HLS or RTMP protocol) 2
Channels with higher resolution(up to 1080P) for large screen application, 2 channels with lower resolution(up to 720P) for small screen application)
GENERAL OPTIONS
System
- Configuration Interface: Web-based
- Upgraded: vianetwork
- Connector: RJ45, 100MEthernet interface.
PHYSICAL AND POWER
- Voltage: 12V DC
- Consumption: 5W
- Operating temperature: 0~50°C
- Dimensions: 144mm(W)*98mm(D)*38mm(H)
- Weight: 0.3Kg/pc
