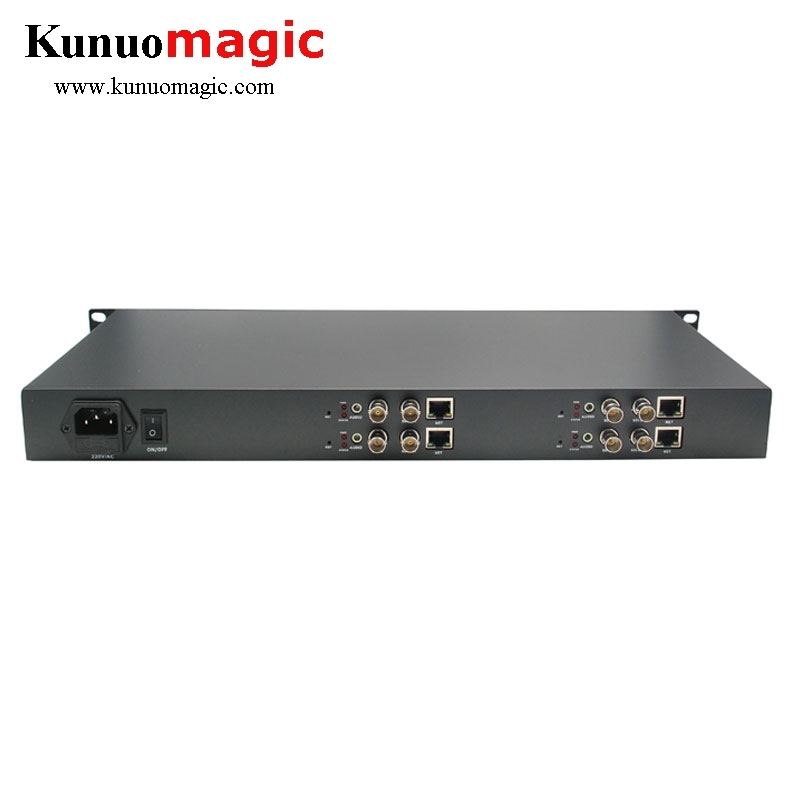

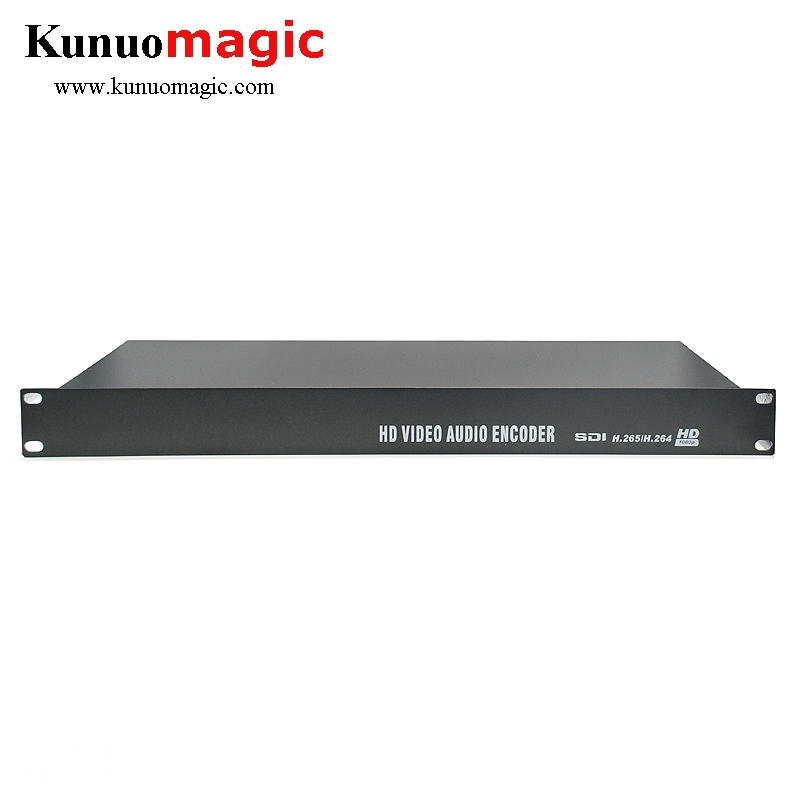

The 1U Rack-mounted SDI Video Encoder with loop-out is our professional HD audio and video encoding device with powerful functionality. It is equipped with 4 channels SDI and 4 channels stereo audio(3.5mm) input supporting H.265& H.264 /AVC high profile /main profile /baseline profile coding format and two video streams output each channel, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, RTMPS，SRT，HLS, FLV, ONVIF. Also, there is 4 channel SDI loop out for local display. Its high integration and cost-effective design make this device widely used in a variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc.
This encoder support SDI embedded audio or external audio optional from output video streaming each channel.
Not only 4 channel, we also produce 1 channel SDI video encoder with 1U rack and multi-channel SDI video encoder which is packed by 3U box. For 3U rack, max supports 16pcs encoder cards to be installed.

【Features】
• Support H.265 & H.264 /AVC baseline /main /high profile encoding
• From 16Kbit/s to 12Mbit/s for CBR /VBR code rate controlling
• Support HTTP, UDP /RTP, RTSP, RTMP, RTMPS,SRT,HLS, FLV, ONVIF streaming protocol
• Support image, logo, text parameter settings on the output video streaming
• Support English WEB operating interface and language customizable
• Support output video streaming resolution setting(Up to 1920 * 1080P /30fps)
• Support SDI embedded audio or external audio optional from output video streaming
• Support GOP frame rate settings
• Support output 2 RTMP (mainstream & 2nd stream) to different streaming media server
• Network interface full-duplex mode with 1000M speed
• Support two video streamings output (Mainstream and second stream) each channel
• Support HDCP and HD blue-ray
• A wide area network remote management (Web control panel)
• Support different protocol transmission for the mainstream & 2nd stream each channel
• Support MP3 and AAC audio coding format selection
• A click to restore the default configuration
• Stable and effective, support 7 x 24h working time
• Support 4, 8, 16 channels 1U /3U chassis structure available, max support 16pcs encoder cards to be installed

【Parameter】

Model	YNS-2304L
Input interface	4×SDI
Support resolution	1080P\1080i\720P 、1600x1200\1400x1050\1440x900\1280x1024\ 1280x960\1280x800\1024x768\800x600 etc.
Frame rate	60 frame
Output interface	4×Ethernet port(RJ45),1×SDI
Video encoding	H.265 Main Profile H.264 Baseline Profile H.264 Main Profile H.264 High Profile
Code Rate control	16kbps- 12Mbps
Code Rate	CBR/VBR
Input interface	4×External audio
Audio encoding	ACC, MP3
Sampling rate	Auto
Bit-rate Option	48K,64K,96K,128K,160K,192K,256K
Sampling Accuracy	24 Bit
Audio Data-rate	64Kb/s to 384Kb/s
RJ45	10M/1000M Ethernet port
Program streaming	HTTP, RTSP, RTMP, RTMPS，SRT，HLS, FLV,ONVIF(UDP/RTP)
Control Panel	Web panel ( Language is English), remote upgrade
Firmware Update	Enable by uploading files to the dashboard
Dimension(WLH)	48.2204.4cm
Gross Weight	1.5kg
Temperature	0 ~ 45℃（for working）,-20~60℃（for storing)
Humidity	<90%, non-condensing
Input Voltage	AC/DC 110-240V
Power Consumption	5W
