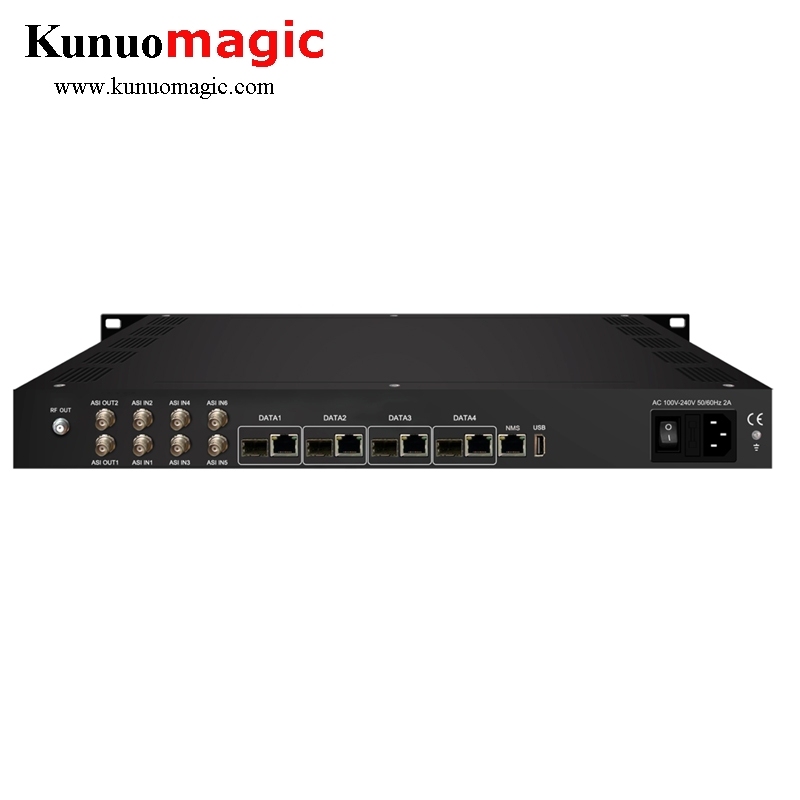

| Input | Input | 16/32 DVB-C carriers: Max 1024 IP input through Date1-Date4 100/1000M Ethernet Port (or SFP interface optional). Each Data port can input max 1024 IP. | |
| 6 ASI input, BNC interface | |||
| Transport Protocol | TS over UDP/RTP, unicast and multicast, IGMP V2/V3 | ||
| Transmission Rate | Max 840Mbps for each GE input | ||
| Mux | Input Channel | 1024 | |
| Output Channel | 16/32 | ||
| Max PIDs | 256 per channel | ||
| Functions | PID remapping(auto/manually optional) | ||
| PCR accurate adjusting | |||
| PSI/SI table automatically generating | |||
| Scrambling Parameters |
Max simulscrypt CA | 6 | |
| Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 | ||
| Connection | Local/remote connection | ||
| Modulation Parameters |
DVB-C Modulator Section | J.83A | Constellation : 16/32/64/128/256QAM |
| Bandwidth :8M | |||
| J.83B | Constellation : 64QAM/ 256QAM | ||
| Bandwidth :6M | |||
| QAM Channel | 16/32 non-adjacent carrier | ||
| Modulation Standard | EN300 429/ITU-T J.83A/B(DVB-C) | ||
| Symbol Rate | 5.0~7.0Msps, 1ksps stepping | ||
| Constellation | 16, 32, 64 , 128, 256QAM | ||
| FEC | RS (204, 188) | ||
| RF Output | Interface | 1 F typed output port for 16/32 carriers, 75Ω | |
| RF Range | 50~960MHz, 1kHz stepping | ||
| Output Level | -20dBm~+10dBm(87~117dbµV), 0.1dB stepping | ||
| MER | ≥ 40dB | ||
| TS output | 16/32 IP output over UDP/RTP/RTSP, unicast/multicast, Data1 100/1000M Ethernet Ports | ||
| 2 ASI output, one as mirror | |||
| System | Network management software (NMS) supporting | ||
| General | Demission | 420mm×440mm×44.5mm (WxLxH) | |
| Temperature | 0~45℃(operation), -20~80℃(storage) | ||
| Power Supply | AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | ||
