Home > All Collections > Broadcast Encoder > Mpeg 2 Encoder > 24 Channels SD CVBS MPEG2 To IP Digital TV Headend AV Video Encoder
  • 24 Channels SD CVBS MPEG2 To IP Digital TV Headend AV Video Encoder
  • 24 Channels SD CVBS MPEG2 To IP Digital TV Headend AV Video Encoder

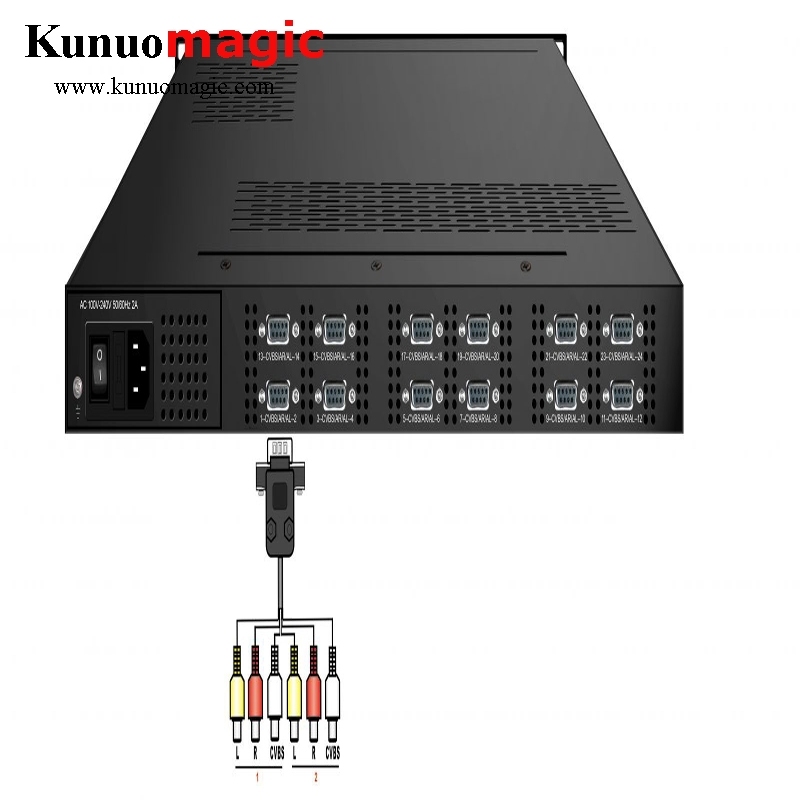

24 Channels SD CVBS MPEG2 To IP Digital TV Headend AV Video Encoder

No.YNS-3542K
Input:24*CVBS Video Encoding:Mpeg 2 Audio Encoding:MPEG1 Layer II, AC3 (2.0) Audio encoding Output:24 SPTS or 1 MPTS output through Data 1 or Data 2
GET A QUOTE
  • 24 Channels SD CVBS MPEG2 To IP Digital TV Headend AV Video Encoder

Description

  1. 24×CVBS video inputs with 24 SPTS or 1 MPTS output through Data 1 or Data 2
  2. Supports PAL and NTSC SD video formats, MPEG-2 Video encoding
  3. Support MPEG1 Layer II, AC3 (2.0) Audio encoding and support audio gain adjustment
  4. Support 1 ASI output as copy of MPTS
  5. Support CC (closed caption)
  6. Support QR Code, Caption, Logo insertion----YNS3542KA
  7. support “Null PKT Filter” function
  8. Support PID Remapping/PCR accurate adjusting/PSI/SI editing and inserting
  9. Real-time effective encoding output bit-rate monitoring
  10. Control via web management, and easy updates via web

Download
