Product Overview

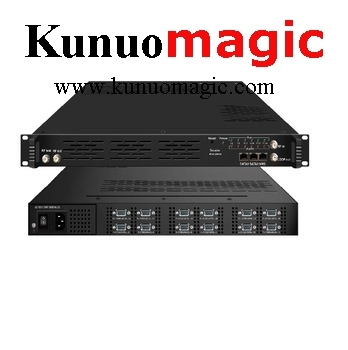

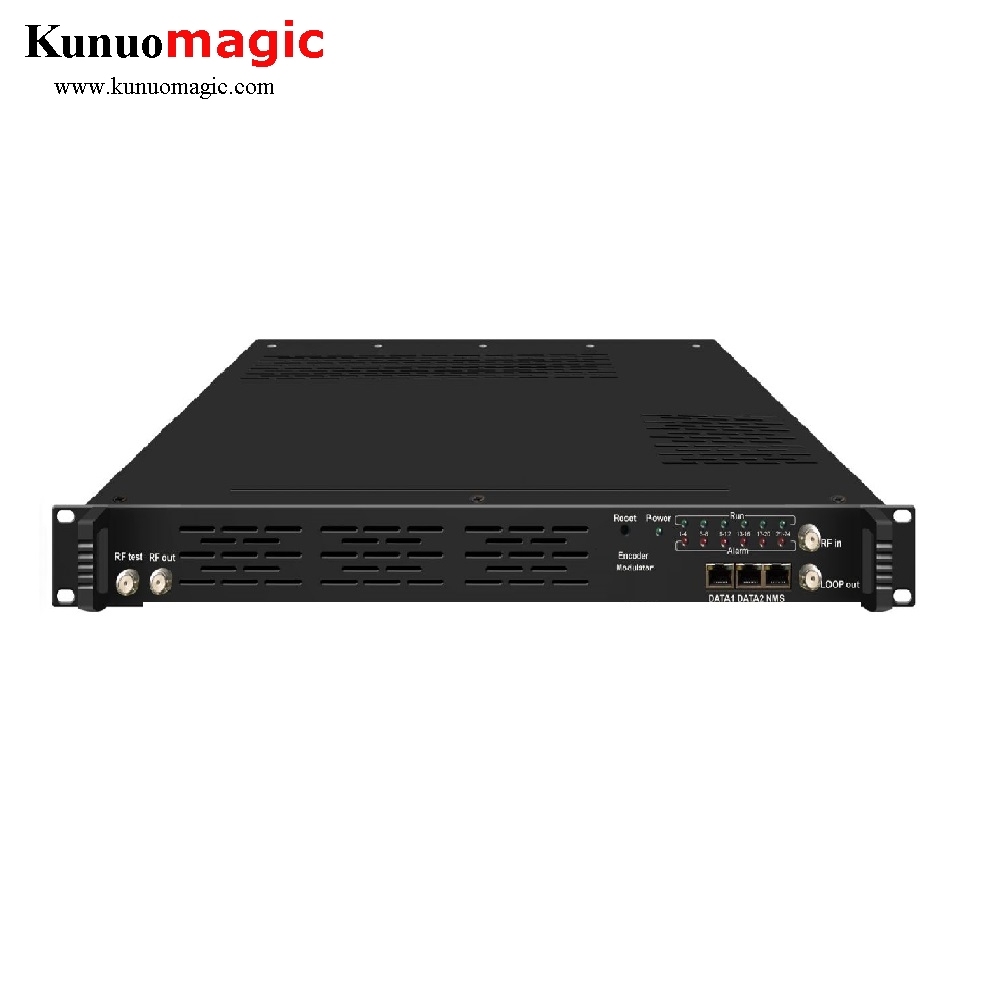

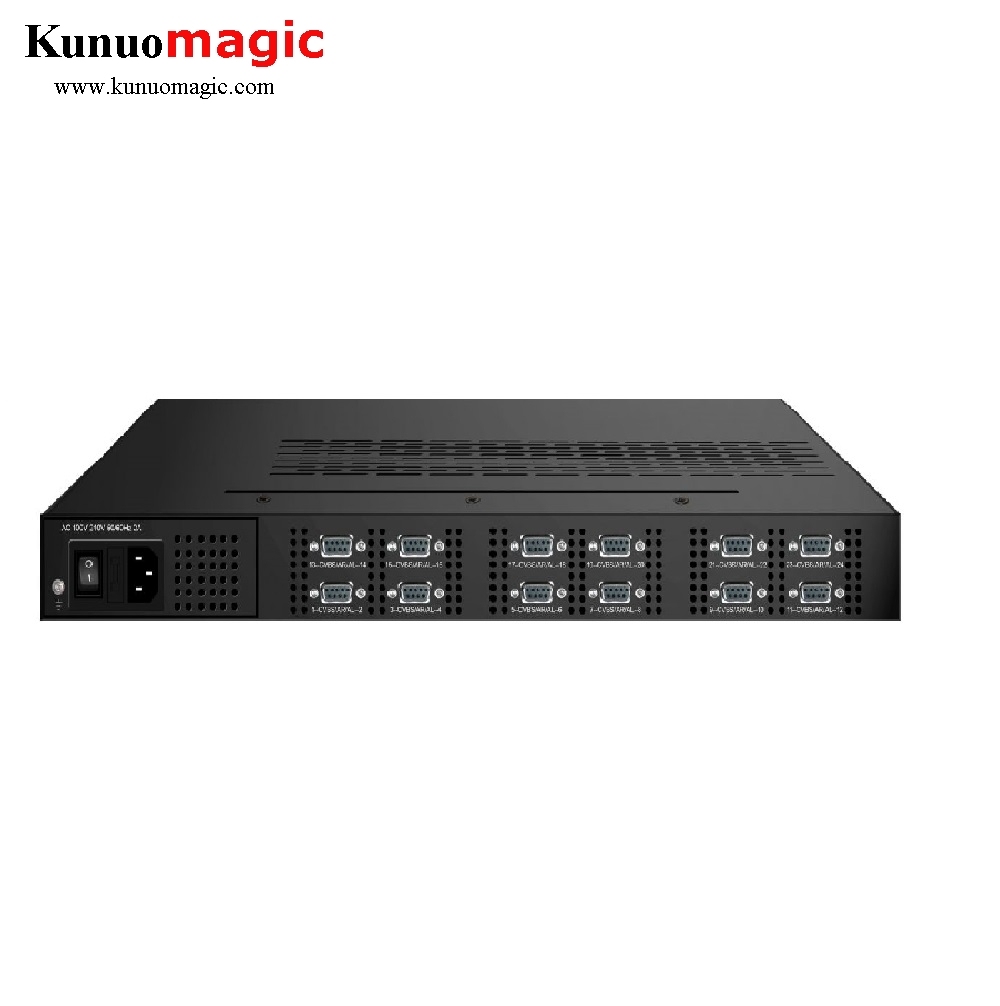

YNS-3542HB SD encoder modulator is a professional high integration device which includes encoding, multiplexing, scrambling and modulation. It supports 8/12/16/24 CVBS inputs, one tuner input and 128 IP input through Data1 (GE) and Data2 (FE) port. It also supports 4 DVB-C/T RF out and 4 MPTS out. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
Key Features
* 8/12/16/24 A/V inputs with MPEG-2, MPEG4 AVC/H.264 Encoding
* 1 DVB-C/T/(T)/ISDBT/S/S2 (Optional) tuner input for re-mux
* 128 IP input (Data1&Data2) over UDP and RTP protocol
* Support MPEG1 Layer 2, LC-AAC, HE-AAC audio encoding
* Support 4 MPTS IP (DATA1 port only) output over UDP and RTP protocol
* 4 DVB-C or 4 DVB-T RF out
* Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
* Support Logo, QR code, Caption insertion
* Control via web management, and easy updates via web
