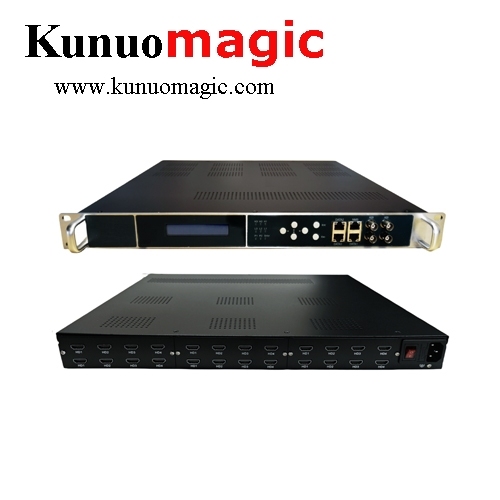

YDS9024E Series Multi-Channel H.264 /H.265 HD Encoder features high performance, ultra-low latency and low bit rates for DTV systems, and adopts state-of-the-art compression technology (H.264/AVC-H.265/HEVC) to achieve compression efficiency of the former
MPEG-2 standard by over two times, as well as excellent resolution. Also audio encoding supports MPEG-1 Layer2.
The device provides input interfaces of 4/8/12/16/20/24 HDMI, and ASI output and 512*SPTS/8*MPTS TSoIP(UDP/IP) and supports RTMP/HTTP/RTSP/HLS/SRT protocol output after loss-less compression processing. The unique empty packets filtering capability enables the spectrum source to be saved for IPTV systems.
YDS9024E has an external 2*ASI input, which can be multiplexed with local multi-programs to eliminate the needs of multiplexers, and also simplify the network architecture for high reliability solutions. DMB-8820E Encoder is the preferred device for content source encoding of DTV broadcasting system to address the ever-increasing demand for more premium viewing experiences.
Support PSI/SI rebuilding and editing and auto-generation.
Huge buffer memory for saving the overflowing code stream
LCD/keyboard, Web-based and SNMP management, remote upgrading.
Power off memory, saving the settings for auto-loading after reboot.
Import & export the settings, easy to be configurable.
|
Specification
|
|||
|
VIDEO SPECIFICATIONS
|
VIDEO SPECIFICATIONS
Video compression: H.264/AVC Video inputs: 4/8/12/16/20/24*HDMI The Input Resolution: 1920x1080@60P,1920x1080@60i 1920x1080@50P,1920x1080@50i,
1280x720@60P,1280x720@50P 720x576@50i, 720x480@60i The Output Resolution: 1920×1080@30P,1920×1080@25P, 1280×720@30P,1280×720@25P, 720×576@25P,720×480@30P,(output without 60P output) Encoding: MPEG-4 AVC/H.264 Bit-rate : 1Mbps~13Mbps Rate Control : CBR,VBR GOP Structure : IPPPP (P Frame adjustment, without B Frame ) |
||
|
AUDIO SPECIFICATIONS
|
Encoding : MPEG-1 Layer 2
Resolution : 24-bit Audio Gain : 0-255 Bit-rate: 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kbps, 384kbps Sampling rate : 48K |
||
|
Transport Stream Output |
ASI input
Connector BNC: female, 75Ω
Packet Length: 188 bytes
Number of Input Ports : Dual separate ASI ports Signal Level : 200-800mVp-p
Maximum bit-rate per port : ≤100Mbps ASI OUTPUTS DVB-ASI 2 Separate ASI (Select from modulation Channels or MPTS channel) MPEG-2 TS over DVB-ASI (EN 50083-9) 75Ω, BNC, 188Bytes IP Streaming OUTPUT
RJ45 Port 100/1000M GbE Port DATA1: IP output over RTMP /HTTP/ RTSP/ HLS/ SRT protocol; DATA2: IP output over UDP/RTP protocol; Filter Null Packet
Total Bitrate 1-200Mbps, (Should be More than Encoding bitrate)
MPEG-2 TS over UDP/RTP, unicast, and multicast streaming Configurable packet size: (2-7)x188Bytes MULTIPLEXING SPECIFICATIONS
Maximum PID Remapping 180 input per channel PID remapping by automatically or manually Accurate PCR adjusting PSI/SI SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert |
||
|
Application:
|
Digital TV Broadcasting System
Digital TV Programs Transmission Hotel TV System Head-end system of Digital TV branch network
CATV Broadcasting system
Edge side of Digital TV backbone network |
||
|
GENERAL OPTIONS
|
CONTROLLING AND MONITORING
Connector: 1*RJ-45, 10/100 Base-T (NMS interface) Remote control: by NMS Local control: keyboard on front panel, LCD display
PHYSICAL AND POWER Voltage: 90~260VAC, 50/60Hz Consumption: 25W Operating temperature: 0~50°C
Dimensions: 482mm(W)*455mm(D)*45mm(H) Weight: 4Kg |
||
