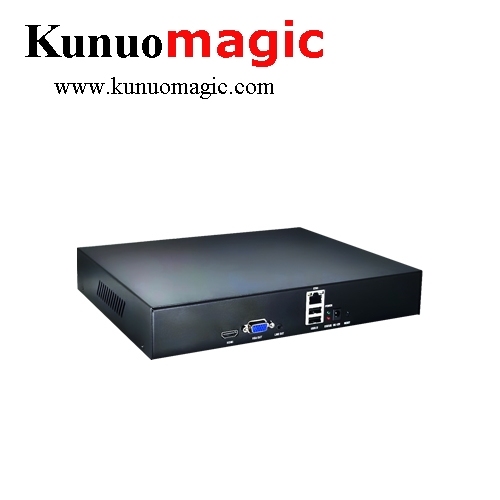

| Device model | KUNUOMAGIC |
| Network video input protocol | HTTP/RTSP/RTMP/RTMPS/RTP/UDP-TS |
| Network video output protocol | HTTP-FLV/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/ONVIF |
| Input resolution | 1080P\1080I\720P,1600x1200\1400x1050\1440x900\1280x1024\1280x960\1280x800\1024x768\800x600 etc. |
| Output Resolution | 1920×1080/1280×720/1024×576/960×540/850×480/720×576/720×540/720×480/720×404/704×576/640×480/640×360 etc. Rate |
| Video formats | H264/AVC High/Main/Baseline Profile, H265/HEVC Main Profile MJPEG/JPEG Baseline |
| Input Resolution | 1080P/1080I/720P/1600*1200/1400*1050/1440*900/1280*1024/1280*960/1280*800/1024*768/800*600, etc. |
| Output Resolution | 1920*1080/1280*720/1024*576/960*540/850*480/720*576/720*540/720*480/720*404/704*576/640*480/640*360 etc. Rate |
| Ethernet | 1000M, RJ45 |
| Input video encoding format | H.264/H.265 encoding |
| Output video encoding format | H.264/H.265 encoding |
| Input audio encoding format | AAC/G.711/MP3/MP2/AC3 |
| Output audio encoding format | AAC |
| Maximum number of network video channels | 20 |
| Maximum total code rate | 40Mbit (specifically, it will vary due to different protocols and encoding formats) |
| Video recording | Support 1 maximum 16TB hard drive |
| Control mode | The network - based management mode automatically obtains IP addresses and can be upgraded remotely |
| Remote management | Support remote modification of device parameters and remote playback of device recordings |
| Language | Chinese and English control interface |
| Operating temperature | -10 to 70 ℃ |
| Relative Humidity | 5% to 90%, non-condensing |
| Dimensions | 27x4.5x21.6cm |
| Weight | 91g |
| Power adapter | Input: 100-240V 50/60Hz AC, Output: 12V DC 2A |
