Name: 16 in 1 Agile Modulator 16-channel HDMI Agile Adjacent Frequency Modulators
Brand: Top Provider of Digital TV&IPTV Video Streaming Media System

keyword:16 in 1 Agile Modulator
Input:16*HDMI
Output Frequency:45~860 MHz
Frequency Stability:± 5 dB
A / V Ratio:≥ 35 dB
Output Level:110dBμV (Adj.)
Test Point:-20 dB

GET A QUOTE

Description

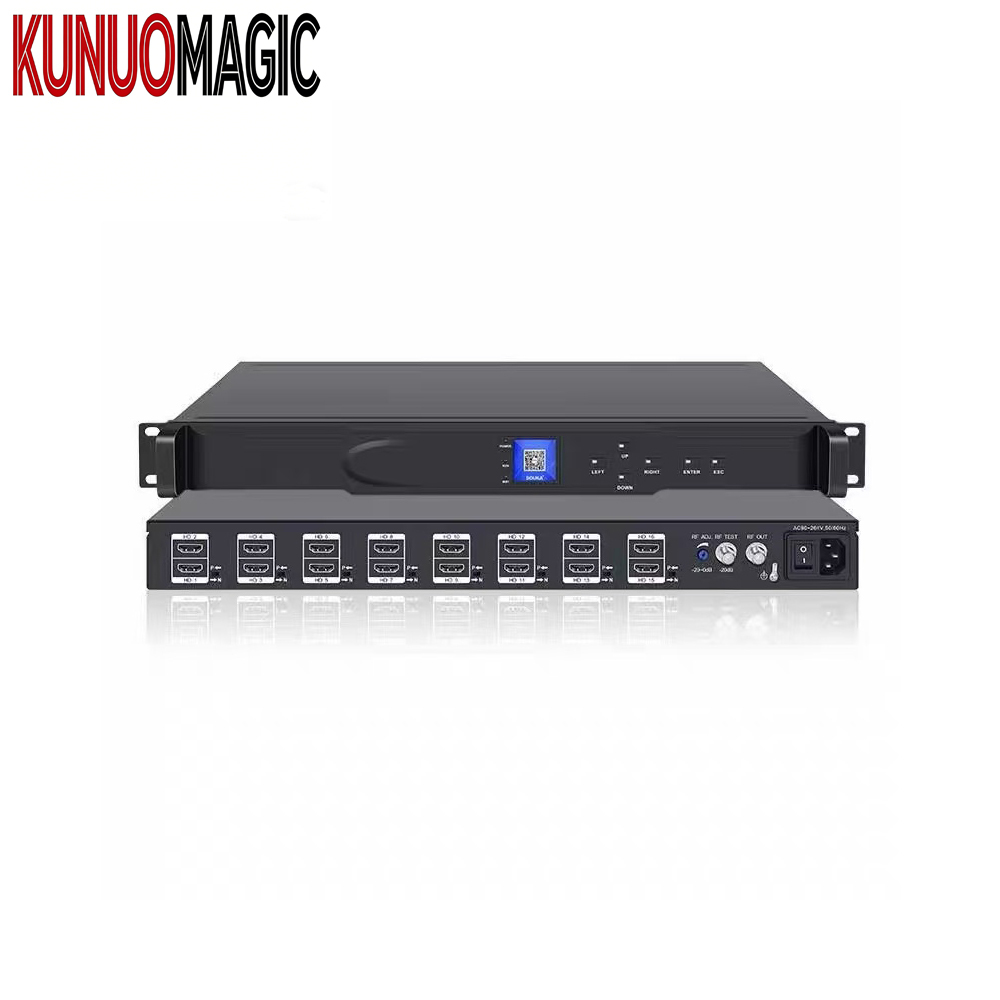

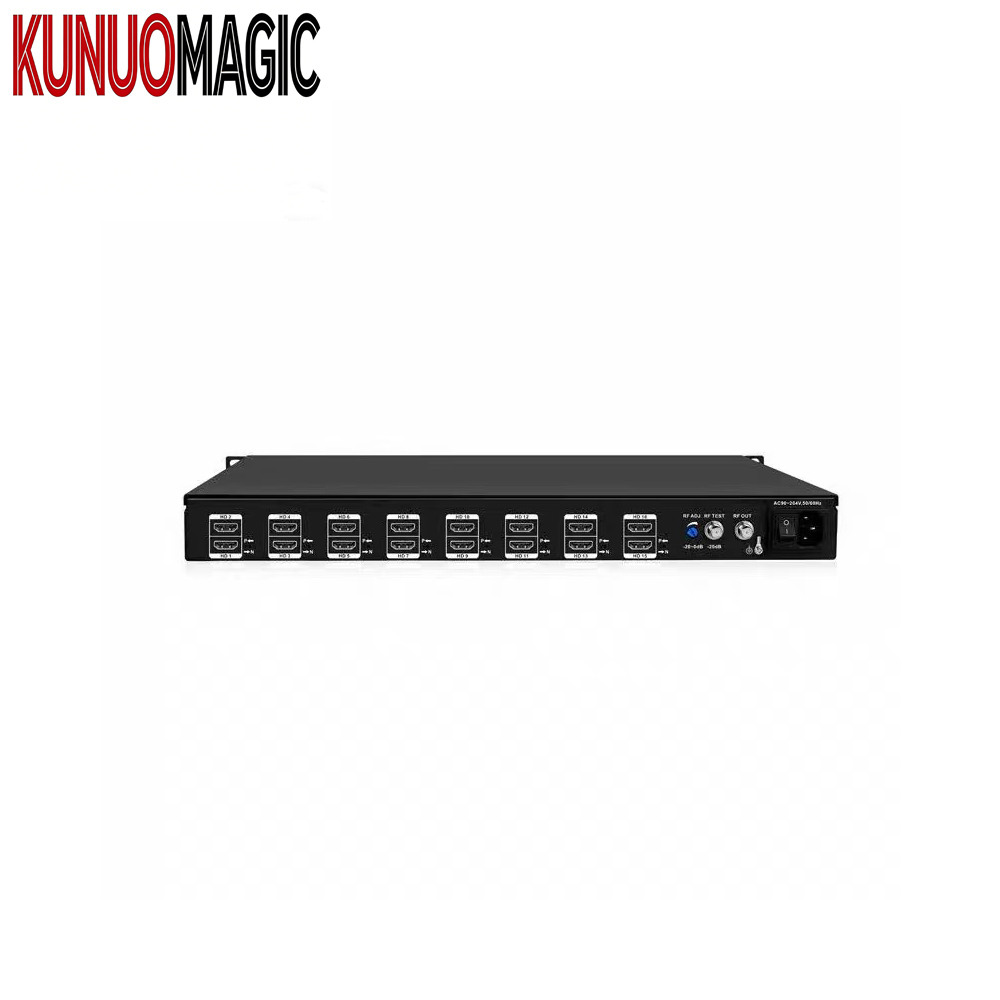

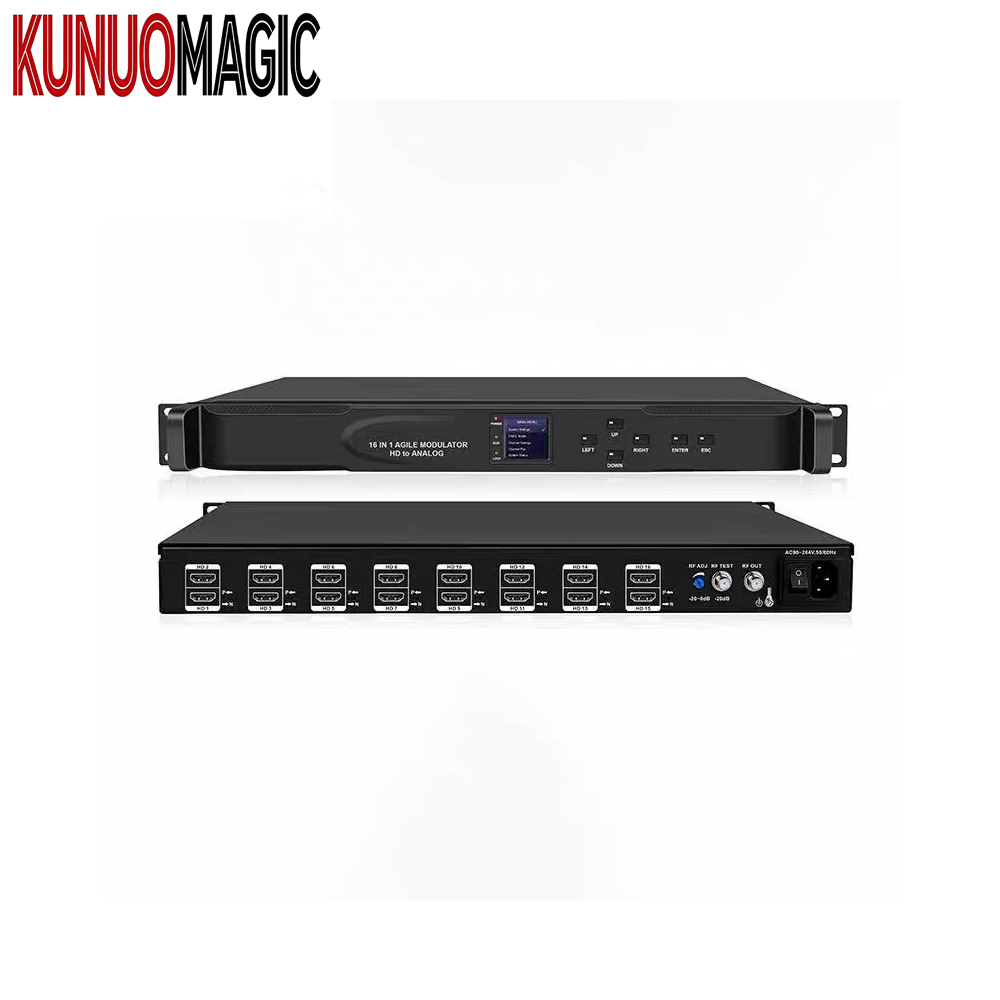

YDS8816HA 16 IN 1 HDMI to ANALOG MODULATOR

The YDS8816HA is developed specifically for the commercial AV distribution market. It takes in 16 HDMI signals and then modulates the HDMI signals into any analog channels, providing an easy way to distribute high definition signals to the old TV systems. With pre-programmed channel list and its agile ability, the operators can set up the modulator intuitively and easily.

FEATURES
1. Converts HDMI video and audio signals to analogy NTSC or PAL channel
2. Rack mountable 1RU rack space with less space and less shipping cost
3. High picture quality thanks to the 16 HDMI input
4. Internal fans cooling system for long life span

INPUT
Input Connector	HDMI*16
VIDEO	Input Resolution	19201080_60P; 19201080_50P; 1920*1080_60i;
		19201080_50i; 1280720_60P; 1280*720_50P
OUTPUT
RF	Output Connector	F-Female
	Output Frequency	45 ~ 870 MHz
	Output Level	105dBμV
	Adjust Range	0 ~ 20dB
	Output-band Rejection	≥ 60dB

Download
