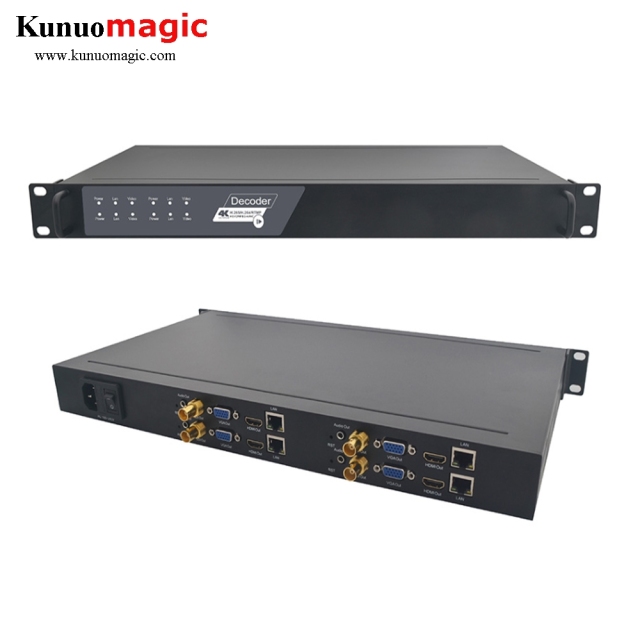

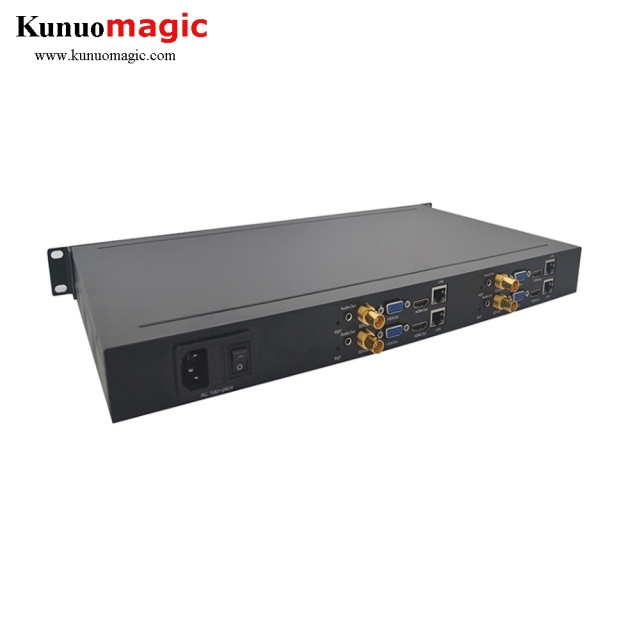

1U H.265 4K HDMI/SDI/VGA/CVBS Video Decoder - This 1U IP Video Decoder max supports with 4PCs card install, by receive the HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) stream from our HDMI/VGA/SDI encoder or media streaming server, with H.265 and H.264 video & audio decoding, then output HDMI, SDI, VGA, CVBS and L/R stereo audio. Its high integration and cost-effective design make this device widely used in variety of field such as advertisement display, CCTV, long distance video transfer, etc.
Product features
1. Embedded HiLinux System, stable and effective, 7 x 24h working time.
2. Friendly Web Control UI, default IP is 192.168.1.169.
3. Support HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) streaming decoding.
4. Support output resolution - 3840×2160@30fps, 1080P/1080I/720P@60FPS, etc.
5. Support Text and image insert as OSD output.
6. With English control panel & language customizable.
7. Support H.265/H.264 baseline /main /high profile decoding.
8. Support firmware upgrade.
9. Support remote control via router port forward.
Application
1. Long distance video transfer.
2. Internet TV (IPTV) HD capture system
3. Internet video conference front-end capture
4. Digital signage HD streaming server
5. Teaching broadcast
6. Network monitoring system platform front-end capture
|
Interfaces |
|
|
HDMI Output |
3840*2160P@30/1440P@30/1080P@60/1080I@60/1080P@50/1080I@50 |
|
SDI/VGA Output |
1080P@60/1080I@60/1080P@50/1080I@50 |
|
CVBS Output |
PAL 720*576 & NTSC 720*480 |
|
Audio Output |
HDMI /SDI embed audio & External Analog audio |
|
Ethernet |
1000Mbps, RJ-45 |
|
WiFi |
Option – 2.4G |
|
Video Decoding |
|
|
Video Format |
H.264/AVC High/Main/Baseline Profile H.265/HEVC main profile MJPEG/JPEG baseline |
|
Video Resolution |
Max support 3840×2160@30fps, 1080P@60fps |
|
Video Bitrate |
0.1~32Mbps |
|
Video FPS |
1-60 for 1080P and below, 4K@30fps |
|
Streaming Protocols |
HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) ONVIF |
|
Audio Encoding |
|
|
Audio Format |
AAC/AAC+/AAC++/MP3/MP2/AC3 G711 |
|
Sample Rates |
8000/11250/22500/44100/48000Hz |
|
Audio Channels |
L/R Stereo |
|
System |
|
|
Control Method |
Web based management – IP 192.168.1.169 |
|
Language |
Chinese-English control interface |
|
Firmware |
Ethernet software upgrade |
|
Working environment |
|
|
Operating temperature |
-10 to 70 deg C |
|
Storage temperature |
–20 to 80 deg C |
|
Relative Humidity |
5% to 90% non-condensing |
|
Miscellaneous |
|
|
Dimension (L× W× H) |
1U 483 (L) *250 (W) *44.5 (H) mm |
|
Approx weight |
4.5kgs |
|
Power adapter |
AC input 100-240V 50/60Hz DC output 12V 8.5A |
