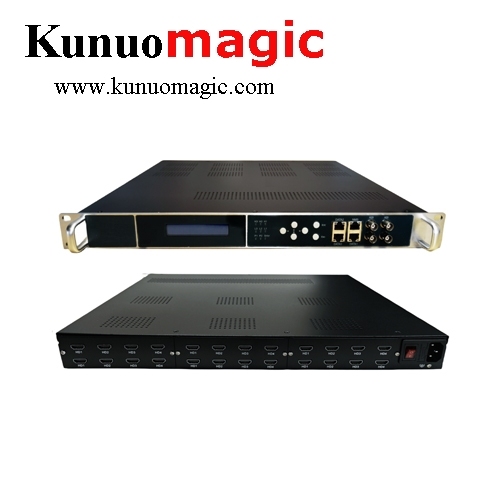

4 8 12 16 20 24 HDMI to HTTP HLS SRT IP Live Streaming Video Encoder H.264 1080P IPTV Multi Channel Encoder

Summary
YDS8824E is a professional high integration device which includes encoding, multiplexing. It supports 4/8/12/16/20/24 HDMI input, MPEG-4 AVC/H.264 encoding, 2 ASI input, IP input, ASI output, IP stream output (SRT/HLS/HTTP/RTMP/UDP/RTP/RTSP ). In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as IPTV live streaming multicast, cable TV digital head-end, digital TV broadcasting etc.

Key Features
* Support QR code, LOGO, OSD insertion for every local channel

* 4/8/12/16/20/24 HDMI input, support HDCP

* Support MPEG-4 AVC/H.264 Video encoding

* Support MPEG1 Layer2, LC-AAC, HE-AAC v1&v2, AC3 audio encoding

* 4/8/12/16/20/24 SPTS and 4 MPTS output, IP output over SRT/HLS/HTTP/RTMP/UDP/RTP/RTSP protocol, support multicast and unicast

* 2 ASI inputs

* 2 ASI Independent output (optional) as copy of 4MPTS

* Support “Null PKT Filter” function

* Support PID Remapping/ PCR accurate adjusting

* LCD, key function

* Control via web management, and easy updates via web
Specification

Input	4/8/12/16/20/24 HD MI (support HDCP)
	2 ASI input
	IP input over UDP/RTP/RTSP protocol, 1000M
Output	2 ASI output
	IP output: 4/8/12/16/20/24 SPTS and 4 MPTS output, IP output over UDP and SRT/HLS/HTTP/RTMP/UDP/RTP/RTSP protocol, support multicast (for UDP only) and unicast
Video	Encoding	MPEG-4 AVC/H.264
	Resolution	Input: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i,
		Output: 1920×1080_60P, 1920×1080_50P, 1280×720_60P, 1280×720_50P, 720×576_50P, 720×480_60P 1920×1080_30P,1920×1080_25P, 1280×720_30P,1280×720_25P, 720x576_25P,720x480_30P
	Bit-rate	1Mbps~15Mbps（each channel)
	Rate Control	CBR
Audio	Encoding	MPEG-1 Layer 2, LC-AAC, HE-AAC v1&v2, AC3
	Sampling rate	48Khz
	Bit-rate	64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
	Resolution	24-bit
	Audio Gain	0-255 Adjustable
Multiplexing	Maximum PID Remapping	180 output PIDS per channel
	Function	PID remapping ( automatically or manually)
		Accurate PCR adjusting
System function	Network management(WEB)
	Chinese and English language
	Ethernet software upgrade
Miscellaneous	Dimension (W×L×H)	482mm×480mm×45mm
	Environment	0~45℃(work)；-20~80℃(storage)
	Power requirements	AC100~240V，50/60Hz
